Description

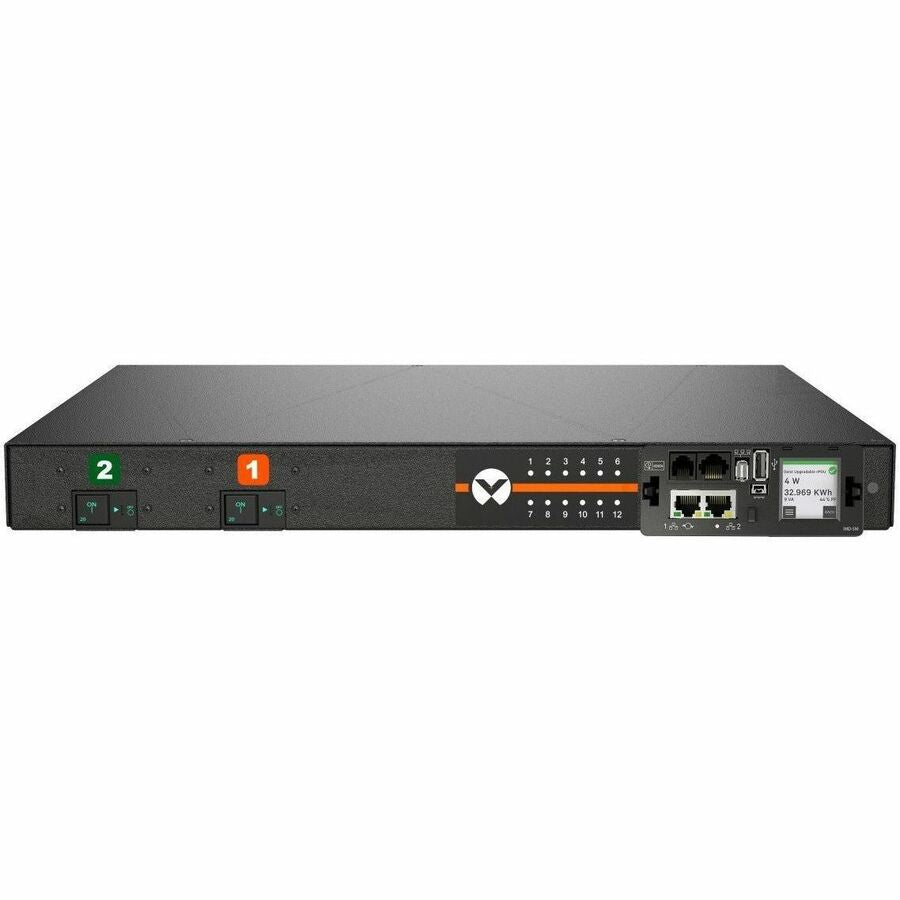

The Vertiv VP7N31A1 PowerIT™ Switched rPDU delivers reliable power distribution with individual outlet-level switching and advanced power monitoring. Designed for horizontal rack installation, this unit features 12 combination C13/C19 outlets and a 10-foot cord with an L6-30P plug. Environmental monitoring, high-visibility LCD display, and daisy-chain connectivity with RSTP make it ideal for dynamic data center environments. Upgradeable with hot-swap IMD technology for long-term scalability.
| Specification | Details |
|---|---|
| Model Number | VP7N31A1 |
| Product Type | Switched Rack PDU (rPDU) |
| Input Voltage | 200-240V |
| Input Current | 30A |
| Power Capacity | 4.9kW @ 208V |
| Form Factor | 19" Horizontal Rackmount |

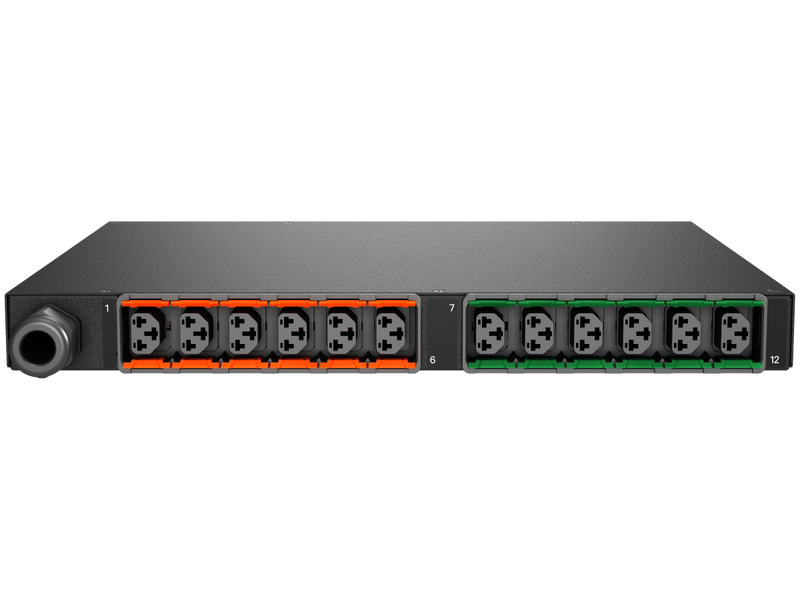

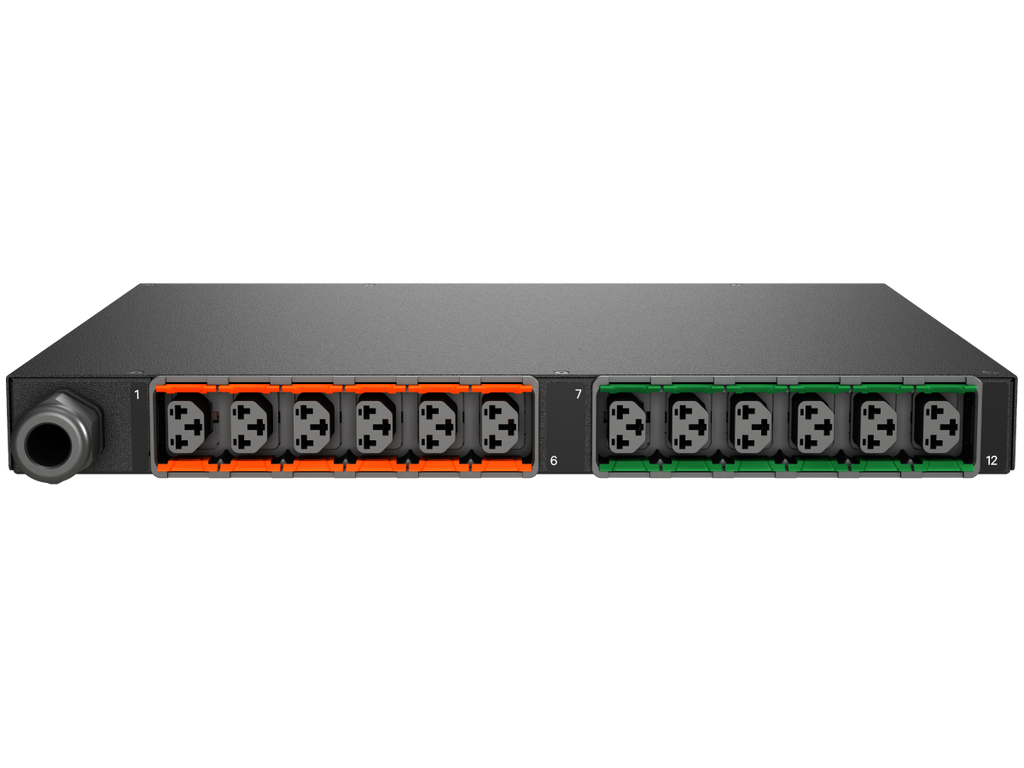

| Outlets | 12 x Combination C13/C19 |
| Outlet Groups | 2 Circuits (Banks of 6 – Orange & Green) |
| Monitoring | Input & Outlet Monitoring (kWh, W, VA, PF, V, A) |
| Switching | Individual Outlet Switching |
| Environmental Sensors | Optional (Supports up to 16 sensors) |
| Display | Auto-oriented LCD touchscreen |
| Network Connectivity | Dual Gigabit Ethernet, Daisy-Chain Ready |
| Protocols Supported | SNMP (v1/2c/3), Modbus TCP, SSH, HTTPS & more |
| Plug Type | NEMA L6-30P (10ft cord, 10/3 AWG) |
| Enclosure Color | Black, Powder-Coated Steel |
| Certifications | UL 62368-1, RoHS, FCC Class A |
| Dimensions (HxWxD) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Weight | 14 lbs (6.35 kg) |
| Warranty | 5 years (with registration), otherwise 3 years |
| Country of Origin | USA – TAA & BAA COTS Compliant |
