Description
The Vertiv VP7N41A0 PowerIT™ Switched rPDU delivers robust, outlet-level remote control and power monitoring for critical IT applications. Designed for high availability environments, it features 12 C13/C19 combination outlets, input and outlet metering, environmental sensor support, and fault-tolerant daisy chaining for up to 40 devices. The 35A, 208V Delta unit comes in a horizontal 19-inch rackmount form factor with a 10ft power cord and hot-swappable upgrade capability.
| Specification | Details |
|---|---|
| Model | VP7N41A0 |
| Form Factor | Horizontal, 19 in / 483 mm |
| Input Voltage | 200–240V Delta |
| Input Current | 35A x 3 Phase (Delta) |
| Power Capacity | 10.0 kW (208V) |
| Frequency | 50/60Hz |
| Plug Type | California Style 3P+E (Twistlock, 50A, 250V) |

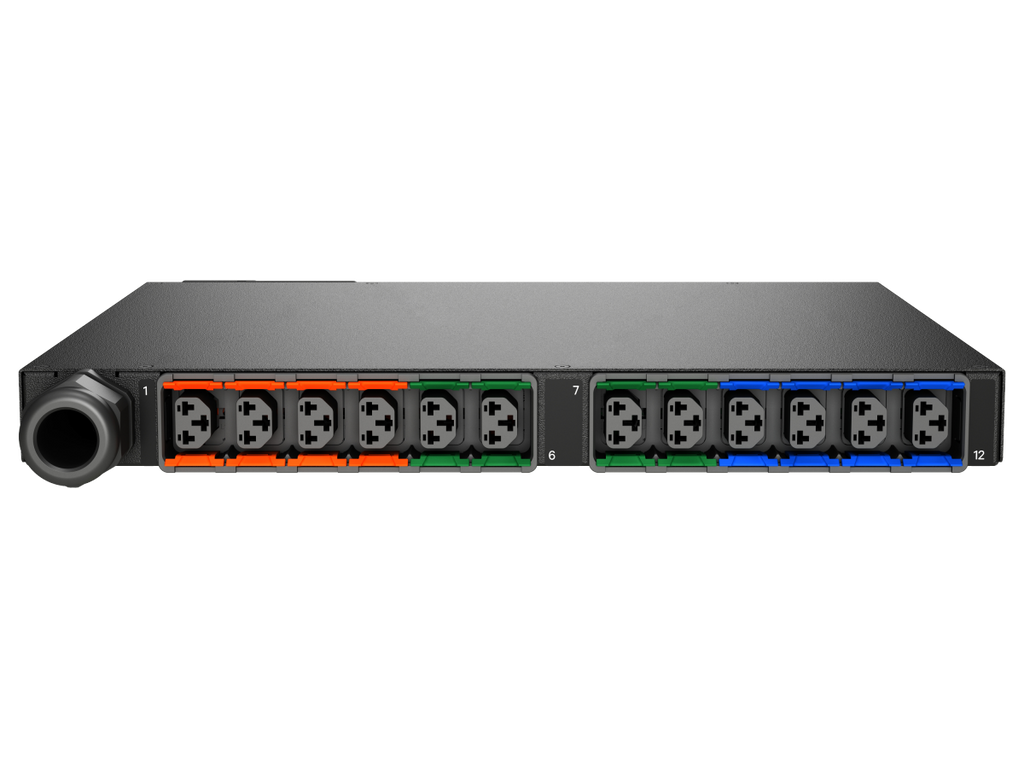

| Outlets | 12 Combination C13/C19 |
| Outlet Groups | 3 Circuits (4 outlets per circuit; Orange, Green, Blue) |
| Switching | Individual Outlet Switching |
| Monitoring | Input, Outlet, Circuit-Level (kWh, W, VA, PF, V, A) |
| Breaker Protection | (3) 20A Double Pole Magnetic Breakers (10kAIC Rated) |
| Network Connectivity | Dual Gigabit Ethernet |
| Protocols Supported | SNMP (v1/v2c/v3), HTTP/S, SSH, RADIUS, Modbus TCP, etc. |
| Display | LCD Touchscreen, Auto-Oriented |
| Environmental Sensors | Supports up to 16 (optional) |
| Daisy Chain Support | Up to 40 units |
| Mounting | Adjustable Mount Brackets Included |
| Chassis | Steel, Black Powder Coat Finish |
| Certifications | UL/c-UL 62368-1, FCC Class A, RoHS |
| Operating Temperature | Up to 60°C / 140°F |
| Dimensions (HxWxD) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Weight | 18 lbs (8.16 kg) |
| Warranty | 5-Year Limited (with registration) |
| Country of Origin | USA; TAA and BAA COTS Compliant |
