Vertiv VP7N52A0 Switched rPDU, 50A 208V Delta, 12 C13/C19 Outlets, 2U Horizontal
Vertiv VP7N52A0 Switched rPDU, 50A 208V Delta, 12 C13/C19 Outlets, 2U Horizontal
Roll over image to zoom in Click on image to zoom
Vertiv VP7N52A0 Switched rPDU, 50A 208V Delta, 12 C13/C19 Outlets, 2U Horizontal
Vertiv VP7N52A0 Switched rPDU, 50A 208V Delta, 12 C13/C19 Outlets, 2U Horizontal

Vertiv VP7N52A0 Switched rPDU, 50A 208V Delta, 12 C13/C19 Outlets, 2U Horizontal

Save $938.01
VertivSKU: VP7N52A0
Vertiv Authorized
LG Authorized exclamation What makes this a Top Quality Store?

Stores earn Googleā€™s Top Quality Store badge by offering a positive experience for customers. This may include the offer of fast shipping and easy returns, positive user ratings, and other factors. Learn more
Price:
$2,363.99 $3,302.00

Shipping calculated at checkout

Stock:
Only 0 units left

Free Standard Shipping

Description

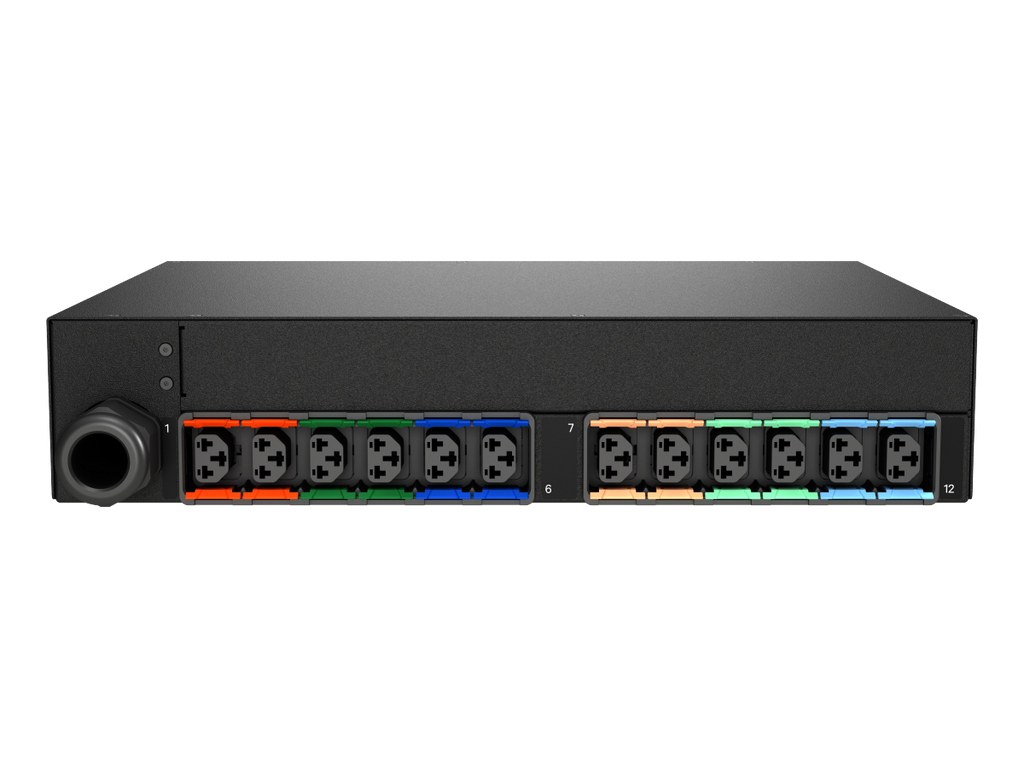

The Vertiv VP7N52A0 is a 2U horizontal switched rPDU delivering 50A 208V DELTA power with advanced outlet-level monitoring and remote switching. Featuring 12 combination C13/C19 outlets, a 10ft power cord with a 3P+E CA plug, and support for environmental monitoring via optional sensors, this PDU is ideal for data centers requiring reliable, intelligent power distribution. Built with hot-swappable monitoring modules and fault-tolerant daisy chaining, it ensures high uptime and scalability for modern IT infrastructure.

Specification Details
Model Number VP7N52A0
Form Factor 2U Horizontal, 19-inch Recess Mount
Power Rating 50A, 208V Delta, 14.4kW
Input Plug Type 3P+E CA Twistlock, 10ft (3m) Cord
Outlets (12) Combination C13/C19
Outlet Control Switched, Outlet-Level
Monitoring Input/Outlet Power, Breaker Monitoring, Environmental (optional sensors)
Breaker Protection (6) 20A Double Pole Magnetic Breakers
Networking Dual Gigabit Ethernet, Daisy-Chain up to 40 units
Protocols SNMP, Modbus TCP, RADIUS, TACACS+, HTTP/S, SSH, Syslog, etc.
Indicators & Display LCD Touchscreen with 12 LED Indicators
Construction Black Powder-Coated Heavy Steel
Operating Temp. Max 60Ā°C / 140Ā°F
Certifications UL 62368-1, RoHS, FCC Part 15 Class A
Compliance TAA & Buy American Act (COTS)
Dimensions (HxWxD) 3.39in x 17in x 12in (87mm x 432mm x 305mm)
Weight 20 lbs (9.07 kg)
Warranty 5 Years (with registration), otherwise 3 Years
