Description

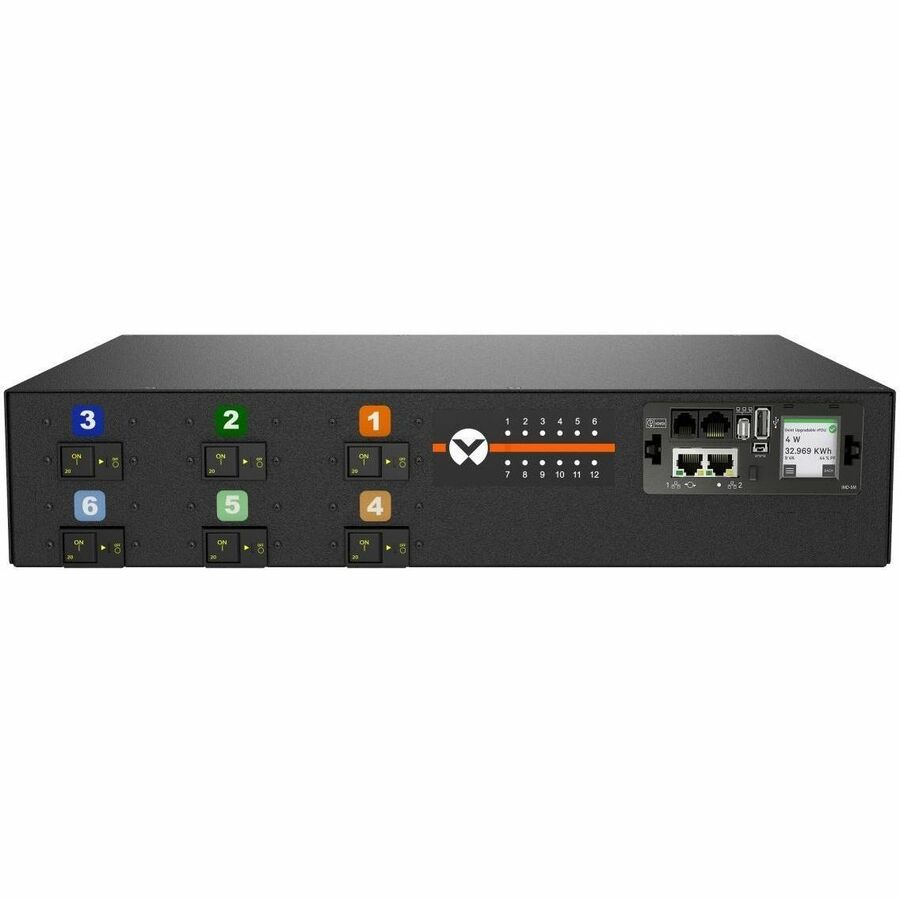

The Vertiv Geist VP7N62A1 is a horizontal switched rack PDU (rPDU) delivering reliable 60A, 208V 3-phase delta power with a 17.2kW capacity. Featuring 12 combination C13/C19 outlets, this 2U horizontal unit supports outlet-level switching and monitoring, enabling remote power management, environmental monitoring via optional sensors, and local status display. Daisy-chain up to 40 rPDUs with fault-tolerant Ethernet connectivity and manage your power infrastructure with precision. Includes a 10ft IP67-rated power cord with a 3P+E plug and a durable black powder coat finish.
| Specification | Details |
|---|---|
| Part Number | VP7N62A1 |
| Type | Switched rPDU |
| Monitoring | Input & Outlet level, circuit monitoring |
| Power Capacity | 60A, 208V DELTA, 17.2kW |
| Configuration | 2U Horizontal, 19in rack-mount |
| Plug Type | IEC60309 3P+E, IP67, 60A |

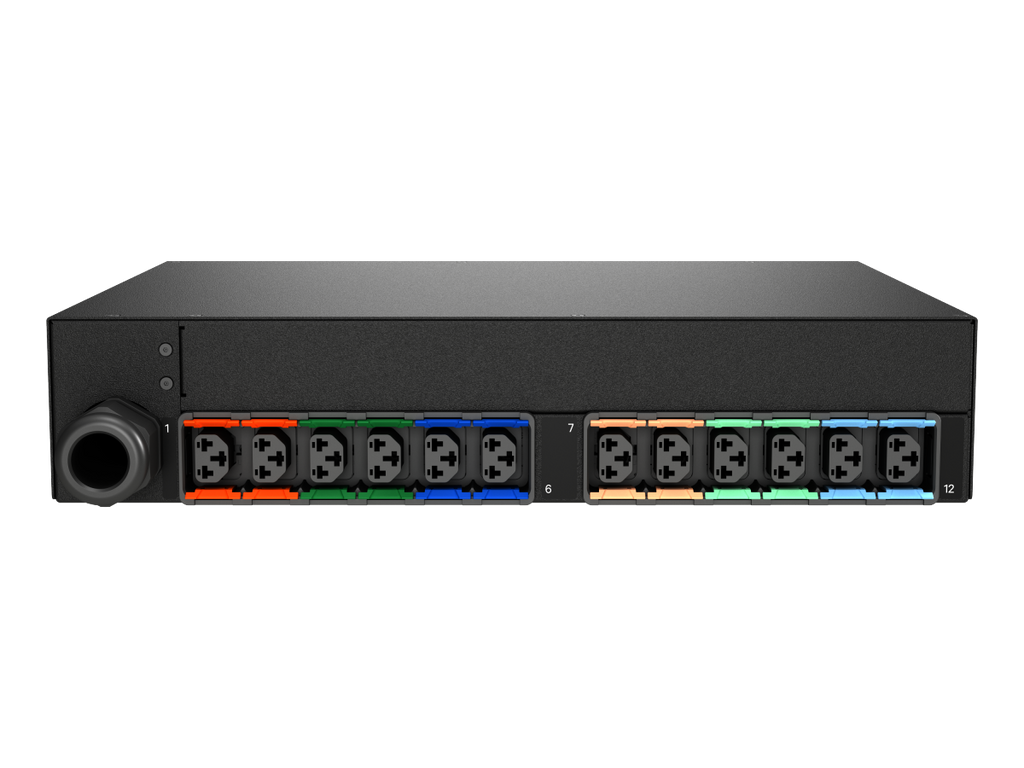

| Receptacles | 12 x Combination C13/C19 |
| Per Breaker | 2 receptacles |
| Per Phase | 4 receptacles |
| Breakers | (6) 20A Double Pole Magnetic, 10kAIC |
| Circuit Color Coding | Orange, Green, Blue, Light Orange, Light Green, Light Blue |
| Switching Functionality | Individual outlet on/off with delays/sequencing |
| Power Monitoring Accuracy | ANSI C12.1, IEC 62053-21 Compliant, 1% Accuracy |
| Network Connectivity | Dual Ethernet 10/100/1000Mbps, Daisy-chain supported |
| Protocols | SNMPv1/v2c/v3, HTTP/S, SSH, RADIUS, Modbus TCP, etc. |
| Remote Sensors Supported | Up to 16 via 1 RJ port |
| Local Interface | Auto-orienting LCD Touchscreen |
| Operating Temp Max | 60°C / 140°F |
| Enclosure | Black powder-coated steel |
| Dimensions (HxWxD) | 3.39 x 17 x 12 in (87 x 432 x 305 mm) |
| Weight | 20 lbs (9.07 kg) |
| Warranty | 5 years with registration (otherwise 3 years) |
| Certifications | UL, c-UL 62368-1, FCC Part 15 Class A, RoHS |
| Country of Origin | USA – TAA and BAA (COTS) Compliant |
