Description

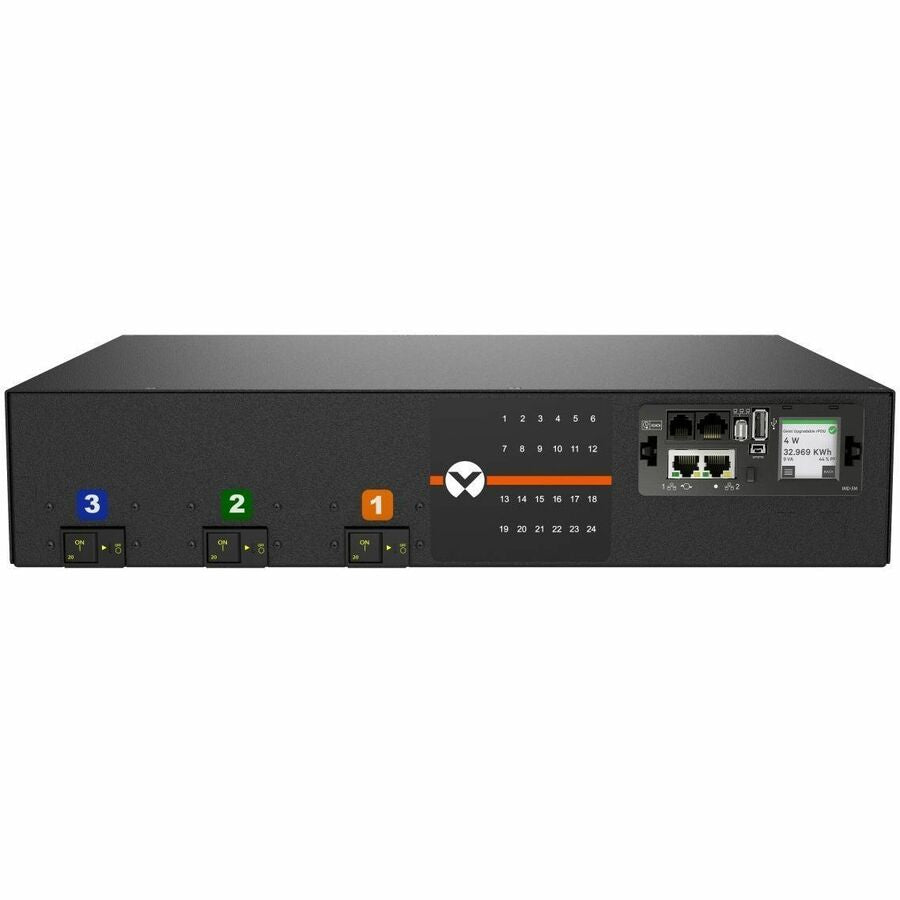

The Vertiv VP7N32A1 PowerIT™ Switched Rack PDU delivers reliable 30A, 208V power distribution with advanced outlet-level switching and monitoring. Designed for data centers demanding efficient control and visibility, this 2U horizontal rPDU features 24 mixed C13/C19 outlets and a 10ft cord with L14-30P plug. It supports environmental monitoring, daisy-chain Ethernet, and dual IP access for seamless management. Ideal for managing power-hungry IT loads with precision and remote access.
| Feature | Details |
|---|---|
| Model | VP7N32A1 |
| PDU Type | Switched, Outlet-Level Monitoring |
| Power Capacity | 30A, 208V, 5.7kW |

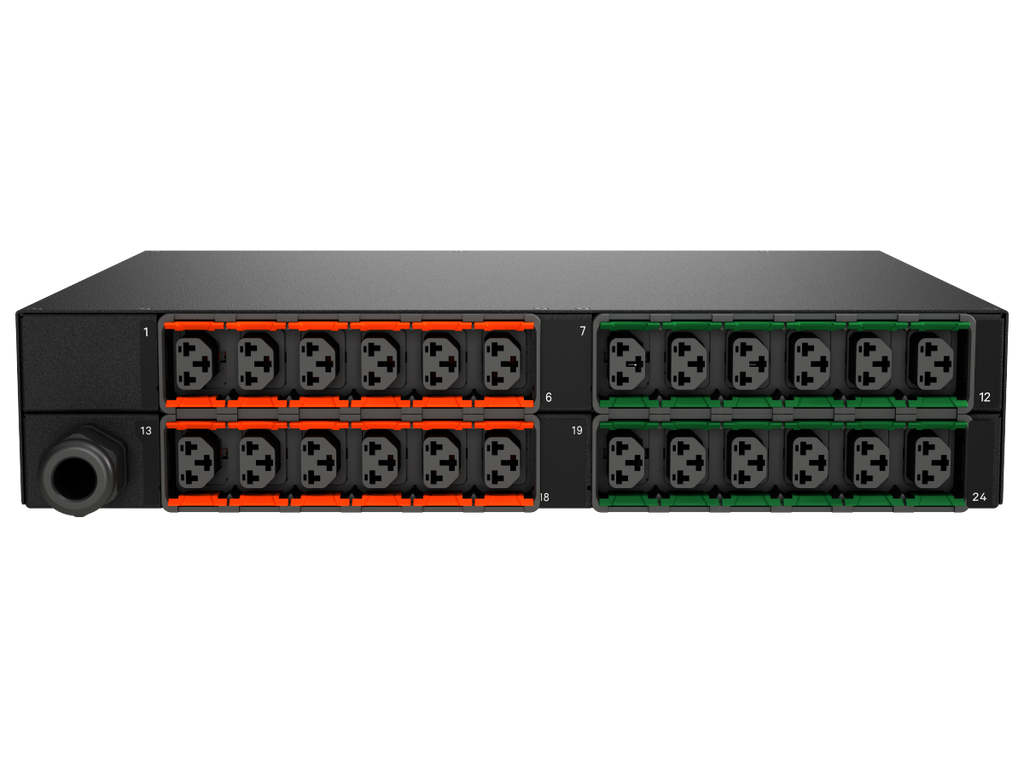

| Outlet Quantity/Type | 24 x Combination C13/C19 |
| Form Factor | Horizontal, 2U (19in / 483mm) |
| Power Cord & Plug | 10ft (3m) cord with NEMA L14-30P plug |
| Overcurrent Protection | (2) 20A Double Pole Magnetic Breakers (10kAIC Rated) |
| Monitoring Capabilities | Input/Outlet Power Monitoring, Circuit Monitoring, Environmental Sensors |
| Display | Local LCD Touchscreen with Auto-Orientation |
| Networking | Dual Ethernet (10/100/1000Mbps), Daisy-Chaining up to 50 devices |
| Protocols Supported | SNMP v1/v2c/v3, HTTPS, SSH, DHCP, Modbus TCP, Syslog, RADIUS, more |
| Remote Management | Individual Outlet Switching, Sequencing & User-Defined Delays |
| Temperature Tolerance | Up to 60°C (140°F) |
| Chassis Material/Color | Heavy Steel, Black Powder Coat |
| Certifications | UL 62368-1, c-UL, FCC Class A, RoHS |
| Warranty | 5 Years (with registration), otherwise 3 Years |
| Country of Origin | USA – TAA & BAA COTS Compliant |
| Dimensions (HxWxD) | 3.39 x 17 x 12 in (87 x 432 x 305 mm) |
| Weight | 18 lbs (8.16 kg) |
