Description

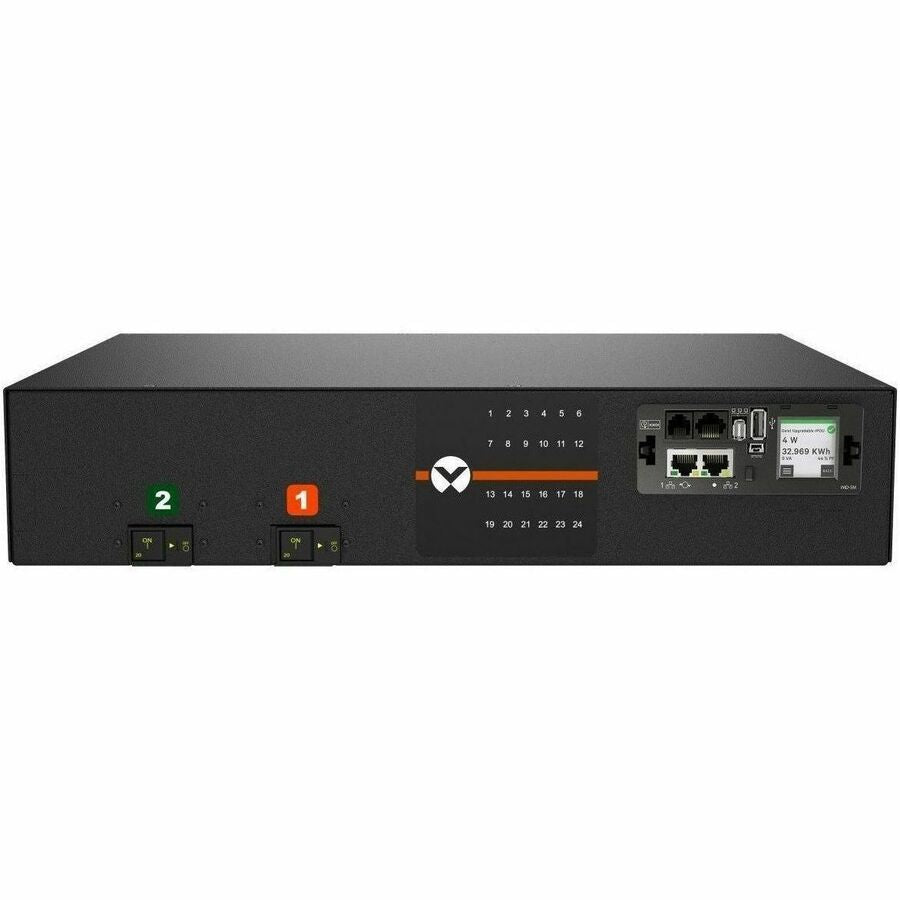

The Vertiv VP7N32A0 is a horizontal switched rack power distribution unit (rPDU) that delivers reliable 208V, 30A power with individual outlet-level control and monitoring. With 24 C13/C19 combination outlets and a 10-ft power cord featuring a locking L6-30P plug, this 4.9kW unit ensures high-availability performance in critical IT environments. Advanced features include remote outlet switching, environmental monitoring (via optional sensors), circuit-level current metering, and fault-tolerant Ethernet daisy chaining. Housed in a rugged 2U black steel chassis with a high-visibility display and dual Ethernet ports.
| Specification | Details |
|---|---|
| Model Number | VP7N32A0 |
| Power Configuration | 30A, 208V, 4.9kW |
| Form Factor | Horizontal, 2U, 19in rack-mountable |
| Input Plug Type | NEMA L6-30P Twistlock |
| Input Voltage | 200–240V |
| Input Frequency | 50/60Hz |

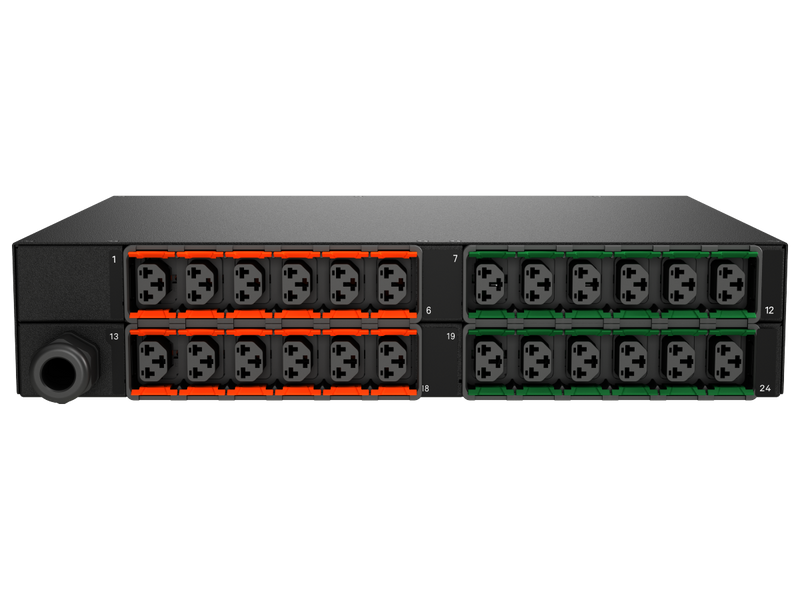

| Output Receptacles | 24 × Combo C13/C19 |
| Circuit Protection | 2 × 20A Double Pole Magnetic Breakers |
| Monitoring Capabilities | Input & Outlet Monitoring (kWh, W, VA, PF, V, A) |
| Remote Management | Switched Outlets with Sequential Start/Delay |
| Network Connectivity | Dual Ethernet (10/100/1000 Mbps) |
| Protocols Supported | SNMP (v1/v2c/v3), HTTPS, SSH, RADIUS, TACACS+ |
| Environmental Monitoring | Optional via sensor port (supports up to 16) |
| Display | High-visibility auto-orienting LCD |
| Indicators | 24 LEDs |
| Cable Length / Gauge | 10 ft / 10 AWG |
| Enclosure Finish | Black powder-coated steel |
| Compliance | UL 62368-1, RoHS, FCC Class A |
| Operating Temperature | Up to 60°C (140°F) |
| Country of Origin | USA, TAA & BAA COTS Compliant |
| Warranty | 5 years (with registration) |
| Dimensions (H x W x D) | 3.39 x 17 x 12 in (87 x 432 x 305 mm) |
| Weight | 18 lbs (8.16 kg) |
