Description

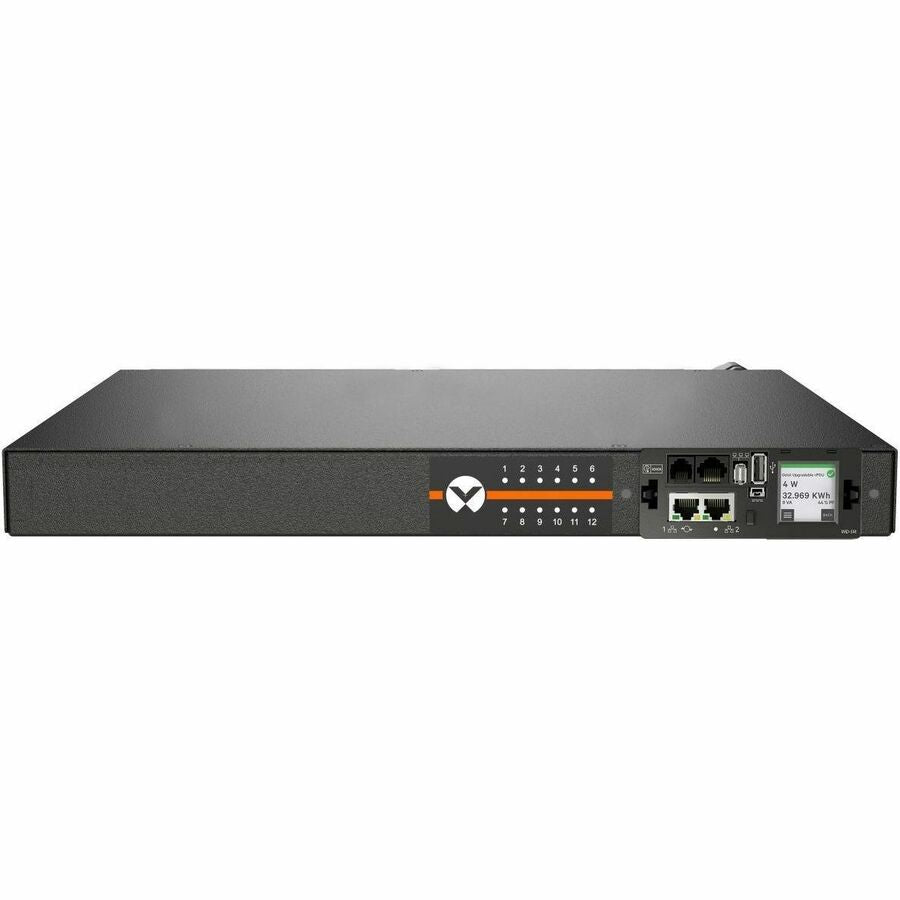

The Vertiv VP6U21A0 is a horizontal Monitored rPDU featuring outlet-level monitoring and environmental sensor support, ideal for IT environments needing detailed power usage metrics. With 12 combination C13/C19 outlets, a C20 inlet, and support for input voltages from 100V to 240V, this unit ensures maximum compatibility and visibility. Daisy-chaining, remote management via dual Ethernet, and compliance with global certifications make it a robust solution for scalable infrastructure.
| Attribute | Details |
|---|---|
| Model Number | VP6U21A0 |
| Form Factor | Horizontal Rackmount, 19 in / 483 mm |

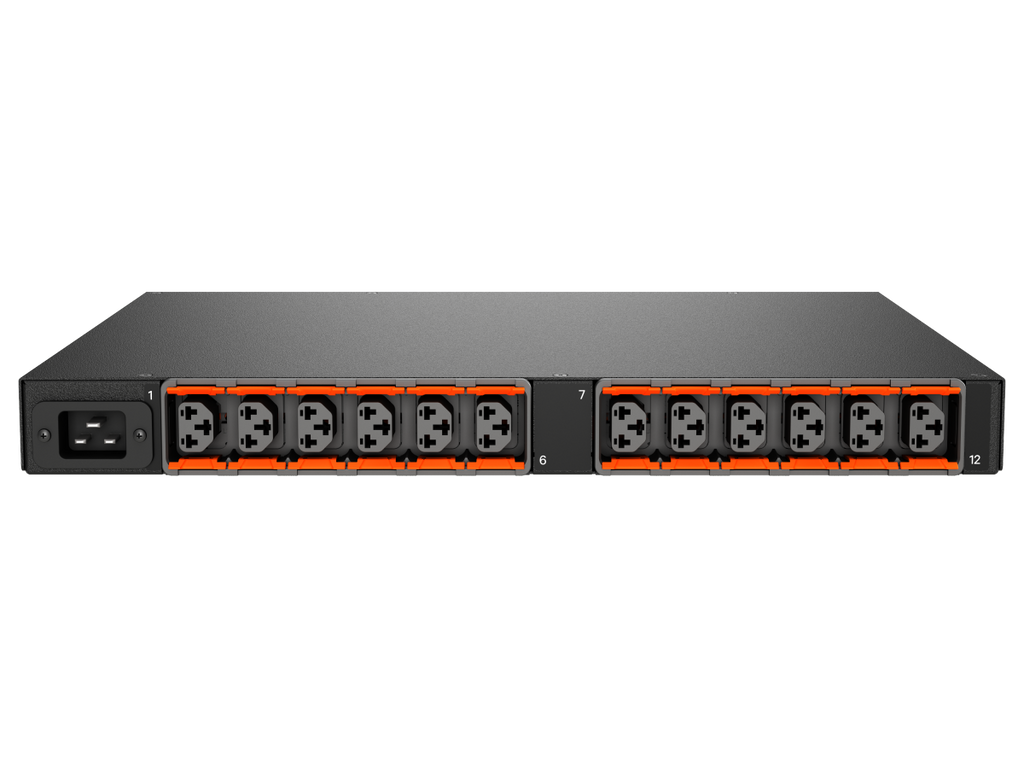

| Receptacle Type & Quantity | (12) Combination C13/C19 |
| Input Plug Type | IEC60320 C20 (cord sold separately) |
| Voltage | 100-240V |
| Current | 16A or 20A |
| Power Capacity | 1.9kW (120V), 3.3kW (208V), 3.6kW (230V) |
| Frequency | 50/60Hz |
| Monitoring | Input and Outlet Level (kWh, W, VA, PF, V, A) |
| Environmental Monitoring | Yes (via optional remote sensors, supports up to 16 sensors) |
| Network Connectivity | Dual Ethernet (10/100/1000 Mbps), supports daisy-chaining |
| Protocols Supported | SNMP (v1/v2c/v3), HTTPS, SSH, Modbus TCP, RADIUS, Syslog, and more |
| Display | LCD Touchscreen with Auto Orientation |
| Chassis Color | Black Powder Coat |
| Dimensions (HxWxD) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Weight | 10 lbs (4.54 kg) |
| Certifications | UL, c-UL, CE, UKCA, FCC Part 15 Class A, RoHS, IEC 62368-1, EN 55032/55035 |
| Warranty | 5 years (with registration within 120 days), otherwise 3 years |
