Description

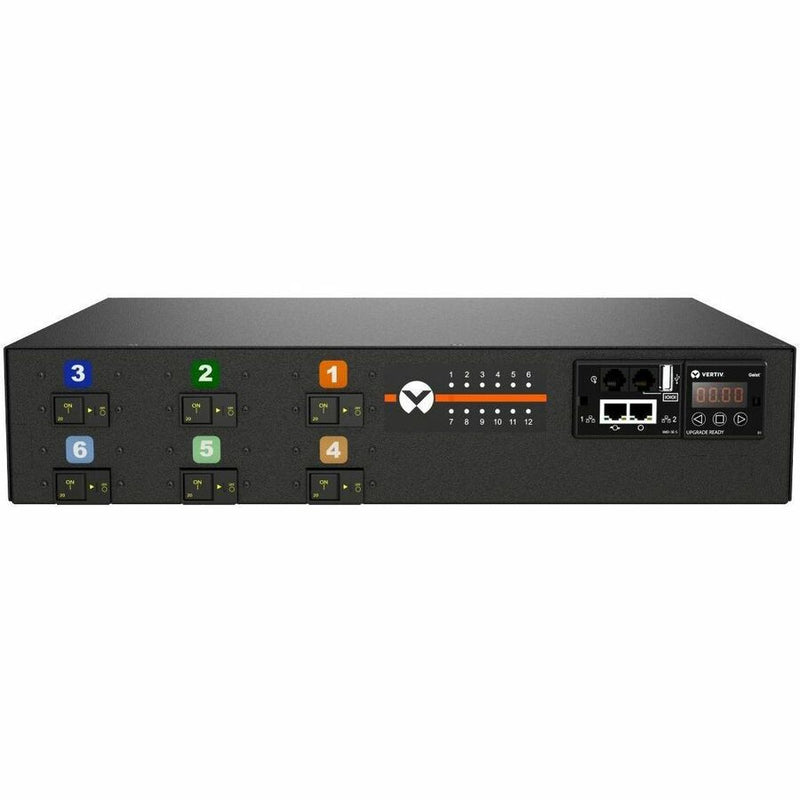

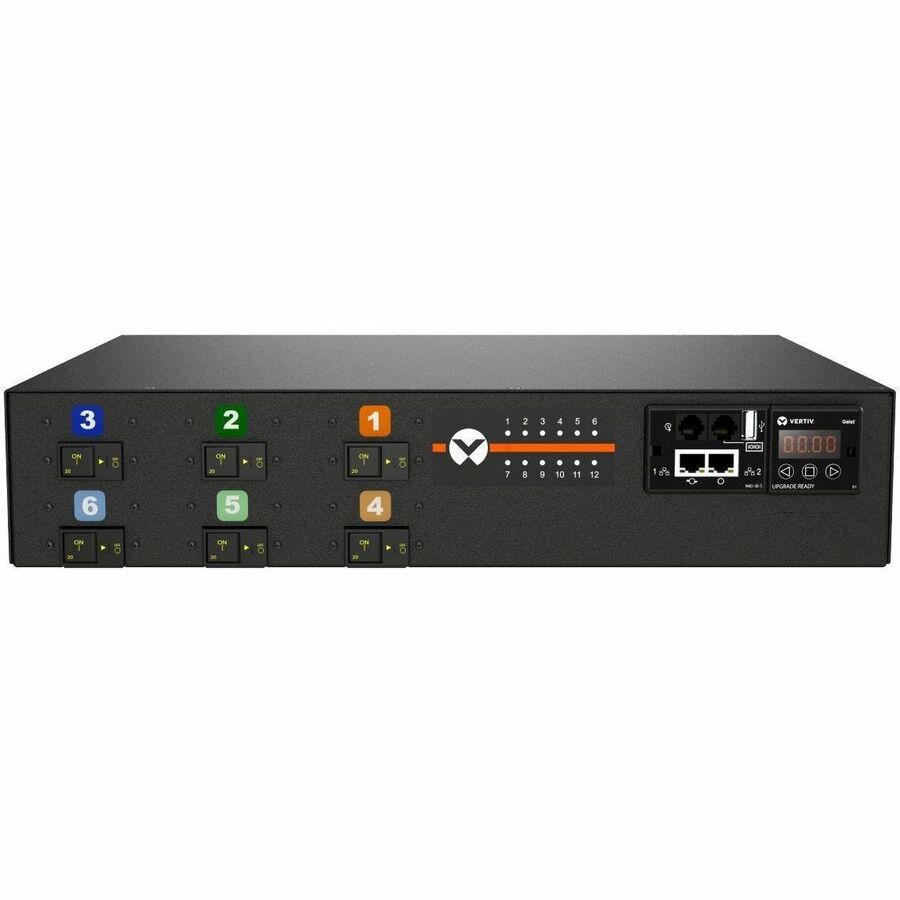

The Vertiv Geist NS30214 is a high-performance, switched rack power distribution unit (rPDU) designed for enterprise and data center environments. Featuring 12 outlets (IEC 60320 C13/C19), this unit supports 60A input current at 230V AC with a maximum power load of 17.2kW. Built with advanced unit-level monitoring, it provides real-time visibility of power metrics via a secure web interface with support for SNMP, SSH, and other protocols. With hot-swappable upgrade capability, environmental sensor support, and TAA compliance, it ensures robust and scalable power distribution for critical IT loads.
| Specification | Details |
|---|---|
| Brand | Vertiv Geist |
| Part Number | NS30214 |
| Series / Model | rPDU / MNS3EDR6-12CF18-6PS15D0H10-S |
| Type | Switched, Monitored |
| Input Voltage | 230V AC (Range: 200V - 240V) |
| Input Frequency | 60 Hz |
| Input Current | 60A |
| Input Plug | 1 × IEC 60309 3P+E |

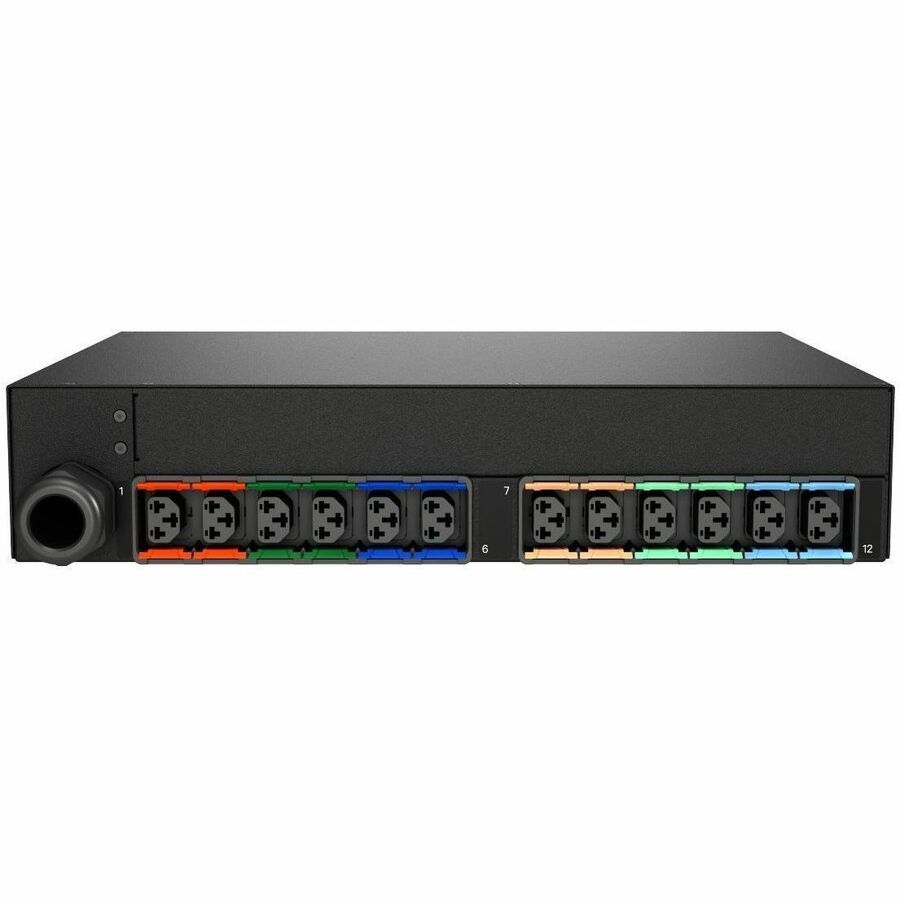

| Receptacles | 12 × IEC 60320 C13/C19 |
| Power Capacity | 17.2 kW |
| Mounting Type | Rack-mountable |
| Rack Height | 2U |
| Cord Length | 10 ft |
| Protection Type | Double Pole |
| Color | Black (Powder Coat Finish) |
| Network Ports | 1 × RJ-45 |
| Communication Protocols | SNMP v1/v2c/v3, HTTPS, SSH, RADIUS, TACACS+, JSON, etc. |
| Management Features | Remote Outlet Switching, Unit Monitoring |
| Environmental Compliance | RoHS, TAA Compliant |
| Operating Temp | Max 140°F (60°C) |
| Certifications | FCC Part 15 A, UL 60950 |
| Warranty | 3-Year Standard / 5-Year with Registration |
| Shipping Weight | 1 lb |
| Product Condition | New and Factory Fresh |
