Description

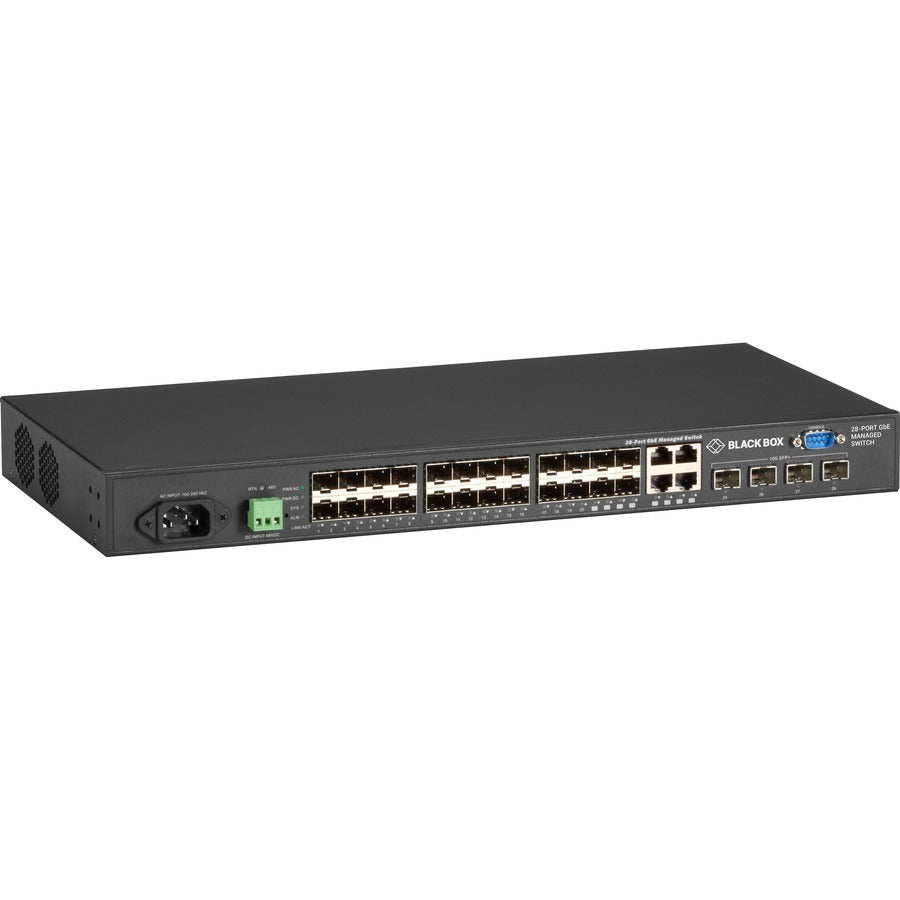

Black Box Gigabit Managed Ethernet SFP Fiber Switch - 28-Port
This advanced, fully-manageable Layer 2 switch gives you networking versatility. It features 28 high-speed fiber ports: (4) 1-Gbps/10-Gbps SFP fiber ports, (20) 100-/1000-Mbps SFP fiber ports, and (4) dual-media 100-/1000-Mbps SFP/twisted-pair ports.
This all fiber switch gives you the flexibility to select a variety of ranges with SFP transceivers.
Advanced functions in an economical package.
This switch offers advanced switching and security features normally found in more expensive switches. You'll get extensive management capabilities, greater bandwidth control, and QoS for switching in VoIP and other real-time, high-performance applications.
Pack up the trunk.
To provide more bandwidth to a specific application or segment, combine ports using the switch's 802.3ad Link Aggregate Control Protocol (LACP) capabilities. With this bandwidth aggregation feature, the combined ports create a multilink trunk for load sharing. The switch supports 14 groups with 8 ports per group.
High-level service.
The switch offers extensive Quality of Service support including prioritization, classification, scheduling, rate limitations, and more. The switch also supports eight hardware queues.
Safe and secure.
Your network is safe with this switch. It also offers MAC address filtering and VLAN capabilities so you can segregate networks.
Multiple management options.
Monitor, configure, and control the switch via its RS-232 serial port, or through Ethernet using CLI or Web-based management.
Green
The SFP Gigabit/10-Gigabit Managed Fiber Switch Eco features IEEE 802.3az energy-efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%.
SFPs
For the SFP slots, order SFP modules, such as the 850-nm Multimode Gigabit SFP Module (LFP411) and 1310-nm Single-mode Gigabit SFP Module (LFP412). For information on SFP module compatibility, contact our FREE Tech Support)
- Includes (20) 100/1000-Mbps SFP (Small Form-Factor Pluggable) fiber ports, (4) dual-media 100/1000-Mbps RJ45/SFP ports, and (4) 1/10-Gbps SFP+ fiber ports.
- Super versatility. Add a 10-Gbps fiber link when you expand your 100/1000-Mbps copper/fiber network
- Pay-as-you-grow. Add SFPs when you need them to expand your network.
