Description

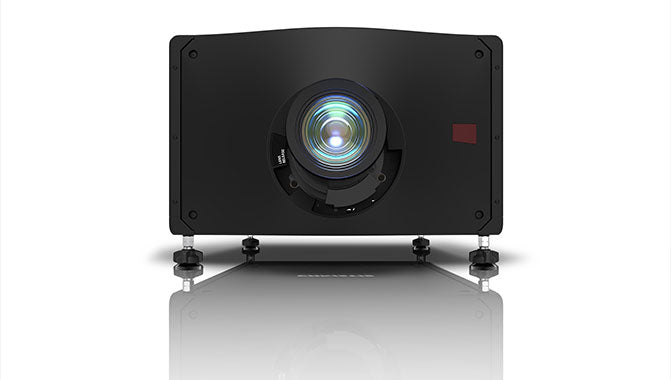

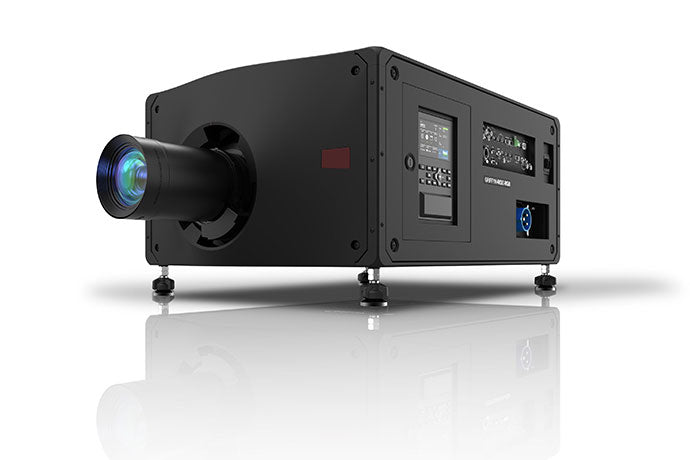

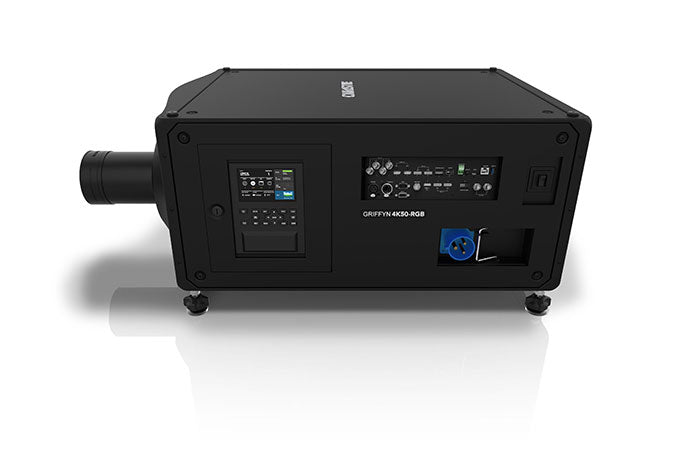

Create exceptional large-scale visuals with the Christie Griffyn 4K50-RGB, a TAA-compliant pure RGB laser projector engineered for demanding venues, projection mapping, live events, attractions, and immersive installations.
Delivering 50,000 ISO lumens and native 4K resolution, this dust-sealed 3DLP projector produces vivid color with approximately 98% Rec. 2020 coverage. Christie TruLife+ electronics, omnidirectional installation, interchangeable ILS4 lenses, and built-in warping/blending support give integrators the flexibility to create seamless, high-impact displays.
Its solid-state RGB laser illumination provides up to 25,000 hours to 50% brightness at full output, while liquid cooling supports reliable performance in professional environments. Optional Christie Mirage and Mirage Pro capabilities enable high-frame-rate 2D and 3D applications.
Technical specifications
| Specification | Details |
|---|---|
| SKU | 163-047102-02 |
| Manufacturer | Christie |
| Model | Griffyn 4K50-RGB |
| Compliance | TAA-compliant |
| Brightness | 50,000 ISO lumens / 44,500 ANSI lumens |
| Native resolution | 4096 × 2160 (4K) |
| Display technology | Dust-sealed 3DLP, 1.38 in. DMD |
| Light source | Solid-state pure RGB laser |
| Color performance | Rec. 709, P3, and ~98% Rec. 2020 coverage |
| Contrast ratio | 2,000:1 on/off; up to 5,000:1 with compatible high-contrast lens |
| Light-source life | 25,000 hours to 50% brightness at 100% output; 50,000 hours at 60% output |
| Image processing | Christie TruLife+; 1.2 Gpx/s |
| Standard frame rates | 24–60 Hz |
| Optional high-frame-rate modes | Mirage: 4K up to 120 Hz; Mirage Pro: 2K up to 480 Hz |
| Inputs | 4 × 12G-SDI, HDMI 2.1, 2 × HDMI 2.0, SDVoE, 2 × DisplayPort 1.4, 2 × DisplayPort 1.2, Christie Link |
| Control | Ethernet/Web UI, RS-232, GPIO, wired keypad |
| Installation | Omnidirectional; interchangeable ILS4 lenses |
| Warping/blending | Christie Twist; Mystique Lite included |
| Power | 200–240 VAC, 19 A, 50/60 Hz; 2,800 W typical / 3,800 W maximum |
| Cooling | Self-contained liquid cooling |
| Dimensions, without lens | 36.3 × 25 × 15 in. (922 × 635 × 380 mm) |
| Weight, without lens | 197 lb (89.3 kg) |
| Warranty | Three years parts and labor |
