Description

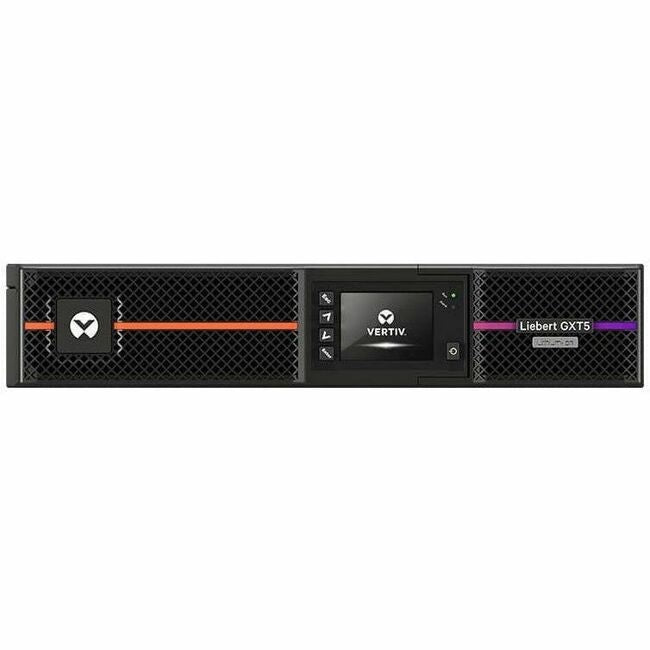

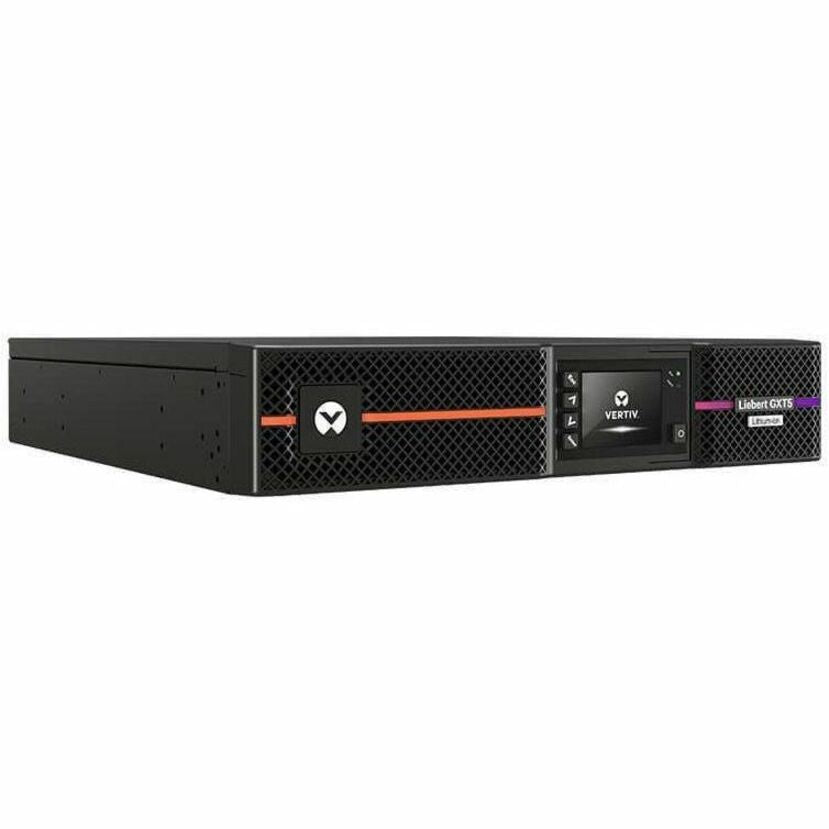

The Vertiv Liebert GXT5LI-1500LVRT2UXL is a high-performance online double-conversion UPS that delivers reliable and efficient power protection for mission-critical systems. Designed with advanced Lithium-Ion battery technology, this UPS offers up to 3 times longer battery life, reduced maintenance, and faster recharge compared to traditional VRLA systems—resulting in the lowest total cost of ownership (TCO).

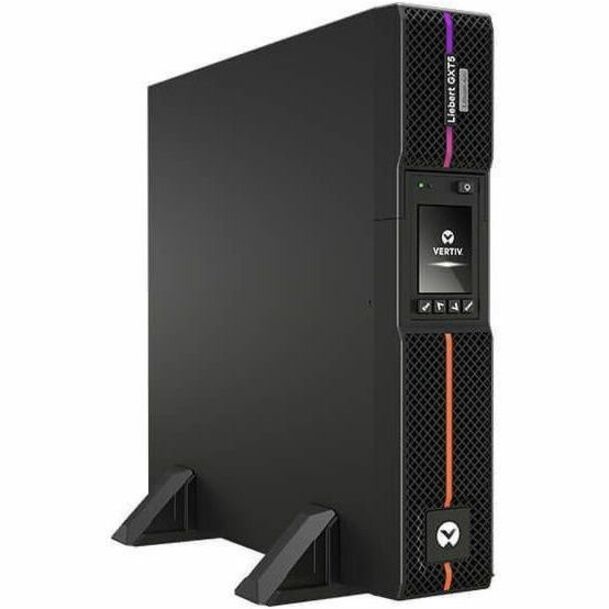

With 1500VA/1350W capacity, it features a 2U convertible rack/tower design, pure sine wave output, zero transfer time, and is ideal for edge computing, server rooms, and network closets. The integrated color LCD, SNMP/Web card support, and hot-swappable batteries enhance user convenience and system longevity. This model also includes up to 28 minutes of runtime at half load and supports optional remote monitoring via the RDU101 network card.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Part Number | GXT5LI-1500LVRT2UXL |
| Series / Model | GXT / GXT5LI-1500LVRT2UXL |
| Form Factor | Rack/Tower (2U) |
| Load Capacity | 1500VA / 1350W |
| Output Voltage | 120V |
| Input Voltage Range | 102V – 150V AC |
| Plug Type | NEMA 5-15P |

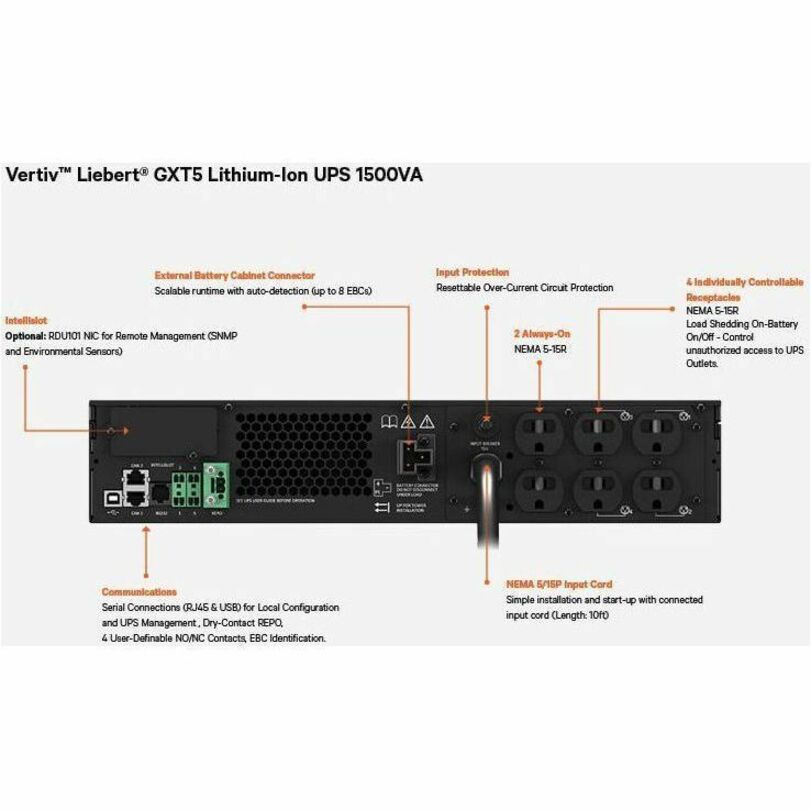

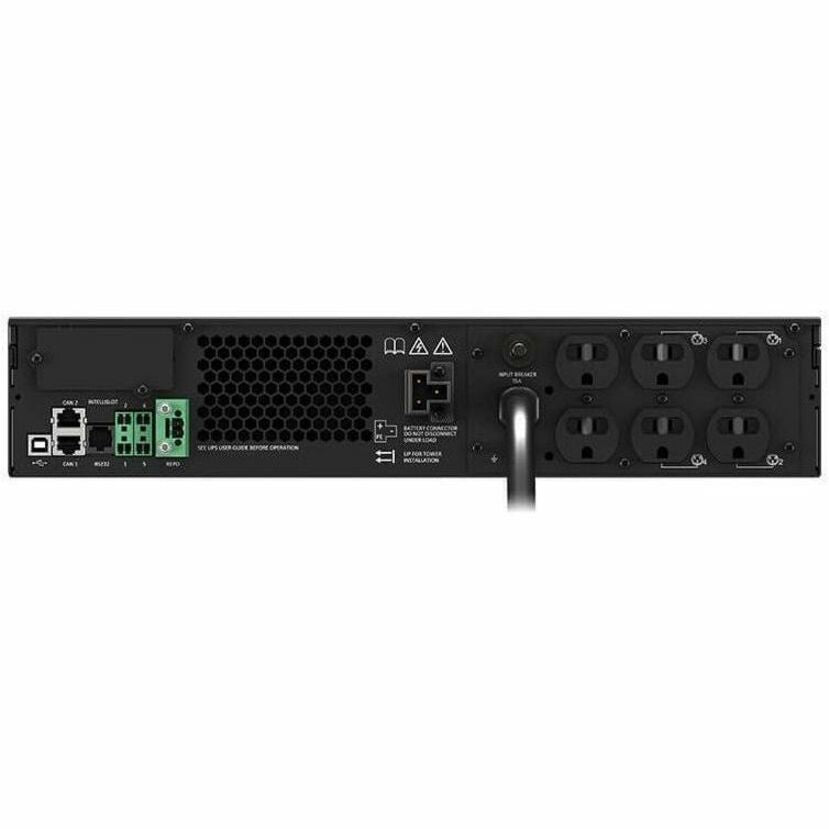

| Receptacles | 6 x NEMA 5-15R |
| Output Waveform | Pure Sine Wave |
| Transfer Time | 0 ns (Online) |
| Battery Type | Lithium-Ion |
| Runtime (Full / Half Load) | 13 min / 28 min |
| Recharge Time | 2 hours |
| Hot Swappable Battery | Yes |
| Replaceable Battery | Yes |

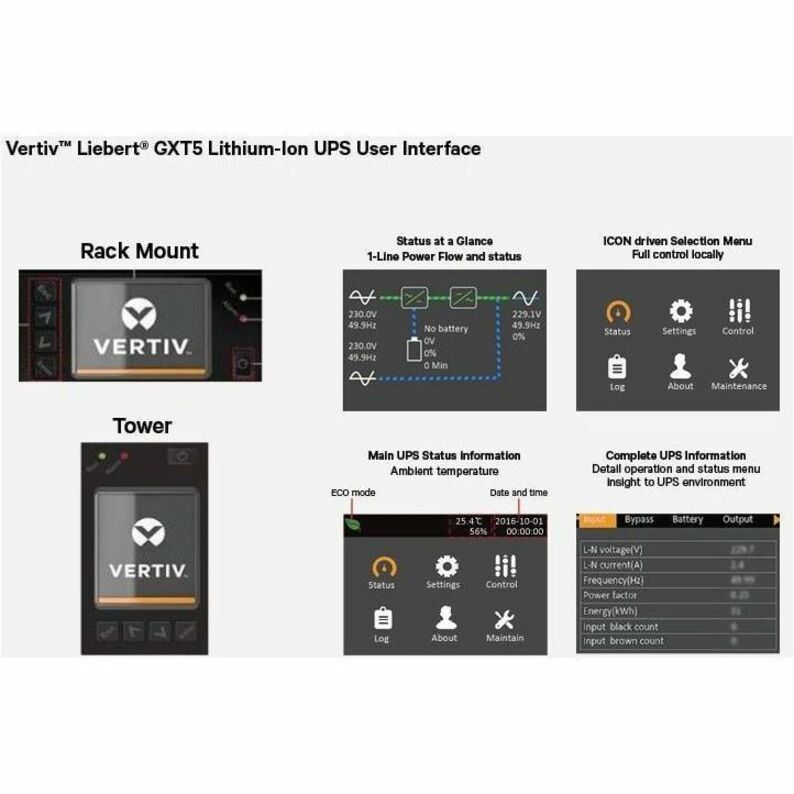

| LCD Display | Yes, Color |
| Network Management | Optional SNMP (RDU101 Card) |
| USB Port | Yes (HID Compliant) |
| Height x Width x Depth | 3.4" x 16.9" x 18.5" |
| Weight | 39.68 lbs |
| Environment | Operating Temp: up to 104°F (40°C) |
| Certifications | RoHS, REACH, WEEE |
| Warranty | 3-Year Limited Warranty |
| Package Includes | USB Cable, Rack Mount Kit, Tower Stand, Quick Start Guide, Vertiv Power Assist Software |
