Description

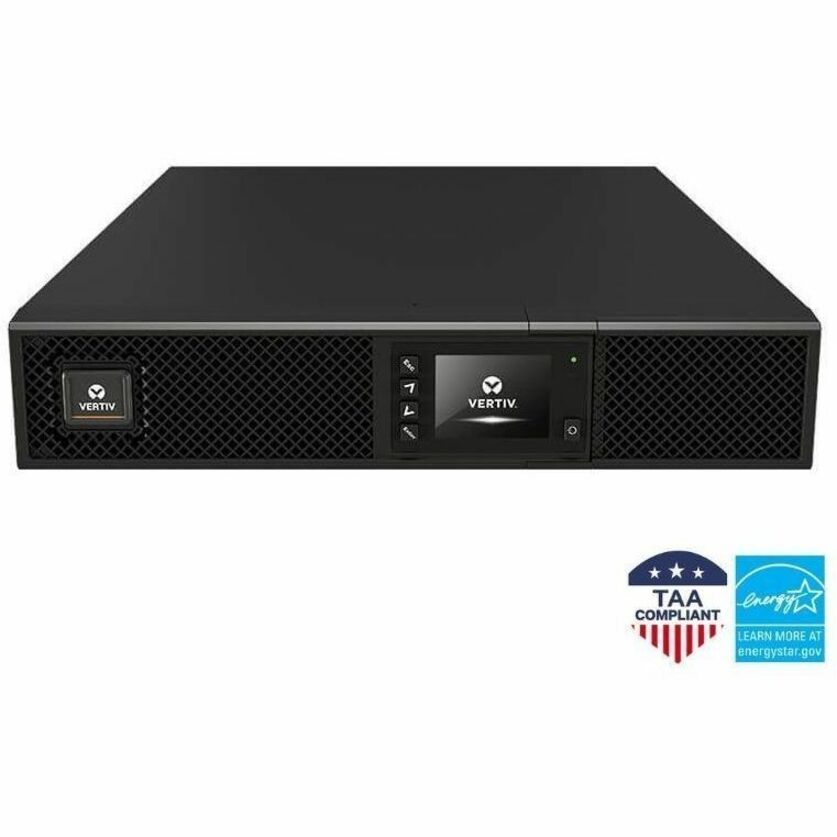

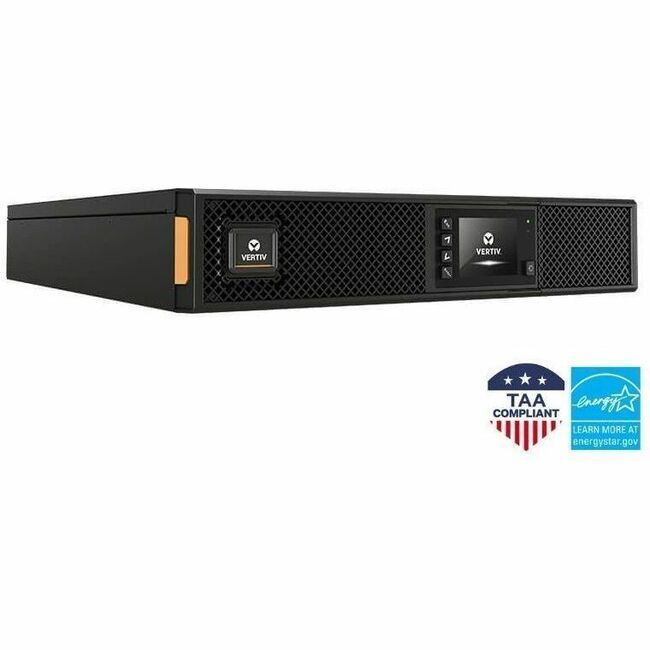

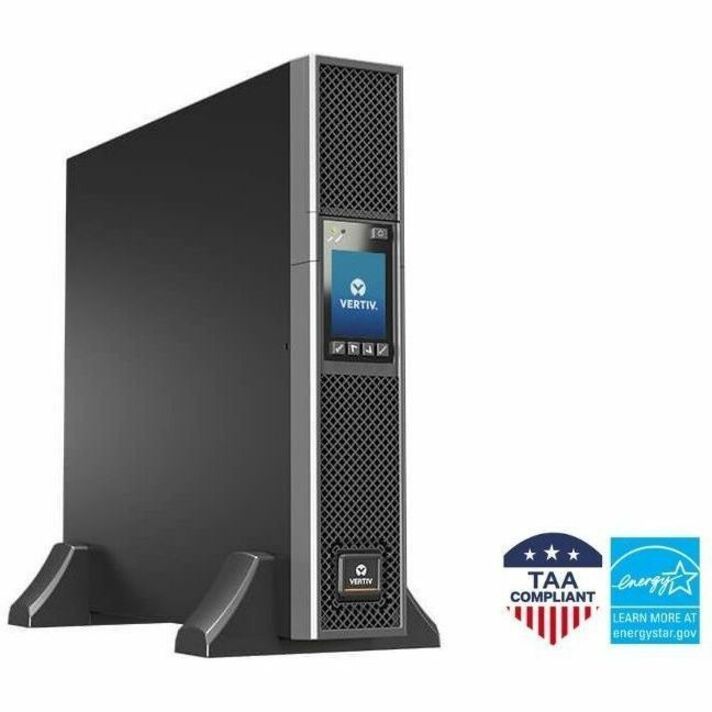

Ensure continuous power protection for critical IT and mission-essential applications with the Vertiv Liebert GXT5-1000LVRT2UXLTAAN UPS. This 2U online double conversion UPS supports 1000VA/1000W capacity with a unity power factor and advanced energy efficiency (ENERGY STAR® 2.0 certified). Featuring hot-swappable VRLA batteries, colored LCD panel, and RDU101 network card for remote management, this TAA-compliant model is ideal for healthcare, edge networks, and enterprise IT environments. Designed for rack or tower setup, it also includes scalable runtime options with external battery cabinets.
| Specification | Details |
|---|---|
| Brand | Vertiv Liebert |
| Model | GXT5-1000LVRT2UXLTAAN |
| Product Type | Double Conversion Online UPS |
| Form Factor | Rack/Tower, 2U |
| Load Capacity | 1000VA / 1000W |
| Input Voltage Range | 60V – 150V AC |
| Output Voltage | 110/115/120/125V AC |
| Output Power Factor | 1.0 (Unity) |
| Input Plug Type | NEMA 5-15P |
| Output Receptacles | 6 × NEMA 5-15R |
| Transfer Time | 0 ns |
| Waveform | Pure Sine Wave |
| Battery Type | Valve-regulated Lead Acid (VRLA) |
| Battery Count | 3 |
| Hot-Swappable Batteries | Yes |
| Runtime (Full/Half Load) | 6 min / 15 min |
| Recharge Time | 3 hours |
| External Battery Support | Yes, supports 1 cabinet |
| Display | Colored Graphic LCD |
| Remote Management | RDU101 Network Card included |
| Environmental Sensors | Temperature, Humidity, Leak Detection |
| Operating Temp | Up to 104°F (40°C) |
| TAA Compliant | Yes |
| Energy Efficiency | ENERGY STAR® 2.0 Certified |
| Compliance | RoHS, WEEE, REACH |
| Dimensions (H x W x D) | 3.4" x 16.9" x 15.7" |
| Weight | 37 lbs |
| Warranty | 3-Year Warranty (Optional 2-Year Extended Warranty Available) |
| Package Includes | UPS Unit, USB Cable, Mount Kit, Tower Stands, Manuals |
| Country of Origin | Mexico |
