Description

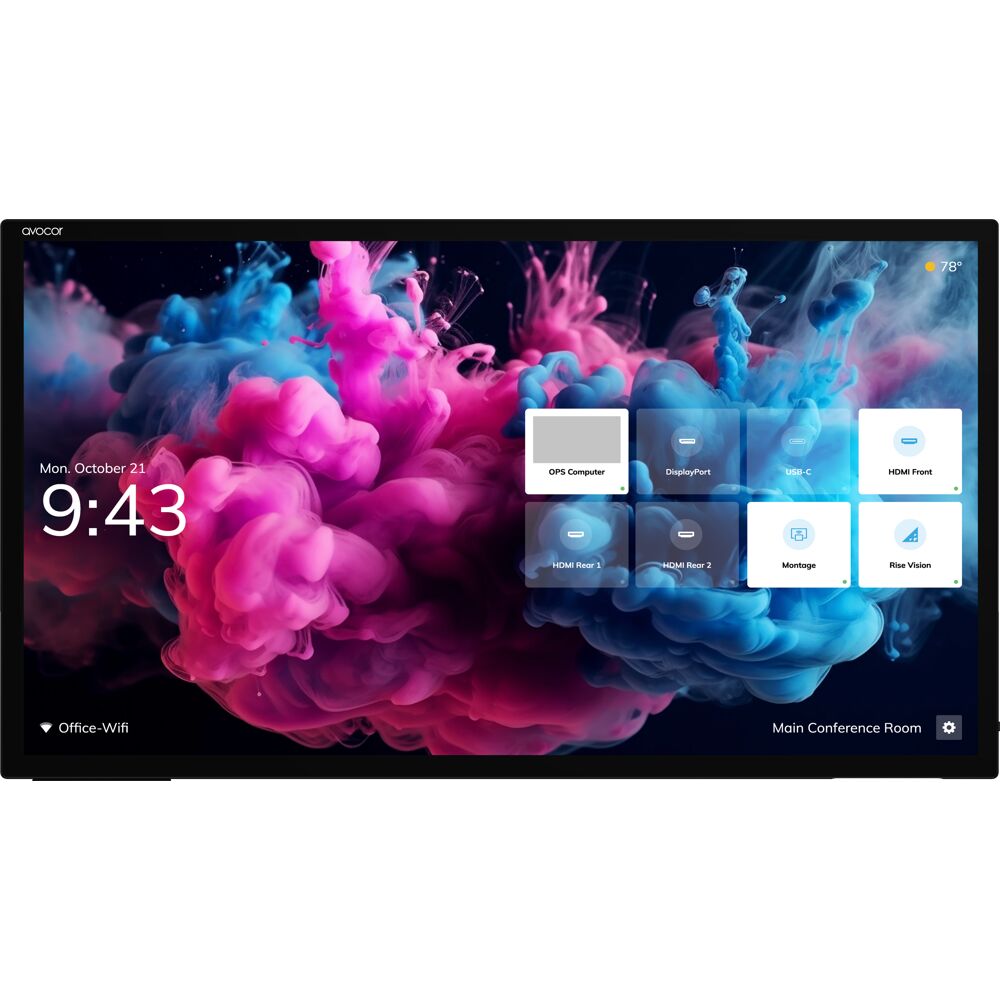

The Avocor H Series 75" UHD 4K Touchscreen Commercial Monitor (AVH-7520) is purpose-built for modern hybrid workspaces. Featuring a sleek ultra-thin bezel design with optically bonded, anti-glare glass, this display delivers stunning 4K resolution and up to 40 points of PCAP touch for natural, intuitive collaboration.
Equipped with powerful built-in 16W stereo speakers, Wi-Fi connectivity, OPS slot support, and multiple input options including USB-C (100W power delivery), HDMI 2.0, and DisplayPort 1.4, the AVH-7520 seamlessly integrates with any AV/IT environment. Remote management through Avocor FUSE, along with integrated Montage for wireless sharing and Rise Vision for digital signage, transforms idle screens into dynamic collaboration hubs.
Ideal for enterprise, education, and government applications, the AVH-7520 combines advanced interactivity, effortless IT control, and premium aesthetics to enhance communication and productivity.
| Category | Specification |
|---|---|
| Model / SKU | Avocor H Series AVH-7520 |
| Display Size | 75" |
| Resolution | 3840 × 2160 (UHD 4K) @ 60Hz |
| Aspect Ratio | 16:9 |
| Backlight | Direct-lit LED |
| Brightness | 400 cd/m² with bonded glass |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Support | 10-bit, 1.07 billion colors |
| Response Time | 6.5 ms |
| Touch System | PCAP, up to 40 points + 1 stylus |
| Glass | 2mm optically bonded, anti-glare, anti-fingerprint |
| Operating Systems | Windows 8+, Mac OSX*, Linux (*Mac/Linux single-touch only) |
| Connectivity (Side I/O) | 1 × USB-C (100W PD), 4 × HDMI 2.0 (HDCP 2.3), 3 × USB-B 2.0, 1 × DisplayPort 1.4, 2 × USB-A 3.0 hub, 1 × USB-A service, 1 × HDMI out |
| Audio Ports | 1 × 3.5mm out, 1 × Optical SPDIF |
| Control Ports | 1 × RS-232, 2 × LAN (RJ-45) |
| OPS Slot | Yes |
| Wi-Fi | Yes (module included) |
| Speakers | 2 × 16W downward-facing spatial stereo |
| Microphone/Camera | None |
| Remote Functions | Auto-source detection, UiQ source preview, FUSE remote management |
| Sensors | Presence sensor (max 4m range), Ambient light |
| Product Dimensions (W × D × H) | 1714 × 80 × 1002 mm (67.48” × 3.15” × 39.45”) |
| Shipping Dimensions | 1863 × 225 × 1130 mm (73.35” × 8.86” × 44.49”) |
| Weight | Net: 48 kg (105.8 lbs) / Gross: 69 kg (152 lbs) |
| Wall Mount (VESA) | 800 × 400 mm (included) |
| Power Consumption | Max 257W |
| Operating Temperature | 0°C to 40°C |
| Humidity | 20% – 85% |
| Warranty | 3 years |
| Included Accessories | Remote control & batteries, 2 × passive styluses, wall mount, power cords (UK/EU/US/AUS), USB-B 3.0 (3m), USB-C (1.8m), HDMI (3m), quick start guide |
