Description

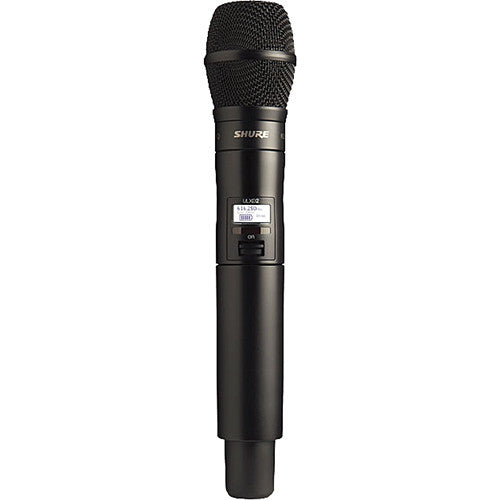

The Shure ULXD2/KSM9HS is a premium digital handheld wireless transmitter engineered for professional live sound, broadcast, and installed audio environments. Designed for seamless integration with ULX-D digital wireless systems, this transmitter delivers pristine 24-bit/48 kHz audio with exceptional clarity, low latency, and reliable RF performance across demanding applications.
Equipped with the advanced KSM9HS dual-diaphragm condenser capsule, the ULXD2/KSM9HS provides unmatched vocal detail and flexibility. With switchable hypercardioid and subcardioid polar patterns, audio engineers can optimize performance for both high-volume stages and more open acoustic environments. The hypercardioid mode enhances off-axis rejection and gain before feedback, while the subcardioid setting delivers natural tonal balance with broader coverage.
Built with a rugged yet lightweight aluminum housing, the transmitter is designed for durability without compromising handling comfort. Shure’s proprietary Gain Ranging automatically adjusts input levels, eliminating the need for manual gain tuning and ensuring consistent audio output. AES-256 encryption guarantees secure transmission, making it ideal for corporate, government, and high-security applications.
User-friendly controls, including a backlit LCD, IR sync, and lockable settings, provide quick setup and reliable operation. Flexible power options support both standard AA batteries and Shure SB900A rechargeable systems with intelligent battery monitoring and extended runtime, making it a dependable solution for long performances and critical events.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| RF Frequency Band | G50: 470 to 534 MHz |
| Operating Range | Up to 100 m (328 ft) |
| Audio Resolution | 24-bit / 48 kHz |
| Latency | < 2.9 ms |
| Encryption | AES-256 |
| RF Output Power | Selectable: 1 / 10 / 20 mW |
| Capsule Type | KSM9HS Dual-Diaphragm Condenser |
| Polar Patterns | Hypercardioid / Subcardioid |
| Frequency Response | 50 Hz to 20 kHz |
| Maximum SPL | 150 dB (Hypercardioid), 153 dB (Subcardioid) |
| Sensitivity | -50.5 dBV/Pa (Hypercardioid), -53.0 dBV/Pa (Subcardioid) |
| Gain Range | 0 to 21 dB (3 dB steps) |
| Auto Gain Control | Yes (Shure Gain Ranging) |
| Sync Method | Infrared (IR) |
| Display | Backlit LCD |
| Controls | Power, Mute, Lock, Menu Navigation |
| Antenna | Fixed Single-Band Helical |
| Battery Type | 2x AA or SB900A Rechargeable (optional) |
| Battery Life | Up to 11 hours (AA), up to 12 hours (SB900A) |
| Charging Options | External dock charging supported |
| Housing Material | Aluminum |
| Weight | 348 g (12.3 oz) |
| Included Accessories | Mic Clip, Thread Adapter, Antenna Cover, AA Batteries, Vinyl Bag |
