Description

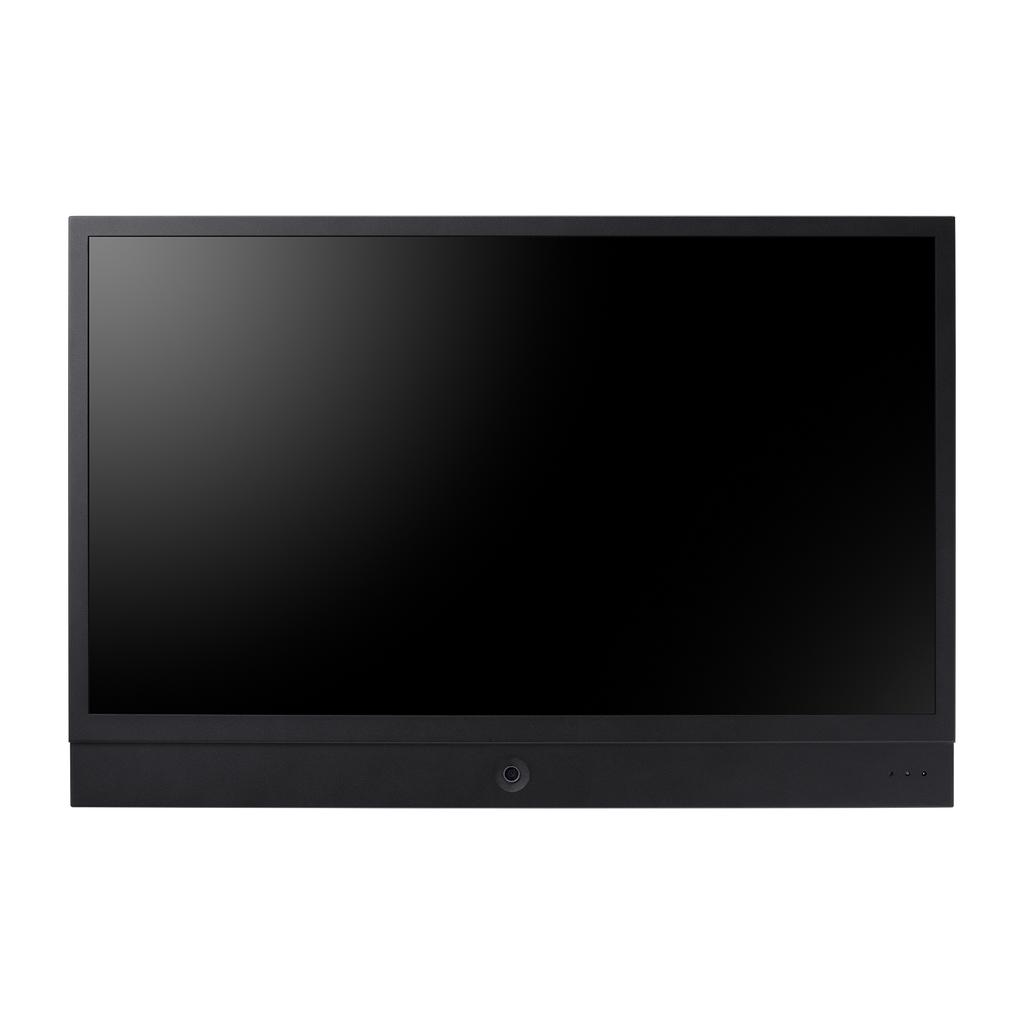

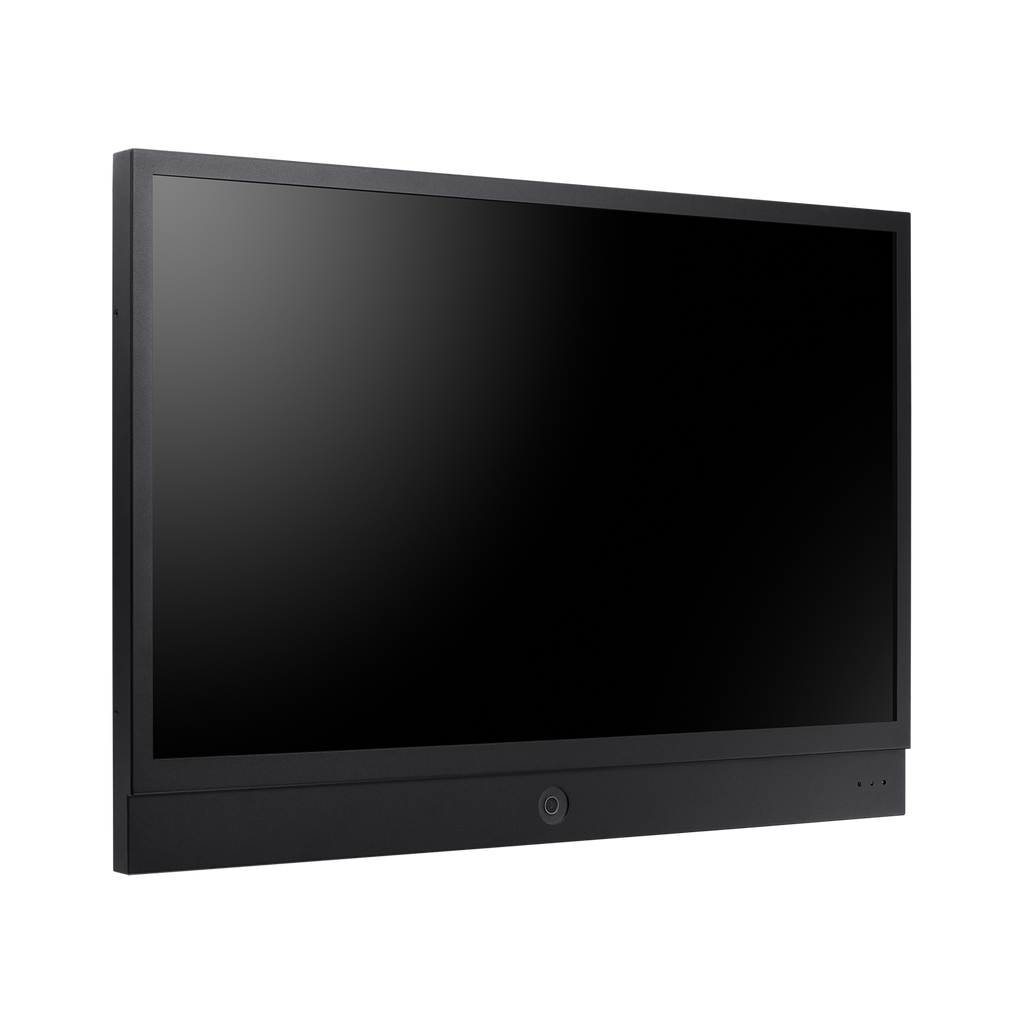

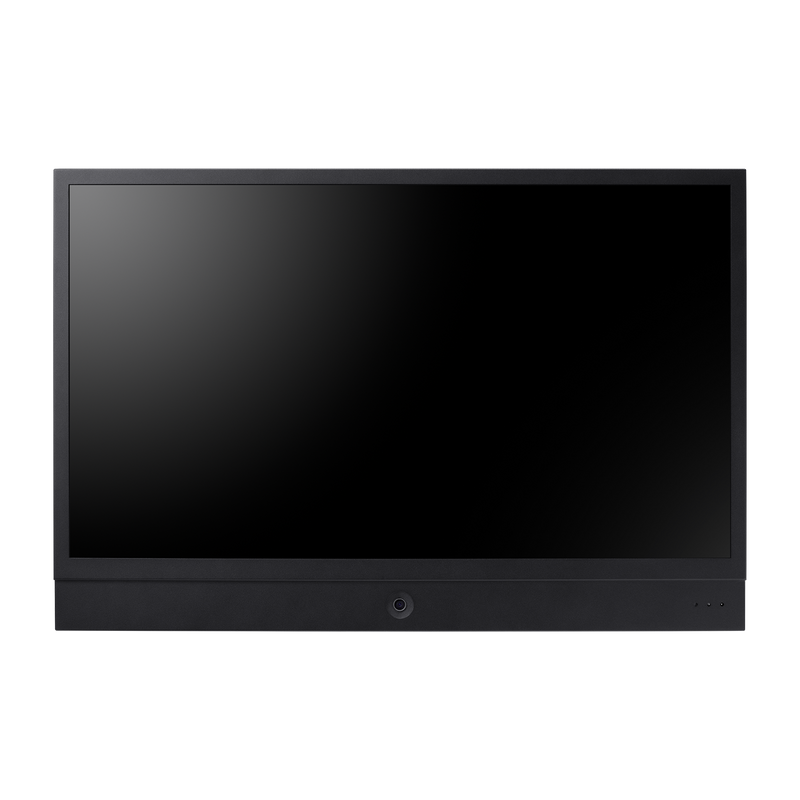

The Hanwha Vision SMT-3221PV is a 32-inch Full HD AI-powered Public View Monitor designed to enhance security visibility and deter unwanted behavior in retail, commercial, and public environments. Integrated with a built-in 2MP AI camera, the SMT-3221PV supports advanced object classification, face detection, people counting, queue monitoring, and heat-mapping—all powered directly on the edge without additional hardware.
The display supports both landscape and portrait orientations, includes motion-activated LED and audio alarms, and features customizable overlays such as “Recording in Progress” or a custom logo. With dual power options (HPoE and DC24V), steel-cabinet durability, and WebUI remote management, the SMT-3221PV offers unmatched flexibility for modern surveillance deployments.
Ideal for retail loss prevention, entrance monitoring, checkout zones, and security awareness signage.
| Category | Details |
|---|---|
| Display | |
| Type | LED Monitor |
| Screen Size | 32-inch |
| Maximum Resolution | 1920 × 1080 (Full HD) |
| Brightness | 400 cd/m² |
| Contrast Ratio | 1300:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle (H/V) | 178° / 178° |
| Display Colors | 16.7M |
| Response Time | 25 ms |
| Panel Life | 30,000 hours |
| Video & Interface | |

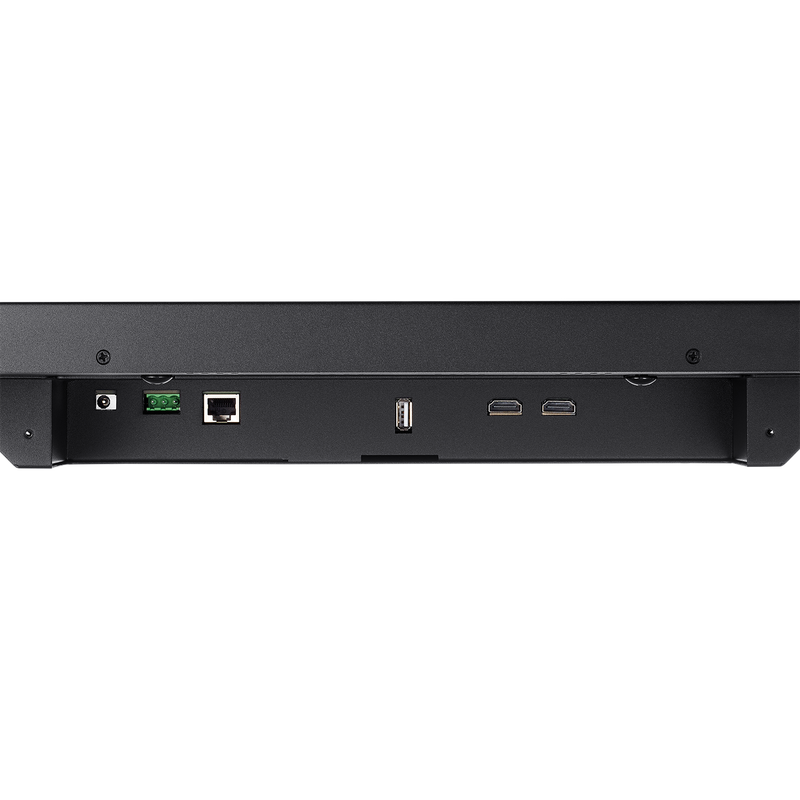

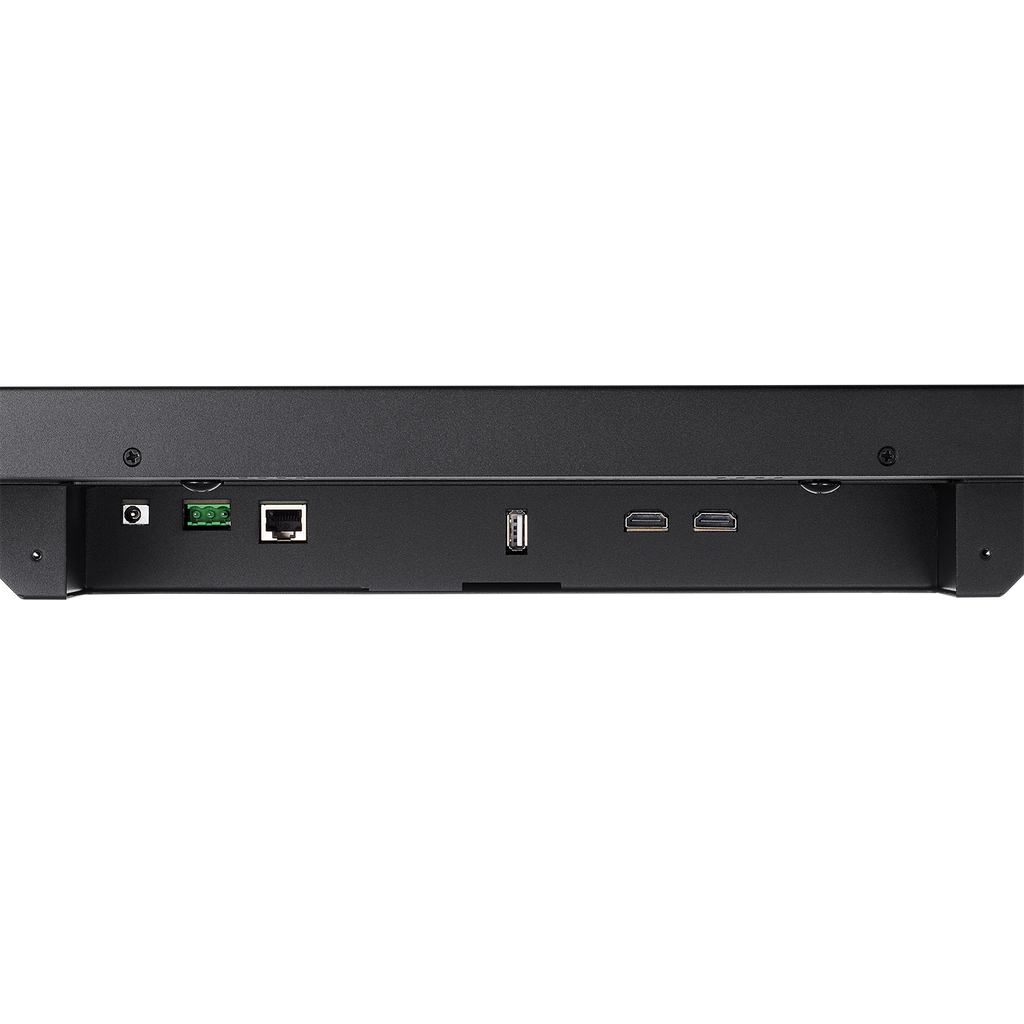

| Video Inputs | Internal Camera, HDMI × 2 |
| Supported Formats | 640×480 to 1920×1080 @ 60Hz; 1280×720p @ 50/60Hz |
| Audio Output | Built-in Speakers (8Ω, 2W × 2) |
| Alarm I/O | 1 Input / 1 Output |
| Network | RJ-45 10/100BASE-T Ethernet |
| Edge Storage | MicroSD/SDHC/SDXC (up to 256GB) |
| Electrical | |
| Power Input | DC 24V, HPoE 802.3bt |
| Power Consumption | 56W |
| Environmental | |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 10% – 80% (non-condensing) |
| Mechanical | |
| Dimensions (W × H × D) | 734 × 490 × 68 mm (28.9 × 19.3 × 2.7 in) |
| Weight | 12.4 kg (27.3 lb) |
| Packing Dimensions | 891 × 648 × 213 mm |
| Packing Weight | 13.8 kg (30.4 lb) |
| Cabinet Color | Black |

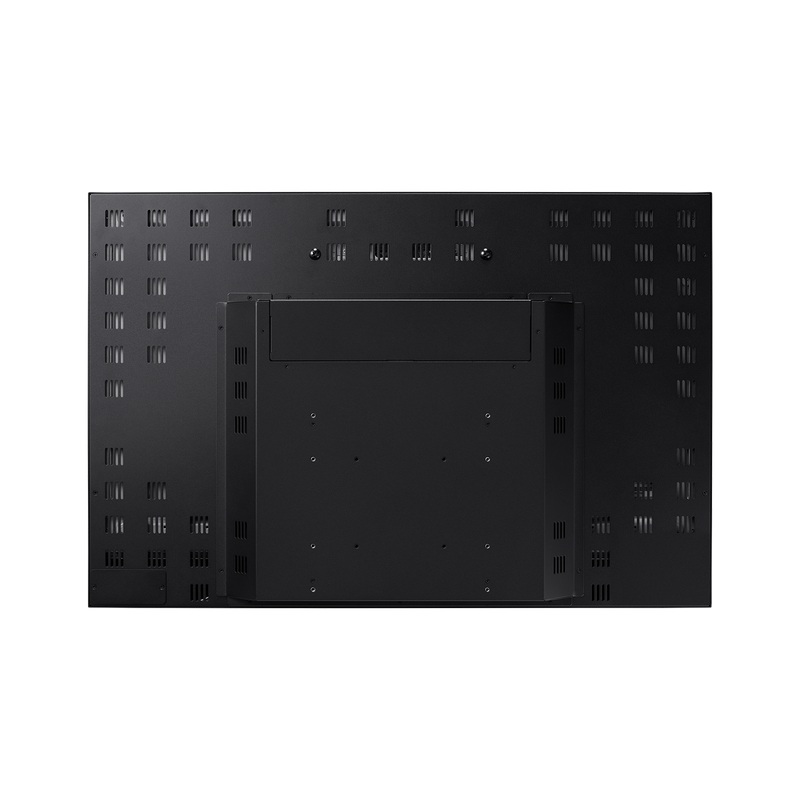

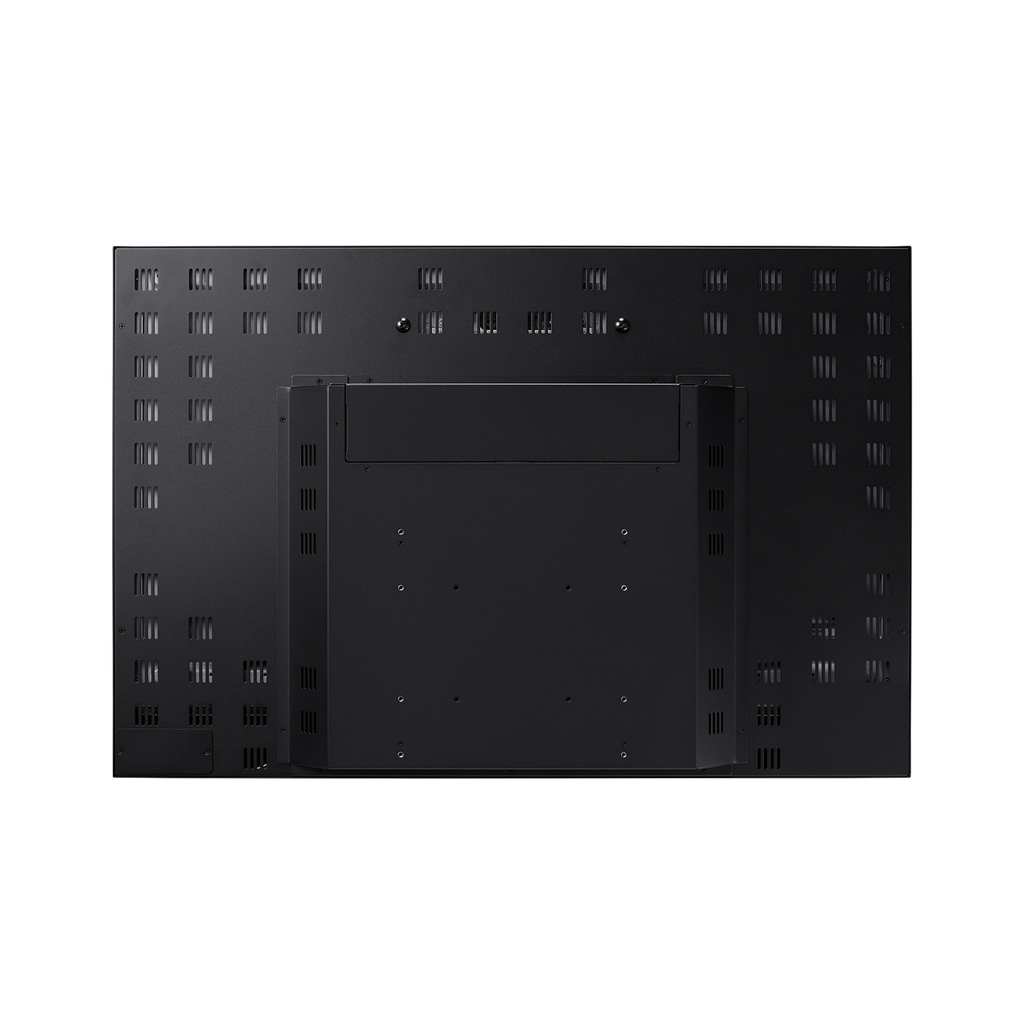

| VESA Mounting | 100×100 mm, 200×100 mm, 200×200 mm |
| Camera Module | |
| Image Sensor | 1/2.8" 2MP CMOS |
| Max Frame Rate | H.265/H.264: 30 fps (60Hz) / 25 fps (50Hz); MJPEG: 15 fps / 12 fps |
| Minimum Illumination | 0.03 Lux (F1.6, 1/30s) |
| Lens | 3.06 mm fixed |
| FoV | H: 107.7° / V: 59° / D: 126.7° |
| WDR | 120 dB |
| Noise Reduction | SSNRV, WiseNR II (AI-based) |
| Video Features | BLC, WDR, SSDR, LDC, Digital PTZ, Flip/Mirror/Hallway View |
| Motion Detection | 8 zones |
| Privacy Masking | 32 zones |
| AI & Analytics | |
| Object Classification | Person, Face |
| Advanced Events | Tampering, Intrusion, Loitering, Enter/Exit, Virtual Line, Defocus |
| Business Intelligence | People Counting, Queue Management, Heatmap |
| Alarm Events | Email/FTP upload, Email notifications, SD/NAS event recording, Alarm output, PTZ handover |
| Security | |
| Secure Boot | Yes |
| Signed Firmware | Yes |
| HTTPS / SRTP | Supported |
| Network Authentication | 802.1X |
| Access Control | IP-based |
| Secure Storage | SD card partition encryption |
| API & Compatibility | ONVIF Profile S/G/T/M, SUNAPI |
