Description

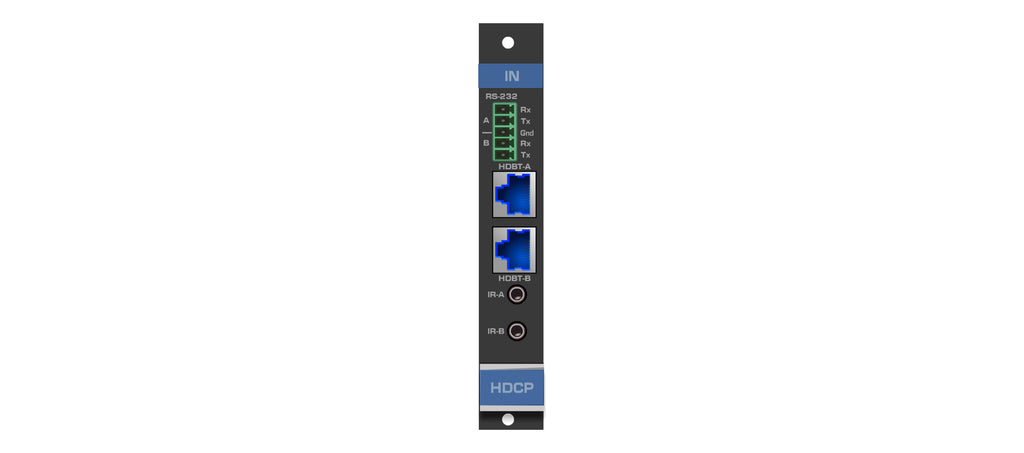

The Kramer HDBT7-IN2-F16(DT)/STANDALONE is a high-performance 2-channel 4K60 4:2:0 HDMI over long-reach HDBaseT input card designed for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers. Engineered for demanding AV environments, it delivers reliable long-distance signal extension with full HDBaseT capabilities including bidirectional RS-232 and IR control.
Supporting up to 40 m at 4K60 (4:2:0) and up to 70 m at 1080p (12-bit), this module ensures exceptional signal integrity thanks to Kramer’s equalization and re-clocking technology. The card is HDCP compliant, HDTV compatible, and fully optimized for professional installations requiring stable long-range AV distribution. Its compact form factor, robust compliance standards, and low power consumption make it an ideal choice for modular switching infrastructures.
| Category | Details |
|---|---|
| Ports | 2 HDBaseT on RJ-45; 2 RS-232 (5-pin terminal block); 2 IR ports (3.5 mm) |
| Max Data Rate | 10.2 Gbps (3.4 Gbps per graphic channel) |
| Max Range | 40 m – 4K60 4:2:0 or 4K30 4:4:4; 70 m – 1080p 12-bit (using Kramer HDBaseT cables) |
| Video Formats | 4K60 4:2:0, 4K30 4:4:4, 1080p deep color |
| HDCP/HDMI Compliance | HDCP 1.4; HDMI 1.3a |
| 3D Pass-Through | Supported |
| Control | Bidirectional RS-232 and IR per port |
| Power Consumption | 10W |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90% RH, non-condensing |
| Environmental Compliance | RoHS, WEEE |
| Safety Compliance | CE |
| Included Accessories | Screwdriver |
| Product Dimensions (W × D × H) | 19.00 × 13.00 × 2.00 cm (7.48" × 5.12" × 0.79") |
| Product Weight | 0.3 kg (0.6 lbs) |
| Shipping Dimensions (W × D × H) | 34.50 × 16.50 × 5.20 cm (13.58" × 6.50" × 2.05") |
| Shipping Weight | 0.4 kg (0.8 lbs) |
