Description

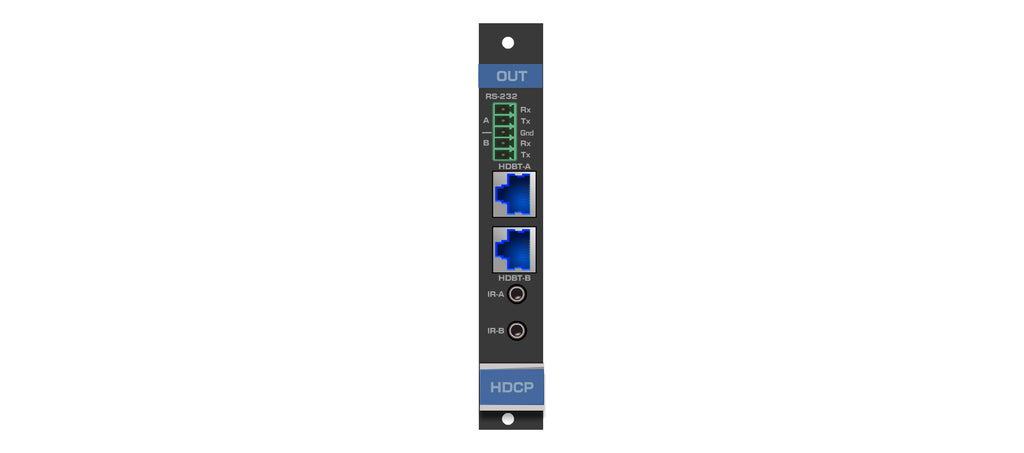

The Kramer HDBT7-OUT2-F16(DT)/STAND is a high-performance 2-channel HDMI over HDBaseT output card designed for VS-1616 modular matrix switcher frames. Engineered for long-reach signal extension, it delivers 4K60 (4:2:0) and 4K30 (4:4:4) video transmission with impressive reliability across HDBaseT infrastructure.
This output card features two HDBaseT outputs supporting bidirectional RS-232 and IR, enabling full control signal passthrough between source and display. With a maximum video data rate of 10.2Gbps, advanced equalization, re-clocking technology, and full HDTV and HDCP compliance, the HDBT7-OUT2-F16 ensures consistent, high-quality signal delivery in professional AV environments.
Ideal for corporate, education, control rooms, and digital signage applications, this module enhances system scalability while maintaining exceptional signal integrity over long distances.
| Category | Details |
|---|---|
| Video Output Type | 2 × HDBaseT on RJ-45 connectors |
| Control Ports | 2 × RS-232 (5-pin terminal block), 2 × IR (3.5 mm jacks) |
| Max Data Rate | 10.2 Gbps (3.4 Gbps per graphic channel) |
| Maximum Range | 40 m (4K60 4:2:0 / 4K30 4:4:4); 70 m (1080p 12-bit)* |
| Supported Formats | 4K60 (4:2:0), 4K30 (4:4:4), 1080p deep color |
| HDCP / HDMI Compliance | HDCP 1.4, HDMI 1.3a |
| 3D Pass-Through | Supported |
| RS-232 Baud Rate | 300 to 115200 |
| Power Consumption | 8 W |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Humidity | 10% to 90% non-condensing |
| Product Dimensions (W × D × H) | 19 × 13 × 2 cm (7.5" × 5.1" × 0.8") |
| Product Weight | 0.16 kg (0.35 lb) approx |
| Shipping Dimensions | 34.5 × 16.5 × 5.2 cm (13.58" × 6.50" × 2.05") |
| Shipping Weight | 0.4 kg (0.9 lb) approx |
| Regulatory Compliance | CE, RoHS, WEEE |
| Included Accessories | Screwdriver |
