Description

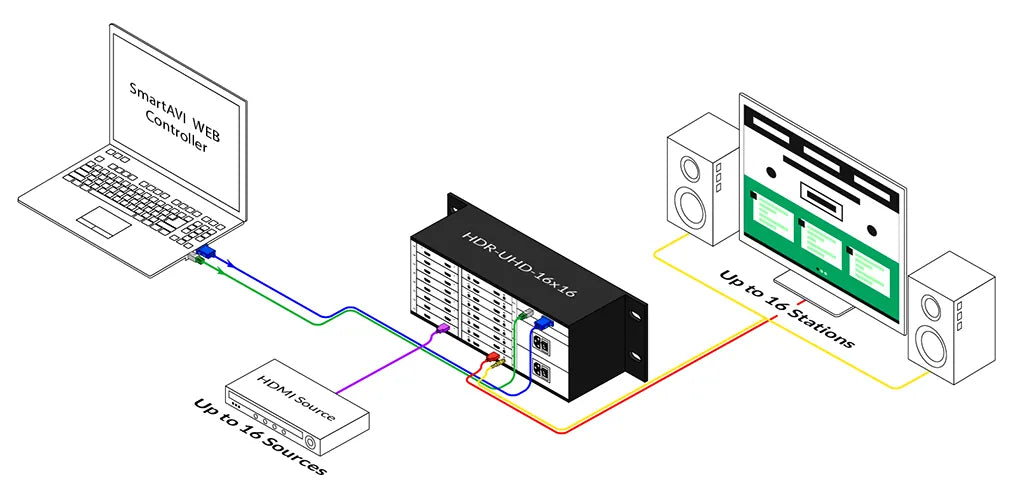

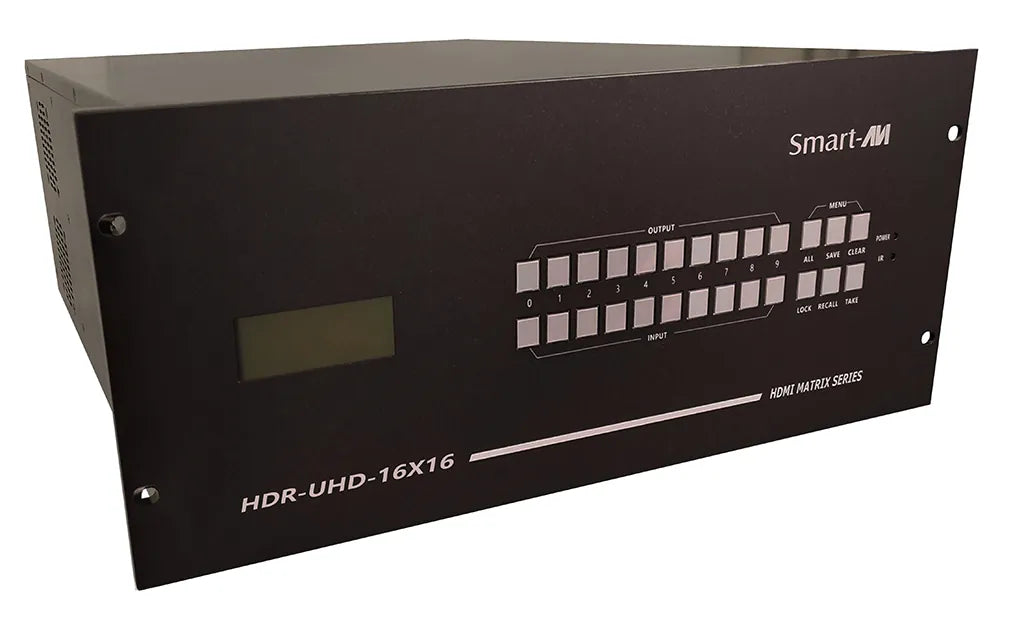

The SmartAVI HDR-UHD-16X16-S is a high-performance 16x16 HDMI matrix switch designed for demanding AV environments requiring seamless 4K signal distribution and flexible control. Supporting Ultra HD resolutions up to 4K at 60Hz, this matrix ensures crystal-clear video quality across multiple displays while maintaining reliable, uninterrupted switching.
Built with an integrated scaler and converter, the system allows any input resolution to be converted to UHD, ensuring consistent output performance across all connected displays. Its seamless switching capability eliminates latency and signal disruption, making it ideal for mission-critical applications such as control rooms, digital signage, corporate environments, and large-scale video wall deployments.
With versatile control options including RS-232, IR, TCP/IP, and front panel operation, users can easily manage and customize display configurations. The included management software enables intuitive drag-and-drop layout creation, offering unlimited display arrangements and quick switching between presets. Designed for plug-and-play deployment, this matrix switch delivers a complete, scalable solution for professional AV integration.
| Specification | Details |
|---|---|
| Video Resolution Support | Up to 3840 x 2160 @ 60Hz (4K UHD), 1080p @ 60Hz |
| Video Standards | HDMI 2.0, HDCP 2.2 compliant |
| Video Bandwidth | 18 Gbps |

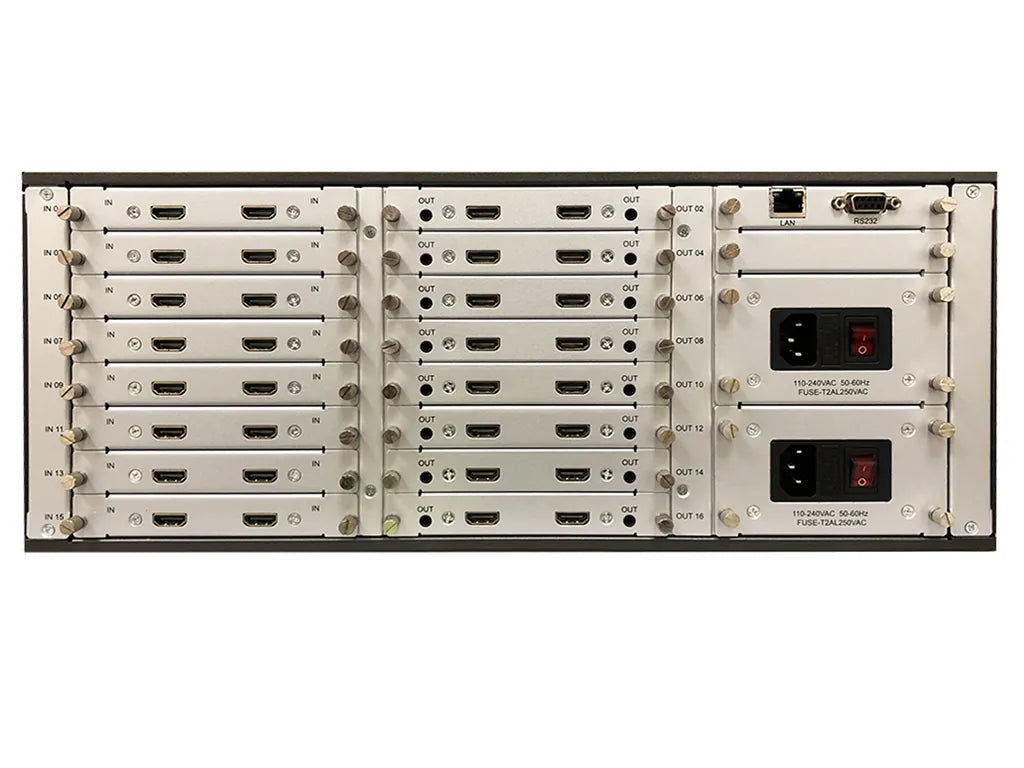

| Input Ports | 16 x HDMI Type-A (female) |
| Output Ports | 16 x HDMI Type-A (female) |
| Audio Output | 16 x 3.5mm stereo output |
| Audio Format | Stereo audio extraction |
| Switching Type | Seamless switching |
| Scaling | Integrated scaler converts input signals to UHD |

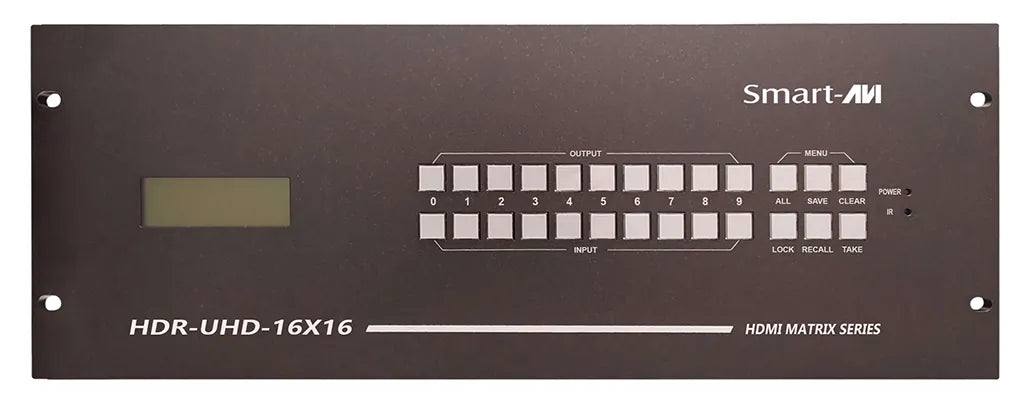

| Control Methods | Front panel buttons, RS-232 (DB9), TCP/IP (RJ45), IR |
| Network Control | Web-based control via LAN (TCP/IP) |
| Software | HDR-UHD Manager software with drag-and-drop interface |
| Display Configurations | Unlimited layouts with customizable presets |
| Plug-and-Play | No additional drivers required |
| Power Supply | 110–240V AC, 50/60Hz |
| Power Consumption | 100W |
| Operating Temperature | 0°C to +40°C |
| Storage Humidity | 20% to 90% non-condensing |
| Dimensions | 17” W x 7 1/8” H x 15” D |
| Weight | 24.45 lbs |
| Included Accessories | Matrix unit and power supply |
