Description

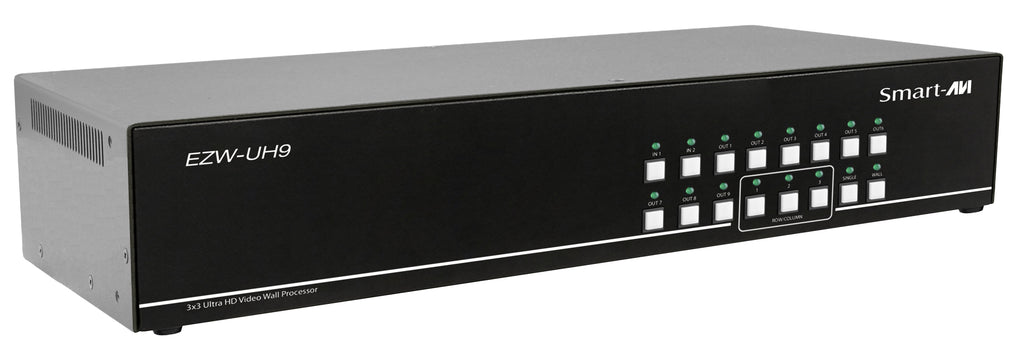

The SmartAVI EZW-UH9 is a powerful Ultra HD video wall processor designed to deliver seamless 3x3 video wall configurations with exceptional clarity and control. Built for professional AV environments, this solution supports HDMI 2.0 and HDCP 2.2, enabling high-resolution content distribution up to 4K at 60Hz across multiple displays.

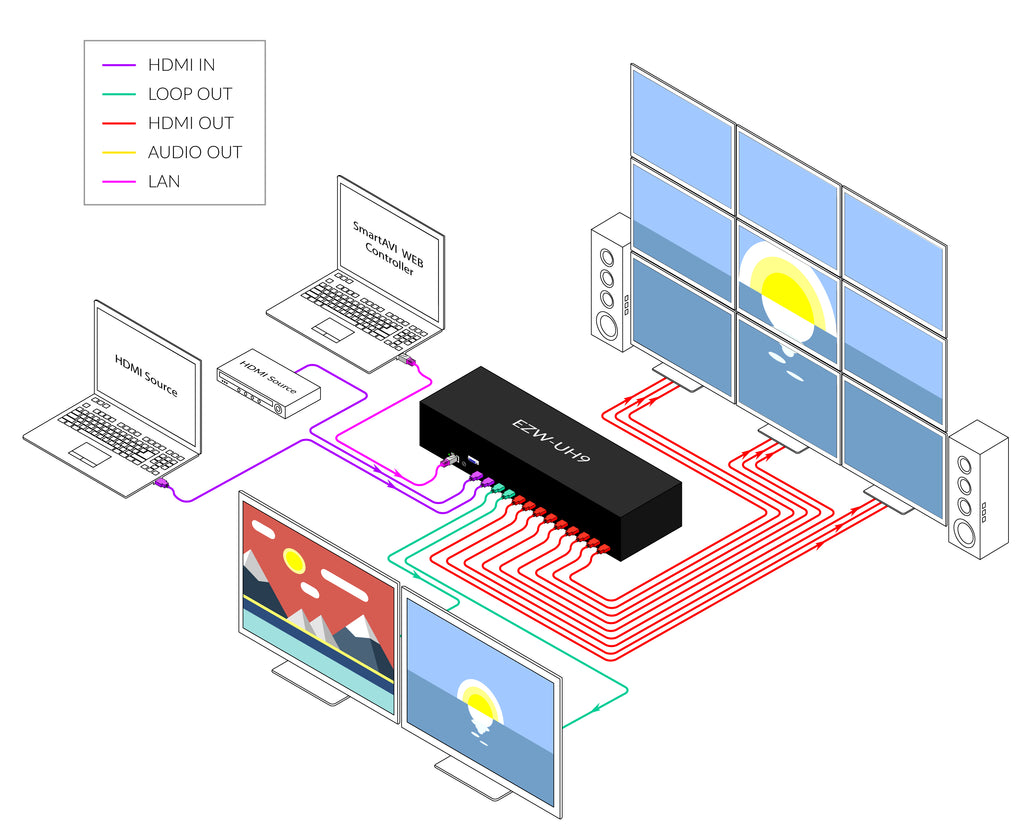

With two HDMI inputs, dual loop outputs, and nine independent HDMI scaling outputs, the EZW-UH9 provides flexible routing and scaling for complex video wall deployments. Whether you are creating a full 3x3 display, segmented layouts such as 1x3 or 3x1, or individual screen outputs, this processor ensures smooth and synchronized visuals.
Control is streamlined through multiple interfaces including front panel controls, IR remote, RS-232, and TCP/IP via an intuitive web-based interface. This makes it ideal for command centers, digital signage, broadcast environments, and enterprise AV installations requiring reliability, scalability, and ease of management.
| Specification | Details |
|---|---|
| Video Wall Capability | Supports up to 3x3 video wall (9 displays) |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 / 1.4 |
| Maximum Resolution | Up to 3840 x 2160 @ 60Hz |

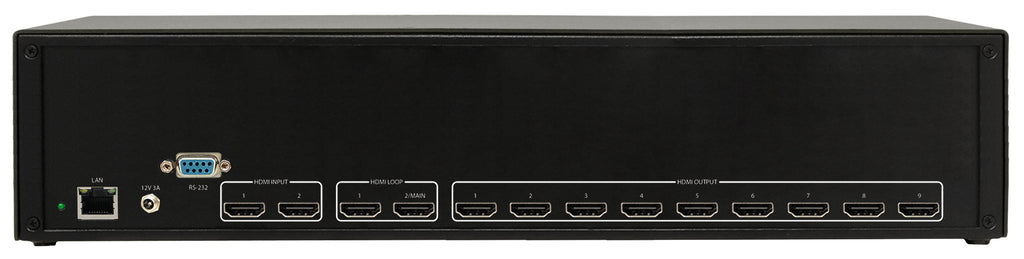

| Input Ports | 2 x HDMI |
| Loop Outputs | 2 x HDMI loop out |
| Output Ports | 9 x HDMI scaling outputs |
| Video Formats | 4K UHD (24/25/30/50/60Hz), 1080p (24/25/30/50/60Hz) |
| Audio Support | 2.0 / 5.1 channel, LPCM, Dolby, AC3, DTS |

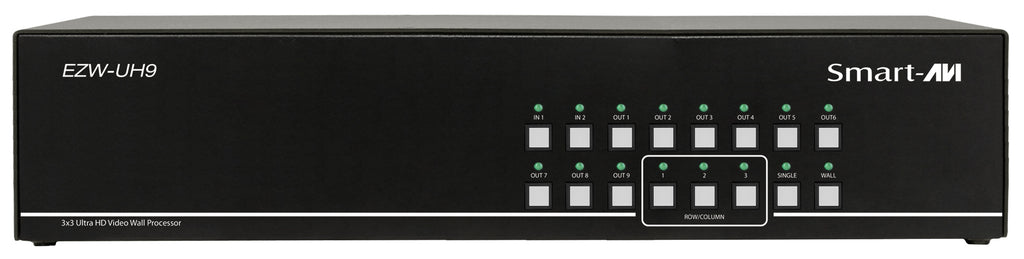

| Control Methods | Front panel, IR remote, RS-232, TCP/IP (Web UI) |
| RS-232 Settings | 115200 baud rate, 8 data bits, 1 stop bit, no parity |
| Network Control | Web-based interface via LAN (CAT5/5e/6) |
| Display Modes | Single display, 1x3, 3x1, full 3x3 wall |
| Resolution Switching | Supports dynamic switching between 1080p and 4K |
| Power Supply | DC 12V / 3A |
| Dimensions | 17.0” W x 2.7” H x 8.69” D |
| Weight | 6.9 lbs |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 10% to 50% RH (non-condensing) |
| ESD Protection | ±8kV air discharge, ±4kV contact discharge |
