Description

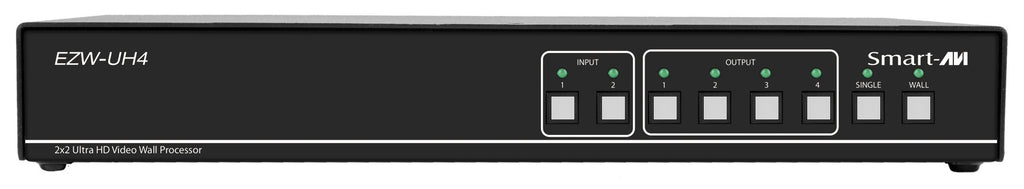

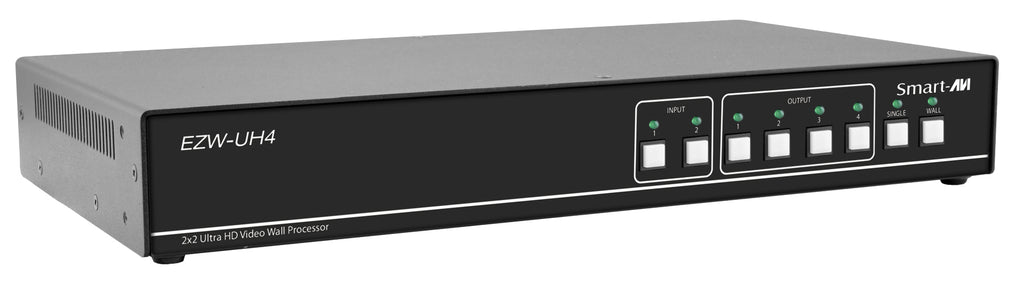

The SmartAVI EZW-UH4 Ultra HD Video Wall Processor is a powerful and flexible solution designed for professional video wall applications. Supporting HDMI 2.0 and HDCP 2.2, this processor delivers crisp, high-resolution visuals up to 3840 x 2160 at 60Hz, ensuring seamless content display across multiple screens.

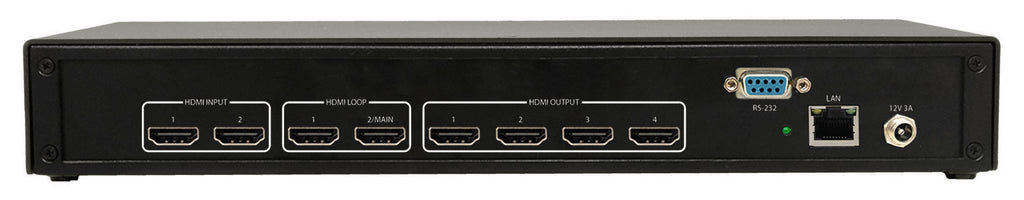

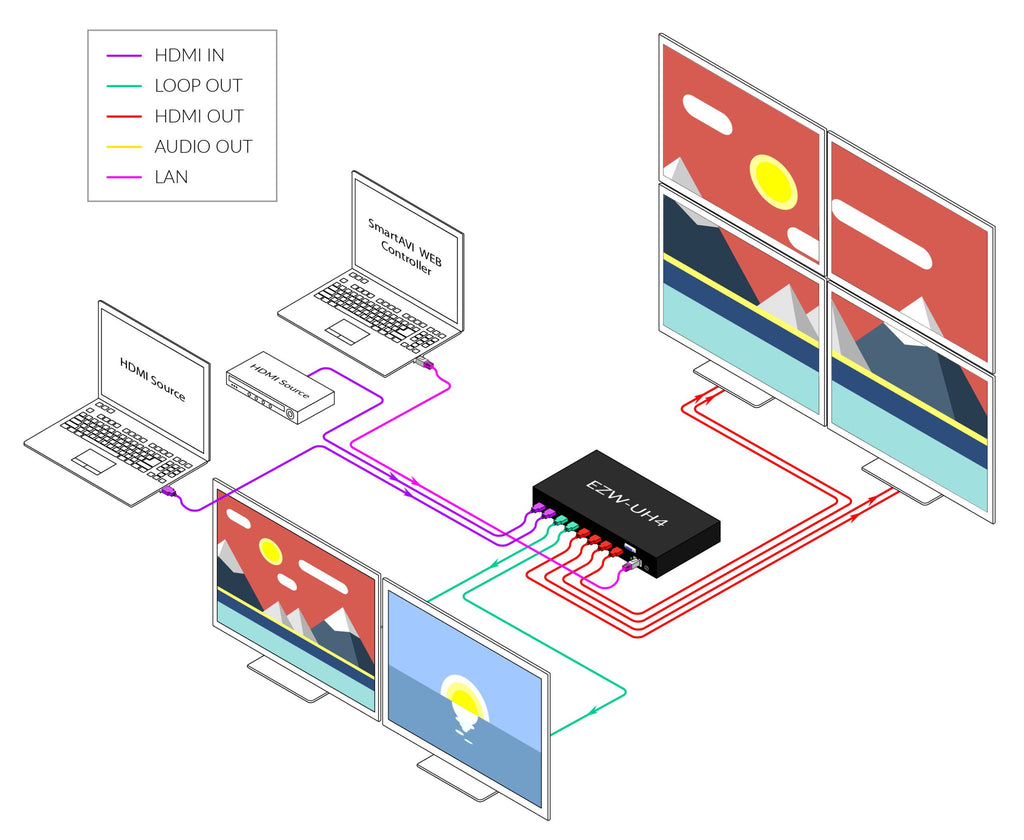

Engineered for reliability and ease of deployment, the EZW-UH4 features dual HDMI inputs, four HDMI scaling outputs, and two loop-out ports, enabling efficient signal distribution and real-time content management. It supports multiple video wall configurations including 1x2, 2x1, and full 2x2 layouts, making it ideal for control rooms, digital signage, broadcast environments, and enterprise AV setups.
With versatile control options such as Web UI, IR remote, RS-232, and TCP/IP, users can easily configure and manage display layouts. The EZW-UH4 provides enterprise-grade performance with robust signal processing, flexible control, and dependable operation for mission-critical visual environments.
| Specification | Details |
|---|---|
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 / 1.4 |
| Maximum Resolution | Up to 3840 x 2160 @ 60Hz |
| Input Ports | 2 x HDMI |
| Output Ports | 4 x HDMI (Video Wall Outputs) |
| Loop Outputs | 2 x HDMI Loop-Out |
| Video Wall Modes | 1x2, 2x1, 2x2, Single Display |
| Audio Support | LPCM, Dolby, AC3, DTS (2.0 / 5.1) |
| Control Methods | Web UI, IR Remote, RS-232, TCP/IP |
| RS-232 Settings | 115200 baud, 8 data bits, 1 stop bit |
| Network Control | LAN (CAT5/5e/6) |
| Power Supply | 12V DC, 3A |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 10% to 50% RH (non-condensing) |
| Dimensions | 12.57” W x 1.76” D x 6.69” H |
| Weight | 4.4 lbs |
| ESD Protection | ±8kV air-gap, ±4kV contact |
