Description

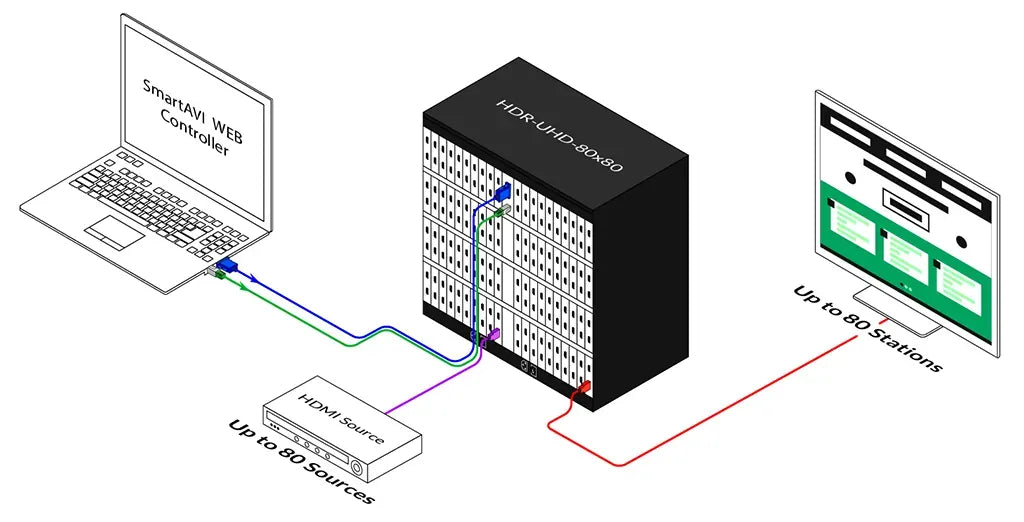

The SmartAVI HDR-UHD-80X80-S is a high-capacity 80x80 HDMI matrix switch engineered for enterprise-grade AV distribution and large-scale video wall deployments. Supporting full 4K Ultra HD at 60Hz, this system delivers seamless switching across up to 80 sources and 80 displays, making it ideal for command centers, control rooms, digital signage networks, and mission-critical environments.
Designed for performance and flexibility, the integrated scaler and converter ensure consistent output resolution across all displays, while advanced control options including TCP/IP, RS-232, and front panel access enable effortless system management. The included HDR-UHD Manager software provides intuitive drag-and-drop configuration, allowing users to create and customize unlimited video wall layouts with ease.
With plug-and-play functionality, robust hardware construction, and enterprise-level scalability, the HDR-UHD-80X80-S delivers reliable, high-performance AV routing for demanding professional installations.
| Specification | Details |
|---|---|
| Matrix Configuration | 80 Inputs x 80 Outputs |
| Video Resolution Support | Up to 4K UHD (3840 x 2160 @ 60Hz), also supports 4K@30Hz and 1080p@60Hz |
| Video Bandwidth | 18 Gbps |
| HDMI Standard | HDMI 2.0 with HDCP 2.2 compliance |
| Switching Type | Seamless, real-time switching |
| Scaling | Integrated scaler converts any input resolution to UHD |

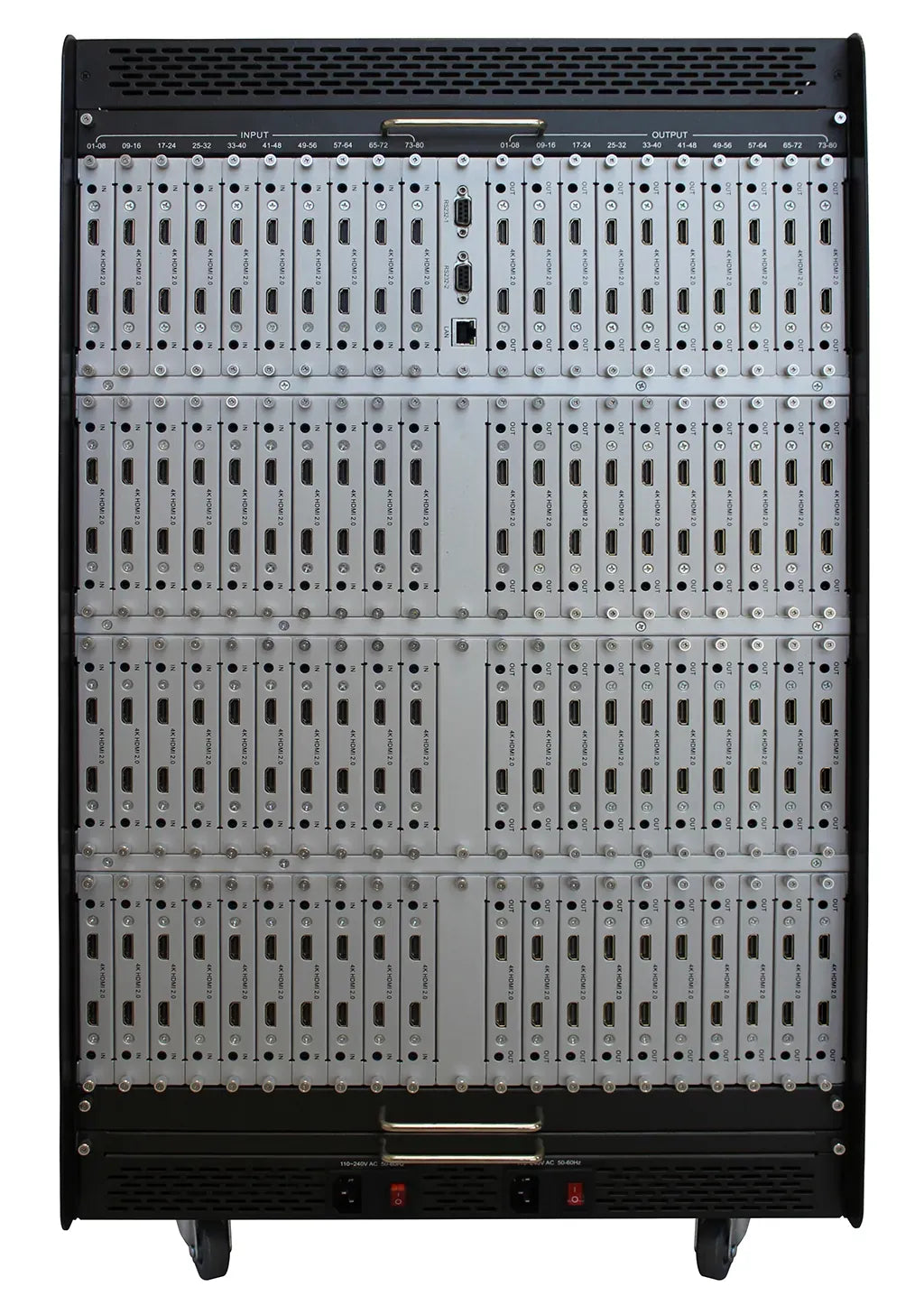

| Input Connections | 80 x HDMI Type A (female) |
| Output Connections | 80 x HDMI Type A (female) |
| Audio Support | Stereo audio via HDMI with 3.5mm output |

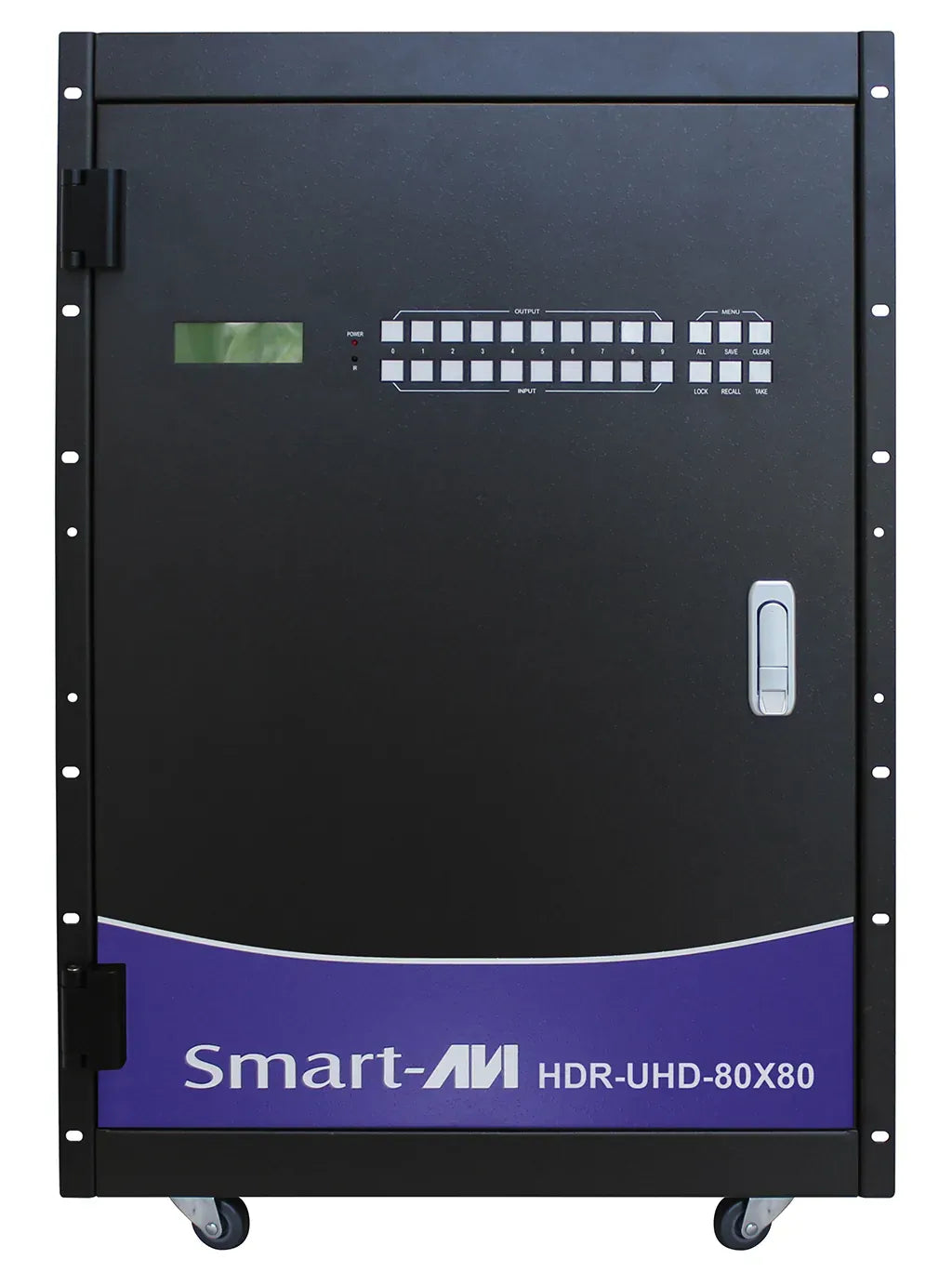

| Control Methods | TCP/IP (LAN), RS-232, Front Panel Controls |
| Software | HDR-UHD Manager GUI for layout customization |
| Network Control | RJ45 (Telnet/UDP support) |
| RS-232 | DB9 connector, 115200 baud rate |
| Power Supply | 110–240 VAC, 50/60Hz |
| Power Consumption | 100W |
| Operating Temperature | 0°C to +40°C |
| Storage Humidity | 20% to 90% non-condensing |
| Dimensions | 17” W x 7.125” H x 15” D |
| Weight | 24.45 lbs |

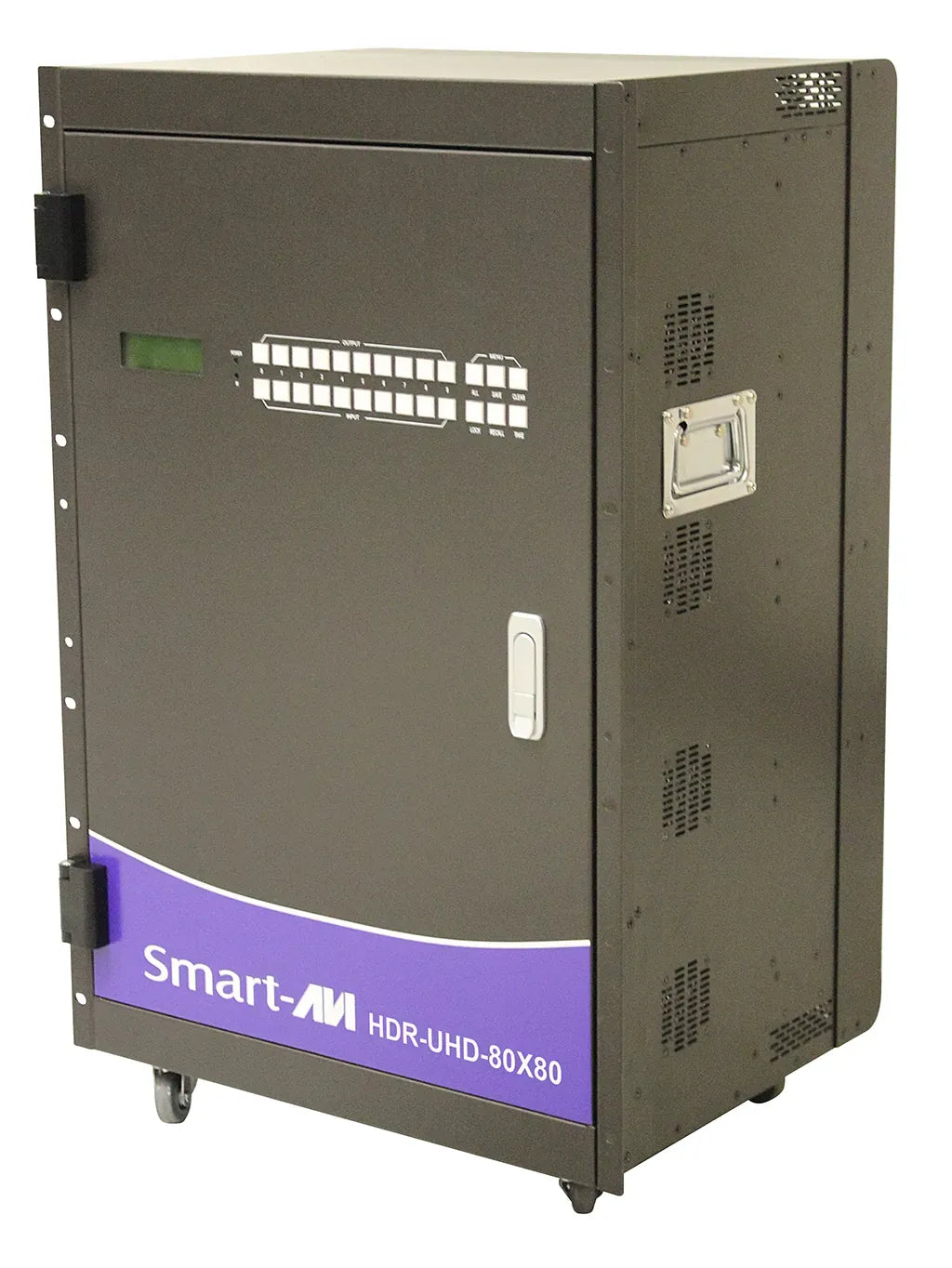

| Installation Type | Rackmount, plug-and-play deployment |
| Included Components | HDR-UHD-80X80 chassis and power supply unit |
