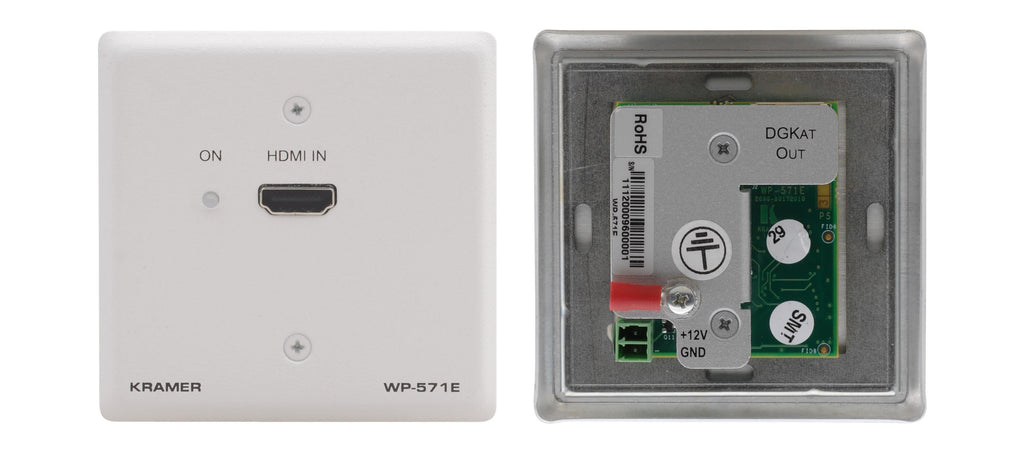

Description

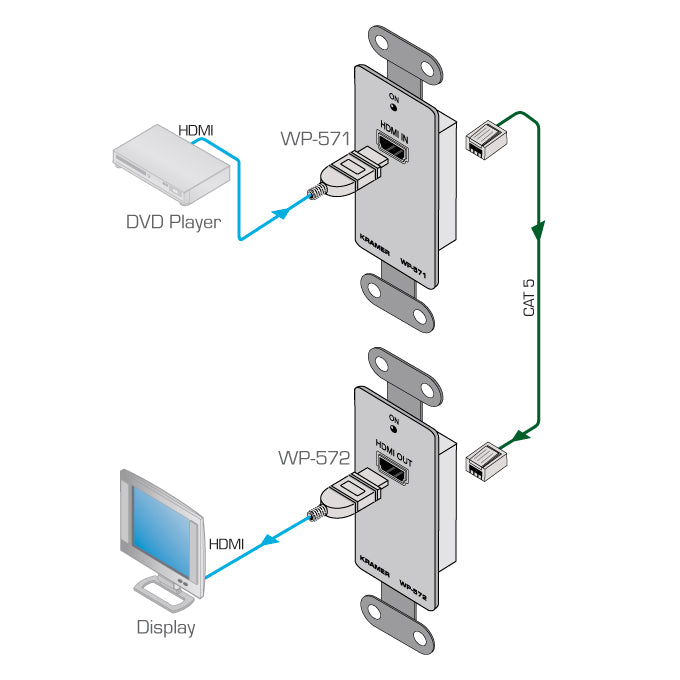

The Kramer WP-571/US(B) is a sleek, US-standard 1-gang wall-plate HDMI transmitter designed for reliable long-reach signal extension in professional AV installations. Using Kramer’s DGKat™ technology, it converts HDMI to a twisted-pair signal for transmission to a compatible receiver—typically the WP-572—making it ideal for conference rooms, classrooms, digital signage, and corporate environments.
This model supports HDMI and HDCP, uncompressed audio formats, 3D pass-through, and long-distance signal delivery of up to 90m at 1080i or 70m at 1080p (using Kramer DGKat cables). With PoC (Power over Cable), only one side of the transmitter-receiver pair requires external power, simplifying deployment. The WP-571/US(B) features active status indication LEDs and seamless EDID pass-through to maintain stable, reliable connectivity across devices.
| Specification | Details |
|---|---|
| Inputs | 1 HDMI connector |
| Outputs | 1 DGKat™ twisted-pair on RJ-45 |
| Bandwidth | Up to 4.95Gbps (1.65Gbps per graphics channel) |
| HDMI/HDCP Support | HDMI compliant, HDCP compliant, HDCP 2.2 compatible |
| Audio Support | HDMI uncompressed audio, Dolby TrueHD, DTS-HD |
| 3D Support | Yes, 3D pass-through |
| System Range | Up to 90m at 1080i/60; up to 70m at 1080p/60 (with Kramer DGKat cables) |
| EDID Handling | EDID PassThru |
| Indicators | Power/connection active LED (red/orange/green) |
| Power Requirement (US) | 12V DC, 190mA (single device); 360mA total when powering paired devices |
| Power Technology | Power Connect™ (PoC) system |
| Included Accessories | Power supply |
| Product Dimensions (US) | 6.98 × 2.40 × 11.43 cm (2.75" × 0.94" × 4.50") W × D × H |
| Product Weight (US) | 0.1 kg (0.2 lb) approx |
| Shipping Dimensions | 8.00 × 10.00 × 5.80 cm (3.15" × 3.94" × 2.28") |
| Shipping Weight | 0.3 kg (0.6 lb) approx |
| Frame Color | Black (US 1-gang) |
