Description

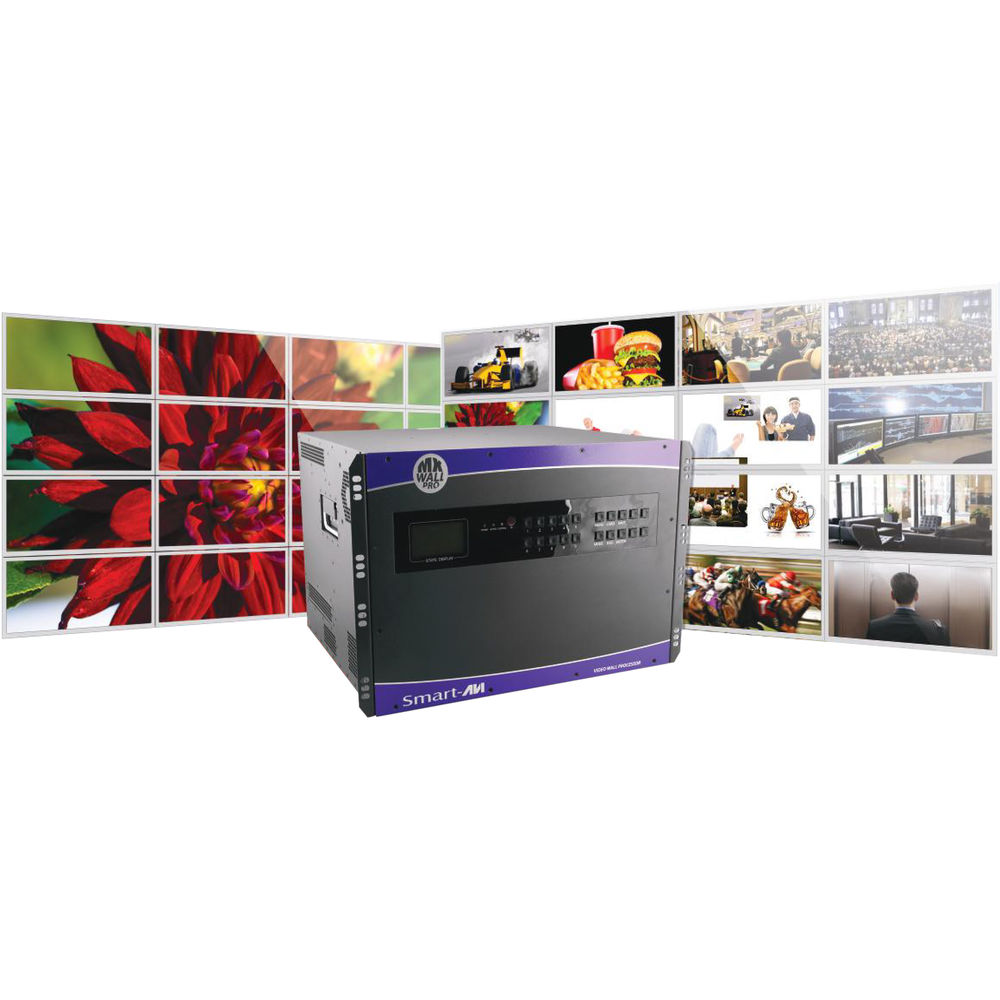

The SmartAVI MXWallPro 32x32 HDMI Video Wall Matrix Switch delivers powerful, real-time video wall processing combined with flexible matrix switching in a single, enterprise-grade platform. Designed for demanding AV environments, this solution enables seamless routing of multiple HDMI sources across large-scale display arrays while maintaining exceptional image quality and system reliability.

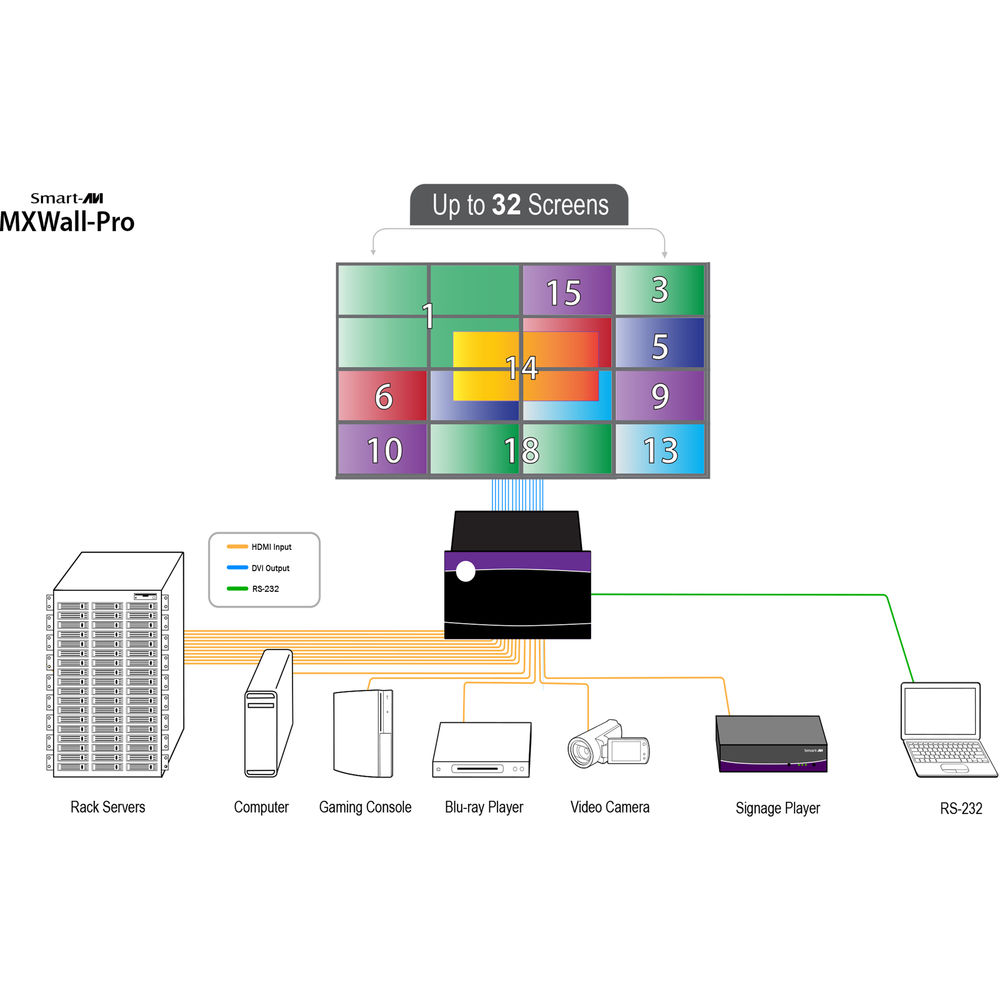

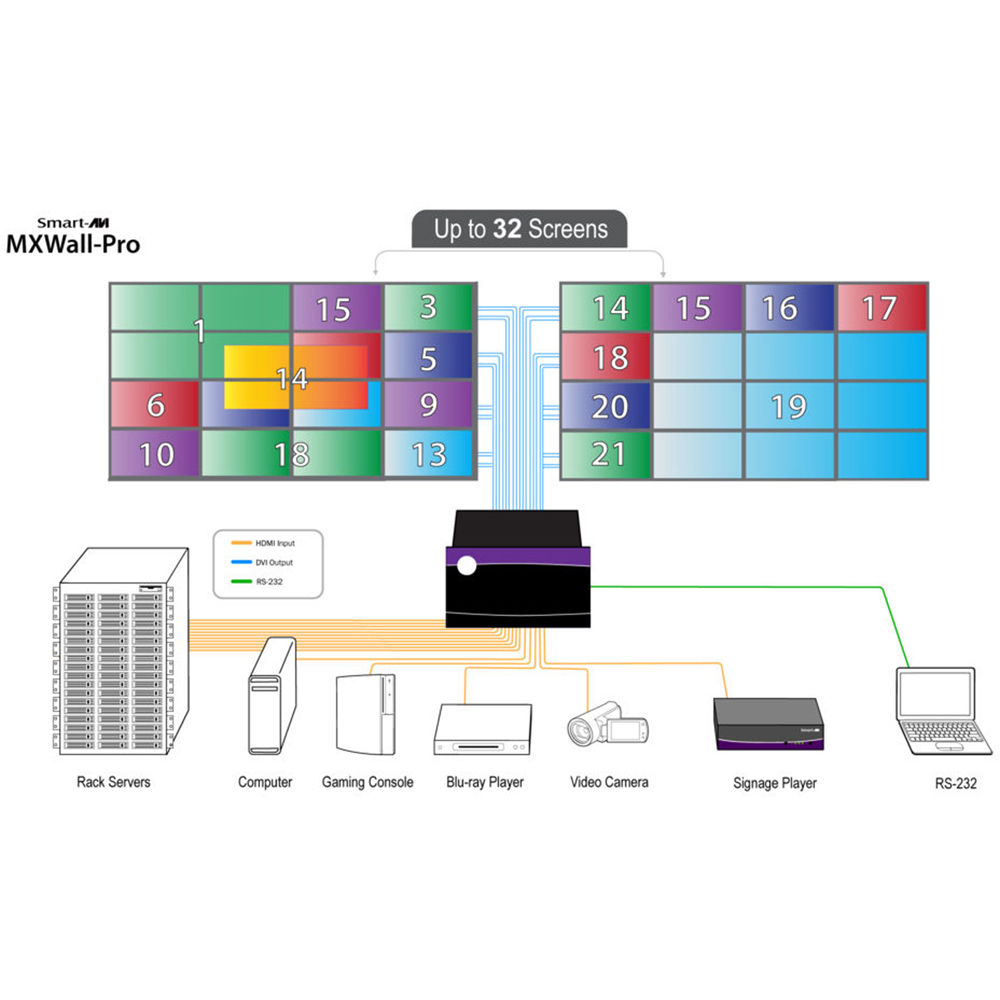

Built for control rooms, digital signage, corporate environments, and mission-critical installations, the MXWallPro supports fully customizable video wall layouts with integrated scaling and advanced display modes. Its intuitive management software allows users to configure, adjust, and deploy video walls with ease, making it ideal for both technical and non-technical operators.
With plug-and-play deployment, robust connectivity options including RS-232 and TCP/IP, and support for continuous 24/7 operation, the MXWallPro ensures consistent performance in high-demand environments. The included MXWall-3232 system and CCPWR06 power supply provide a complete, ready-to-deploy solution for large-scale AV distribution and visualization.
| Specification | Details |
|---|---|
| Video Wall Capacity | Up to 32x32 HDMI matrix configuration |
| Supported Input/Output | HDMI and DVI (via card-based architecture) |
| Maximum Resolution | Up to 1080p @ 60Hz (Full HD), supports UHD scaling capabilities |
| Video Processing | Integrated scaler and real-time video wall processor |
| Display Modes | Full video wall, quad view, and individual display routing |

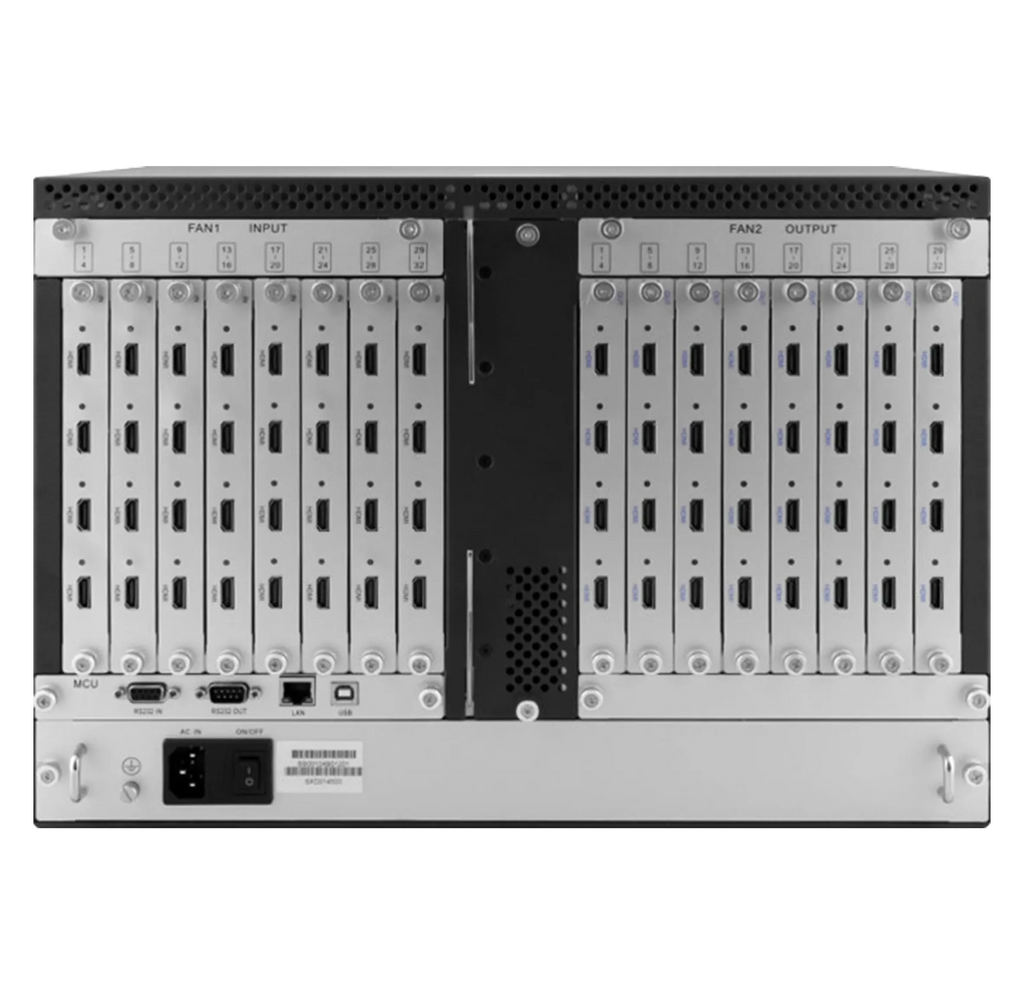

| Input Slots | Up to 8 cards (4 inputs per card) |
| Output Slots | Up to 8 cards (4 outputs per card) |
| Video Formats | RGB/YCBCR, 24/30/36-bit, multiple chroma subsampling formats |
| Compliance | HDMI 1.4 and HDCP compliant |

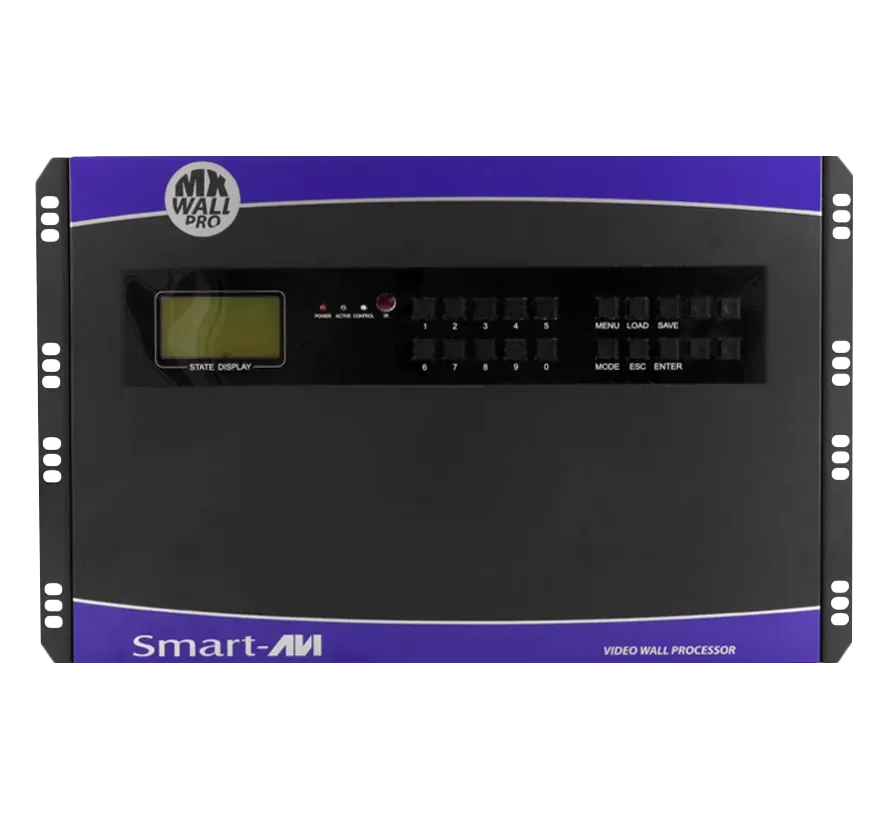

| Control Interfaces | Front panel buttons, RS-232, TCP/IP (web-based control) |
| Software | MXWall Manager software for drag-and-drop configuration |
| Connectivity | LAN, USB, RS-232 |
| Bandwidth | 3.2G video amplifier bandwidth |
| Pixel Clock | Supports frequencies beyond 165 Mpix/sec |
| Operating Temperature | 0°C to +55°C |
| Storage Humidity | 10% to 90% |
| Power Supply | 100–230 VAC, 50/60Hz |
| Power Consumption | 300W |
| Dimensions | 17.125" W x 12" H x 12" D |
| Weight | 30 lbs |
| Included Components | MXWall-3232 unit and CCPWR06 power supply |
| Use Case | Control rooms, digital signage, command centers, corporate AV environments |
