Description

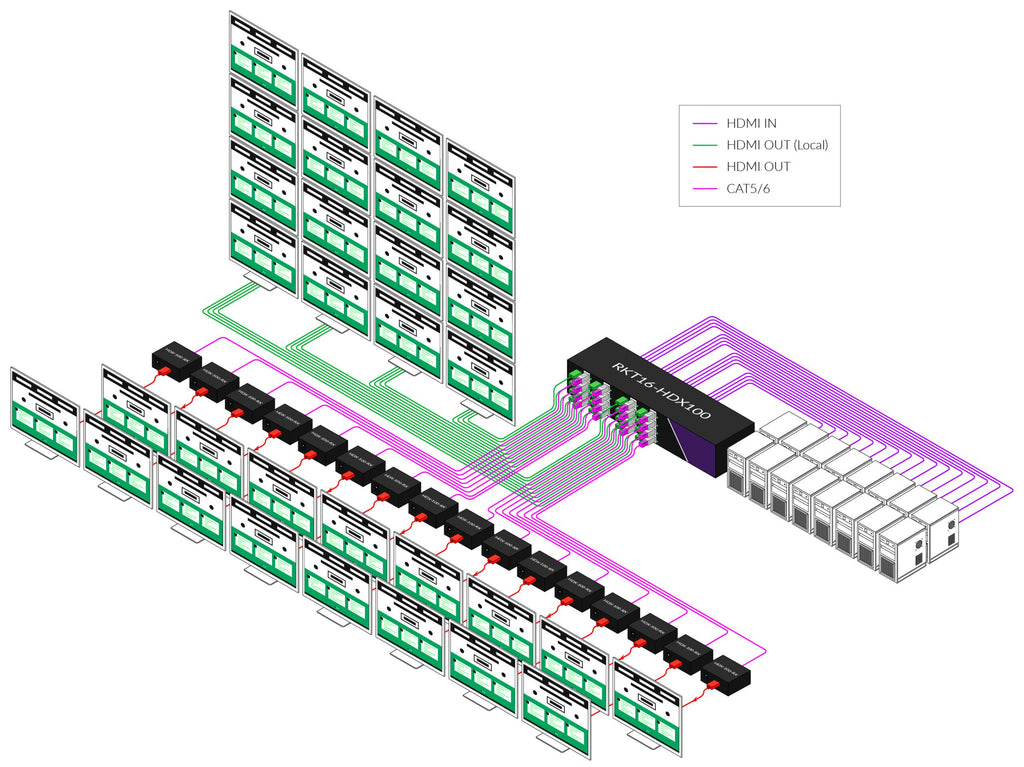

The SmartAVI RKT16-HDX100-S is a high-performance 16-port HDMI rackmount extender transmitter designed to distribute high-definition video signals over long distances using cost-effective CAT5e/6 STP cabling. Engineered for centralized AV deployments, this system enables seamless extension of up to 16 HDMI sources to remote displays up to 150 feet away while maintaining uncompressed video quality and zero pixel loss.
Ideal for enterprise environments, control rooms, digital signage networks, and large-scale AV installations, this rackmount solution eliminates the need for multiple standalone extenders by consolidating all connections into a single, efficient unit with one power source. Each port includes a local HDMI output for real-time monitoring, ensuring full visibility and control over content distribution.
With plug-and-play functionality, broad OS compatibility, and support for high-resolution video up to 1920x1200 @60Hz, the RKT16-HDX100-S delivers reliable, scalable, and professional-grade signal extension for demanding applications.
| Specification | Details |
|---|---|
| Product Type | Rackmount HDMI Extender Transmitter |
| Number of Ports | 16 HDMI Inputs |
| Local Outputs | 16 HDMI Outputs (for monitoring) |
| Remote Outputs | 16 RJ-45 (CAT5e/6 STP) |
| Maximum Extension Distance | Up to 150 feet |
| Video Resolution | Up to 1920x1200 @60Hz (WUXGA), supports 480p to 1080p |
| Video Format | HDMI 1.3, HDCP Compliant |
| Signal Integrity | Zero pixel loss with TMDS correction |
| Bandwidth | Up to 165 MHz |
| DDC Support | 5V TTL from internal table |
| Input Equalization | Automatic |
| Cable Requirements | CAT5e/6 STP for remote extension |
| Local HDMI Monitoring | Available on each port |
| Compatibility | Windows, macOS, Linux systems |
| Installation Type | Rackmount |
| Power Supply | Internal 110–240 VAC |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -20 to 85°C |
| Humidity | Up to 95% (non-condensing) |
| Dimensions | 17" W x 3.5" H x 3.25" D |
| Weight | 10 lbs |
| Included Accessories | Power supply unit |
