Description

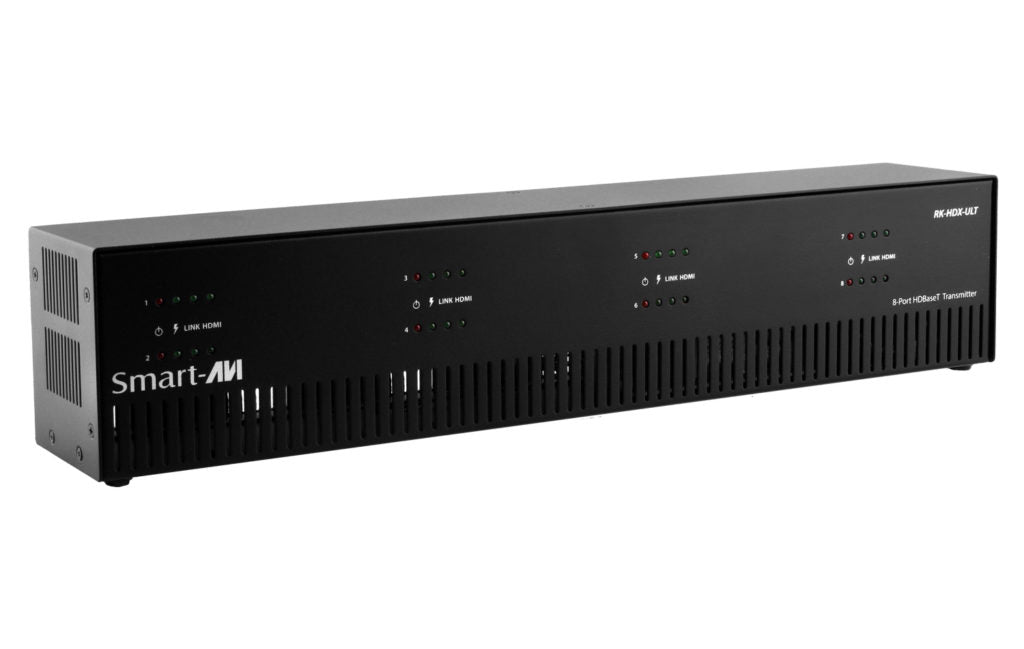

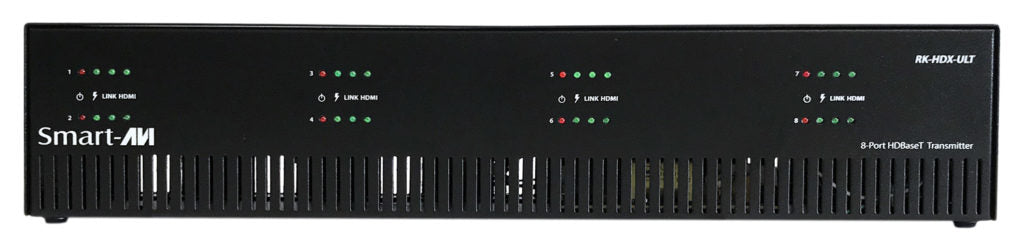

The SmartAVI RK8-HDX-ULT-S is a high-performance 8-port rackmount HDMI extender transmitter designed to deliver reliable 4K video, control, and power over a single Cat5e/6 cable. Built for enterprise AV environments, this solution consolidates up to eight HDMI extension channels into a single powered rack unit, reducing cable clutter and simplifying infrastructure.
Engineered for long-distance signal distribution, the RK8-HDX-ULT-S supports transmission up to 300 feet via PoE and up to 450 feet when both transmitter and receiver are powered. It ensures consistent ultra-high-definition performance with support for 4K resolution at 30Hz, along with full HDCP compliance and EDID learning for seamless integration.

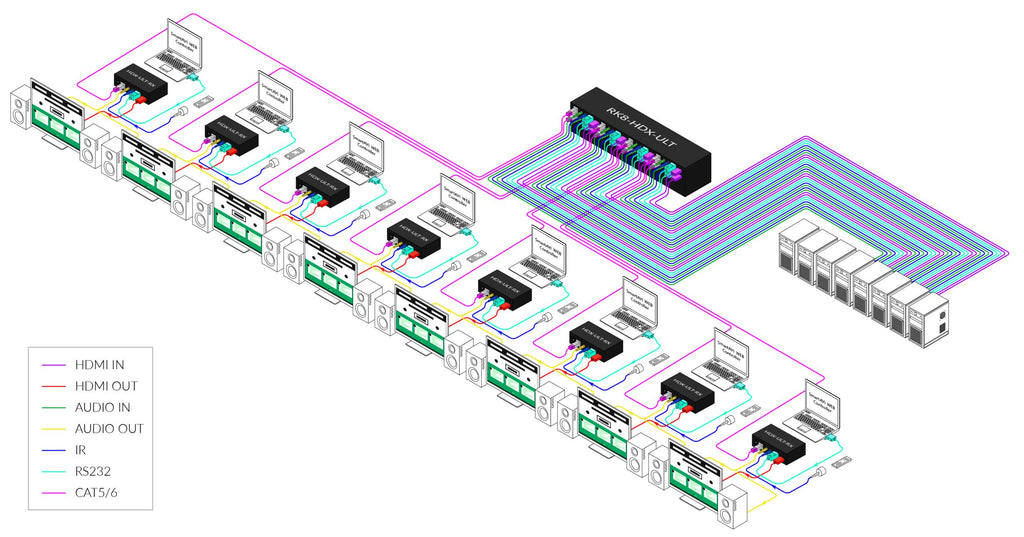

With integrated RS-232 and bi-directional IR control, this system enables centralized device management and remote operation across distributed environments. Ideal for control rooms, digital signage, education, and enterprise deployments, the RK8-HDX-ULT-S delivers scalable, rack-based HDMI extension with professional-grade reliability and performance.
| Specification | Details |
|---|---|
| Product Type | Rackmount HDMI Extender Transmitter |

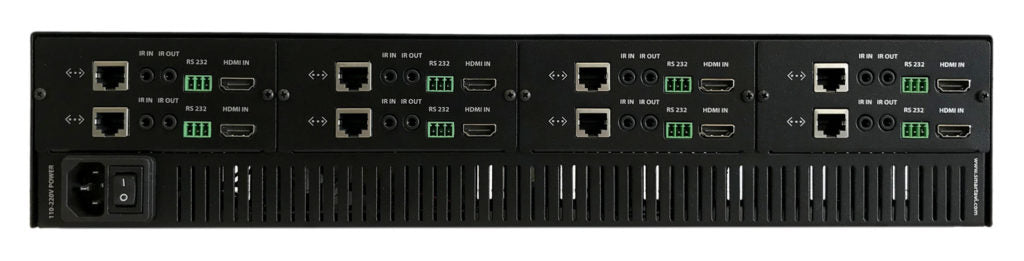

| Ports | 8 HDMI Inputs / 8 RJ45 Outputs |
| Video Format | HDMI 1.3, HDCP Compliant |
| Maximum Resolution | Up to 4K x 2K @ 30Hz |
| Supported Resolutions | 480i, 720p, 1080i, 1080p, 1920x1200, 4K |
| Transmission Distance | Up to 300 ft via PoE; up to 450 ft with powered endpoints |
| Cable Type | Cat5e / Cat6 |
| Bandwidth | Up to 10.2 Gbps |
| Color Depth | Deep Color 36/30/24-bit |
| Audio Support | PCM 8-channel, Dolby Digital, DTS-HD Master Audio |
| Control Interfaces | RS-232, Bi-directional IR |
| IR Frequency Range | 38kHz, 56kHz |
| EDID Support | EDID Learning |
| Power | 110–220V |
| Mounting | Rackmount |
| Dimensions | 17” W x 3.6” H x 3” D |
| Weight | 4.3 lbs |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 10% to 85% (non-condensing) |
| Compliance | UL, CE, RoHS |
| Included Components | Transmitter unit, power supply |
