Description

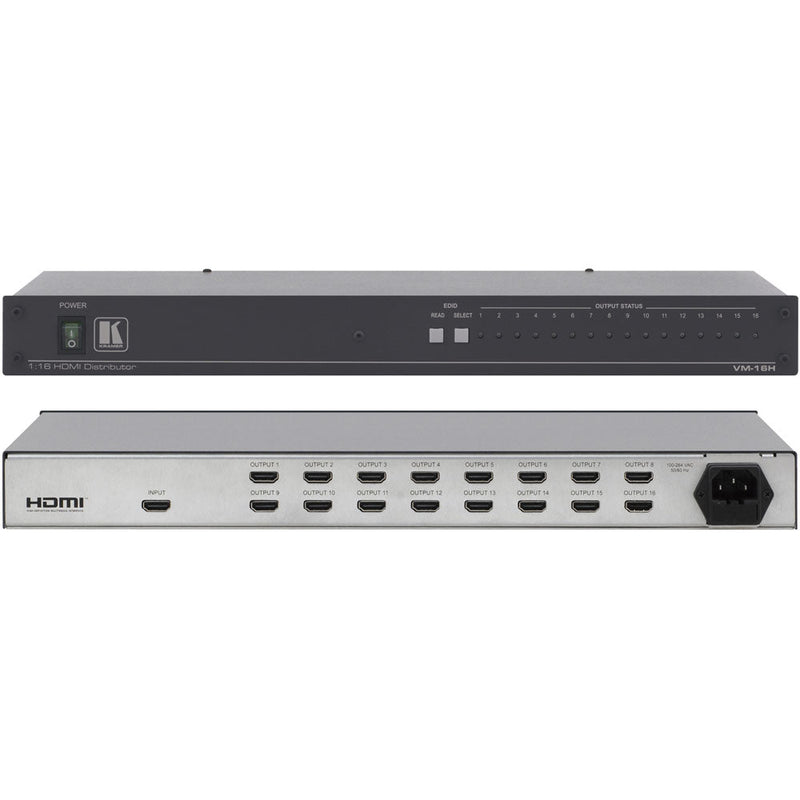

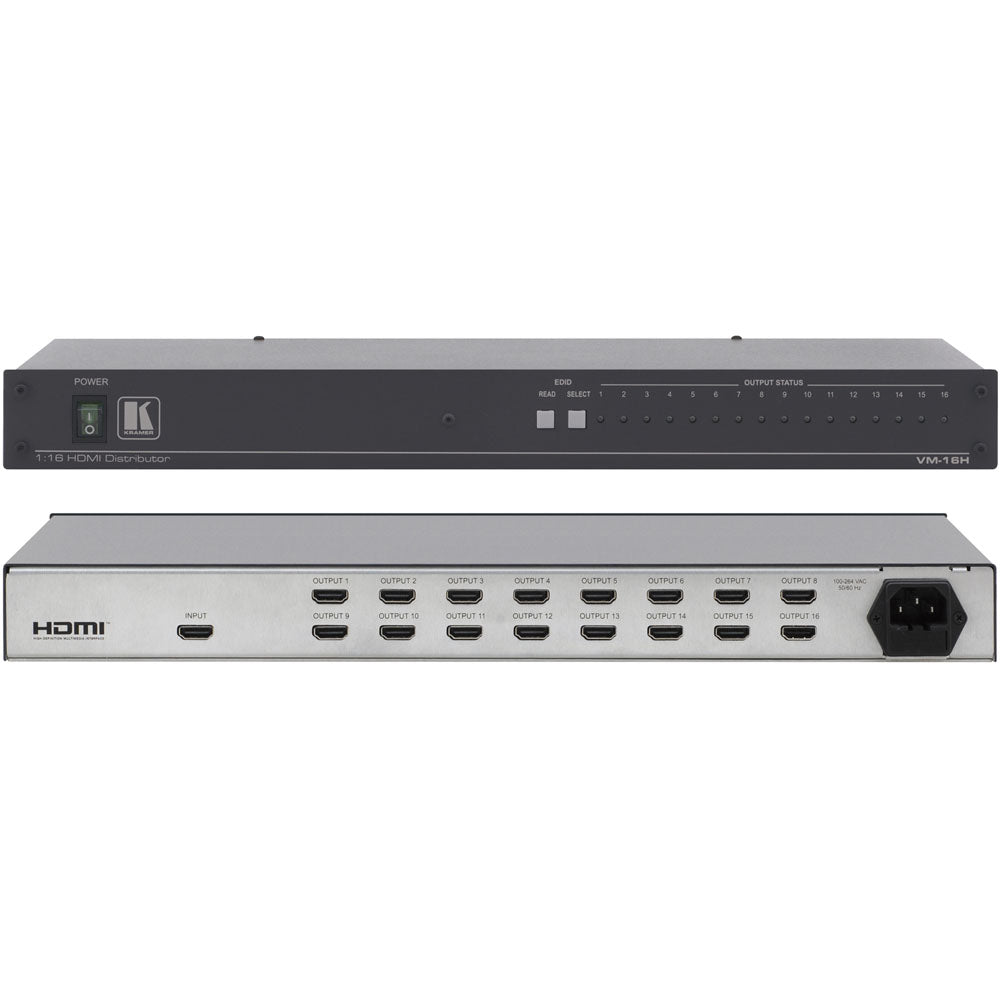

The Kramer VM-16H is a professional-grade 1:16 HDMI distribution amplifier designed for high-performance AV signal distribution in commercial, corporate, education, and digital signage environments. Engineered to maintain uncompromised signal integrity, the VM-16H reclocks and equalizes incoming HDMI signals before delivering them to 16 identical outputs. This ensures stable, high-quality transmission across longer distances without degradation.
Supporting a maximum data rate of 6.75Gbps (2.25Gbps per graphic channel), the VM-16H accommodates modern HDMI formats including Deep Color, x.v.Color™, Lip Sync, CEC, and 3D. Its EDID pass-through technology provides smooth plug-and-play operation between source devices and displays, while active output LED indicators simplify real-time status monitoring. Housed in a durable 1U rack-mount chassis with a universal 100–240V AC power supply, the VM-16H is a reliable choice for large-scale HDMI distribution applications.
| Category | Specification |
|---|---|
| Inputs | 1× HDMI connector |
| Outputs | 16× HDMI connectors |
| Max Data Rate | 6.75Gbps (2.25Gbps per graphic channel) |
| HDMI Compliance | HDMI & HDCP compliant; supports Deep Color, x.v.Color™, Lip Sync, CEC, 3D pass-through |
| Signal Processing | Kramer Equalization & re-Klocking™ technology |
| EDID Management | SELECT & READ buttons for selecting and storing EDID information; EDID pass-through |
| Indicators | Output status LEDs (1–16) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | −40°C to +70°C (−40°F to 158°F) |
| Humidity | 10% to 90% RHL (non-condensing) |
| Power Consumption | 100–240V AC, 50/60Hz, 48VA |
| Included Accessories | Power cord |
| Product Dimensions (W×D×H) | 19" × 9.34" × 1U (43.6cm × 23.72cm × 4.36cm) |
| Product Weight | 1.8kg (4.0lbs) approx. |
| Shipping Dimensions (W×D×H) | 52.50cm × 33.00cm × 10.70cm (20.67" × 12.99" × 4.21") |
| Shipping Weight | 3.2kg (7.1lbs) approx. |
