Description
The Kramer VS-161H is a professional-grade 16x1 HDMI switcher designed for high-performance AV routing in control rooms, digital signage, conference spaces, and production environments. Engineered to maintain exceptional signal integrity, it equalizes and switches any of its 16 HDMI inputs to a single HDMI output with reliable HDCP compliance and support for HDMI 1.2 features including Lip Sync and CEC.
With support for up to 1080p, deep color, and UXGA resolutions, the VS-161H ensures crisp, accurate visuals across a wide range of applications. Its flexible control options—front panel, RS-232, infrared remote, and Ethernet—provide seamless integration into both simple and advanced setups. EDID pass-through technology ensures smooth plug-and-play performance between varied sources and displays, while dual PC/DVD modes enhance compatibility.

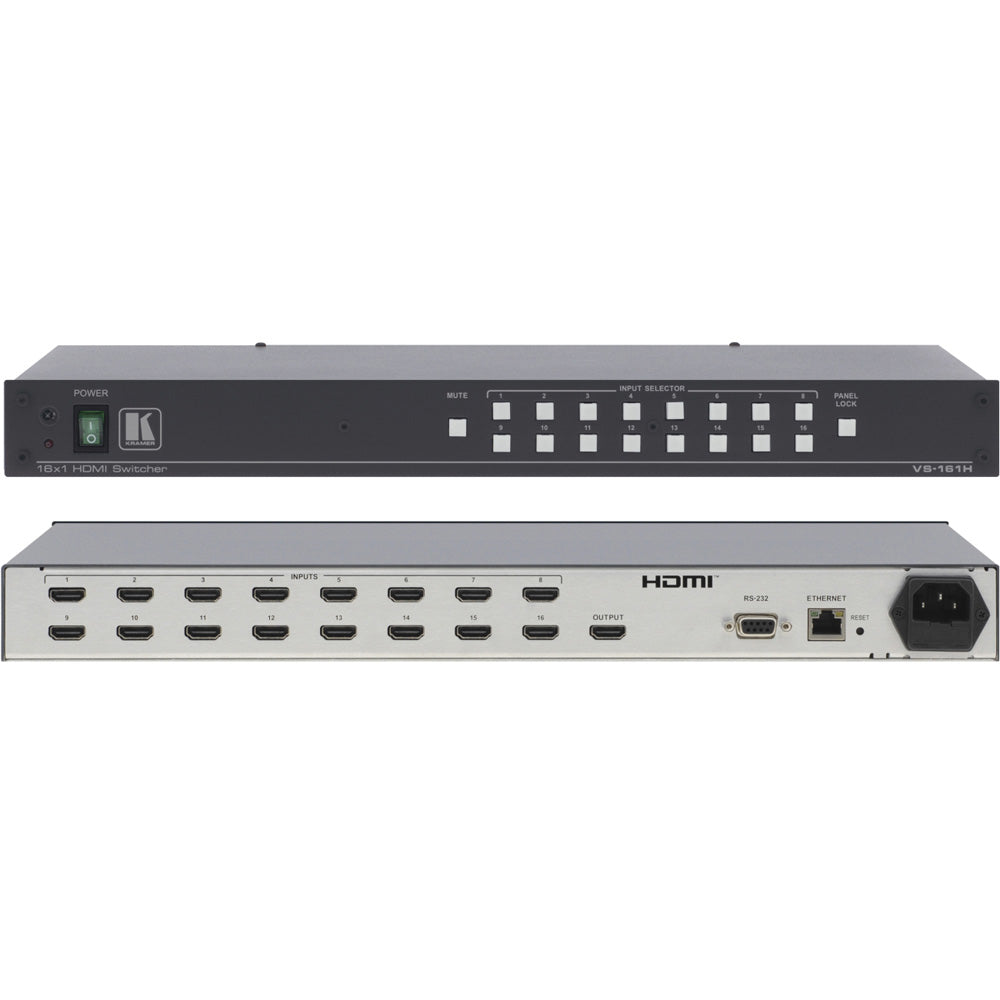

Built in a standard 1U 19-inch rack-mount form factor, the unit is ideal for enterprise-class systems requiring dependable switching, operational stability, and multi-input HDMI routing.
| Category | Details |
|---|---|
| Inputs | 16 × HDMI connectors |
| Output | 1 × HDMI connector |
| Max Data Rate | 4.95Gbps (1.65Gbps per graphic channel) |
| HDMI Standard Compliance | HDMI 1.2, HDCP compliant |
| Supported Resolutions | Up to UXGA; 1080p, deep color |
| EDID Handling | EDID pass-through |
| HDMI Features | Lip Sync, CEC |
| Dual Mode | PC mode & DVD mode |
| Control Options | Front panel buttons, IR remote, RS-232, Ethernet |
| Features | Video disconnect, front panel lockout |
| Power Requirements | 100–240V AC, 50/60Hz, 22VA |
| Product Dimensions (W × D × H) | 19" × 7.20" × 1U (43.6cm × 18.30cm × 4.36cm) |
| Product Weight | 1.8kg (4.0lbs) approx. |
| Shipping Dimensions | 55.00cm × 27.60cm × 10.70cm |
| Shipping Weight | 2.9kg (6.3lbs) approx. |
| Included Accessories | Power cord |
| Optional Accessories | Kramer HDMI cables |
