Description

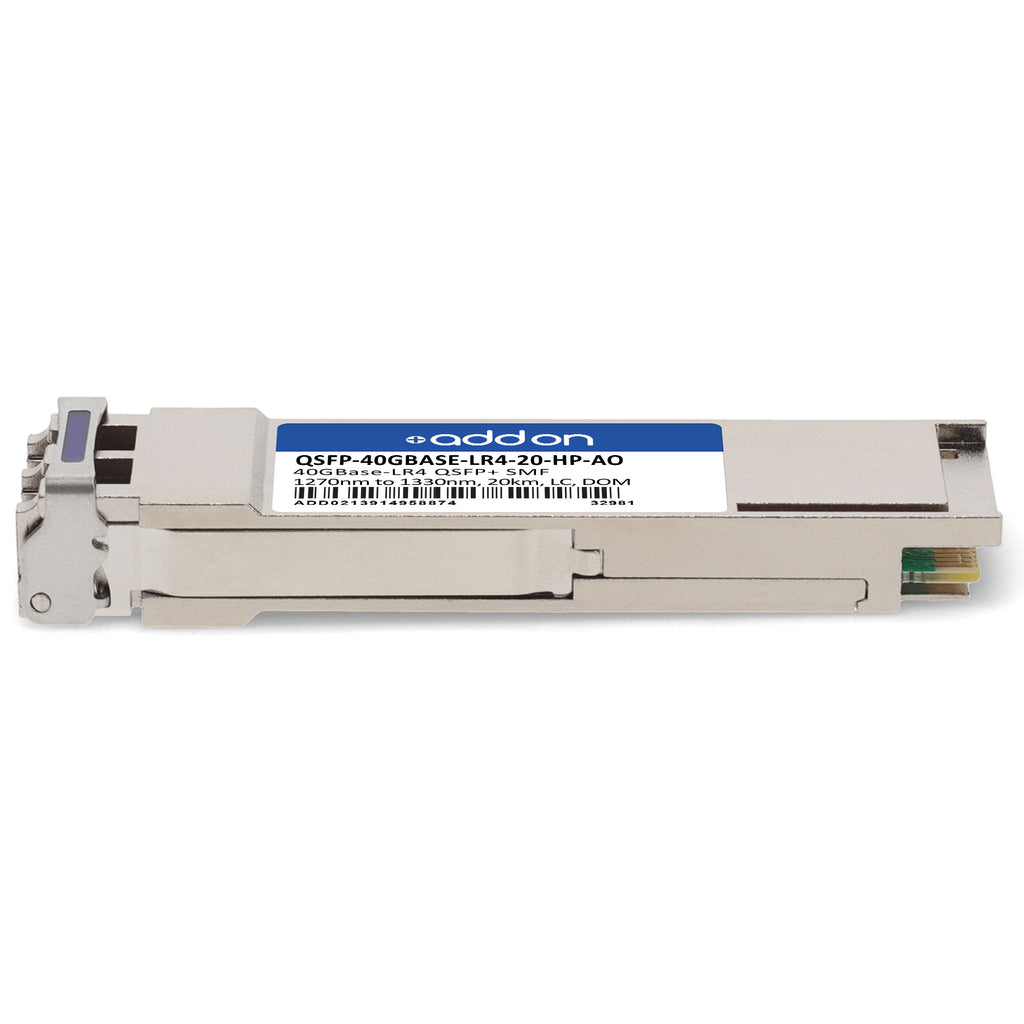

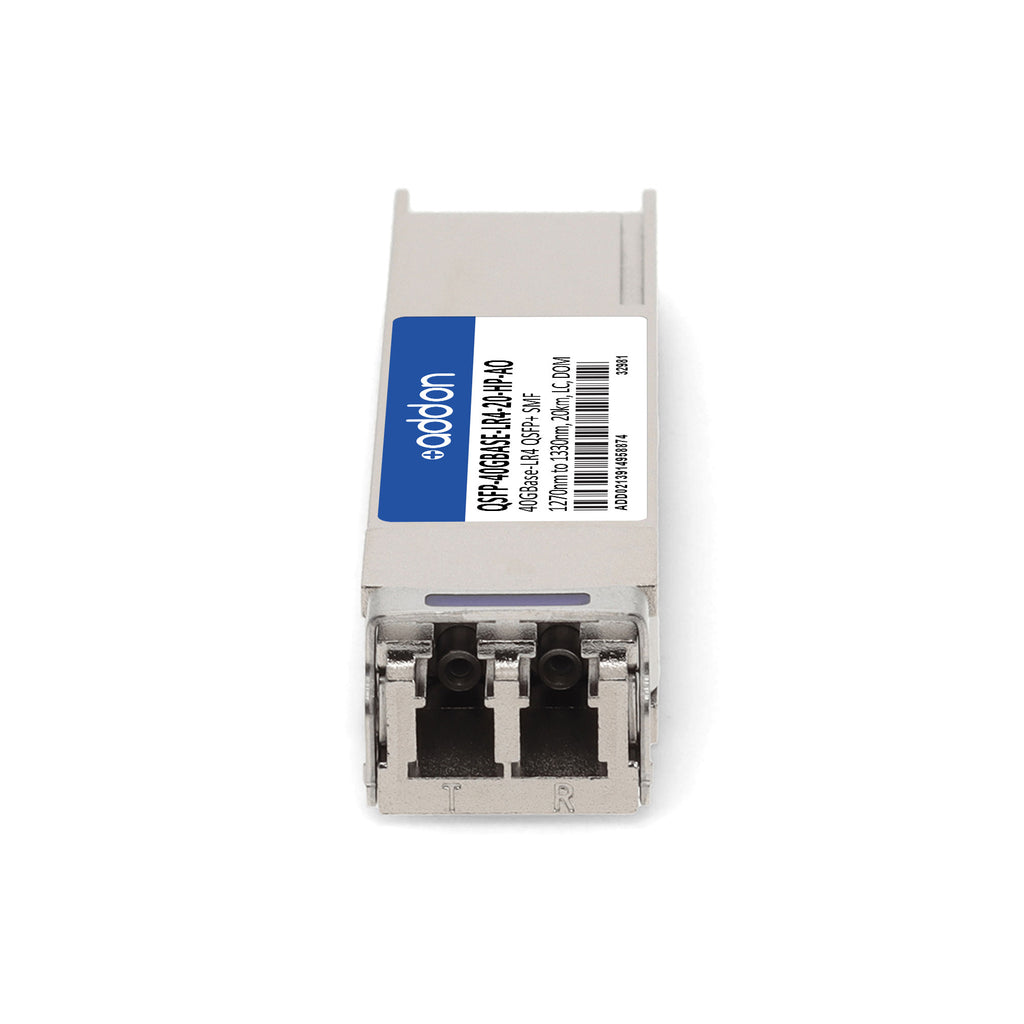

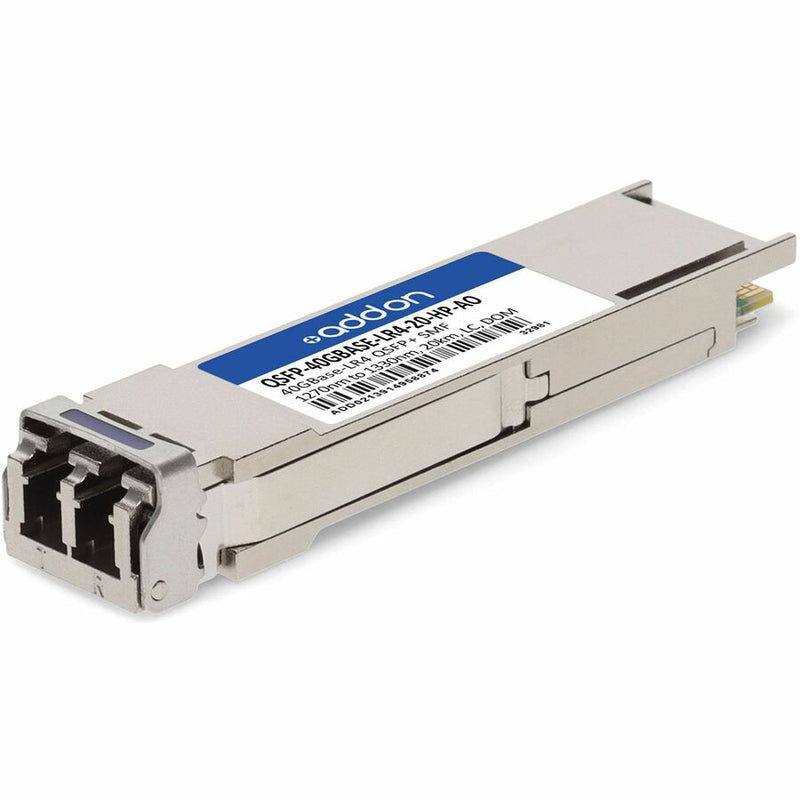

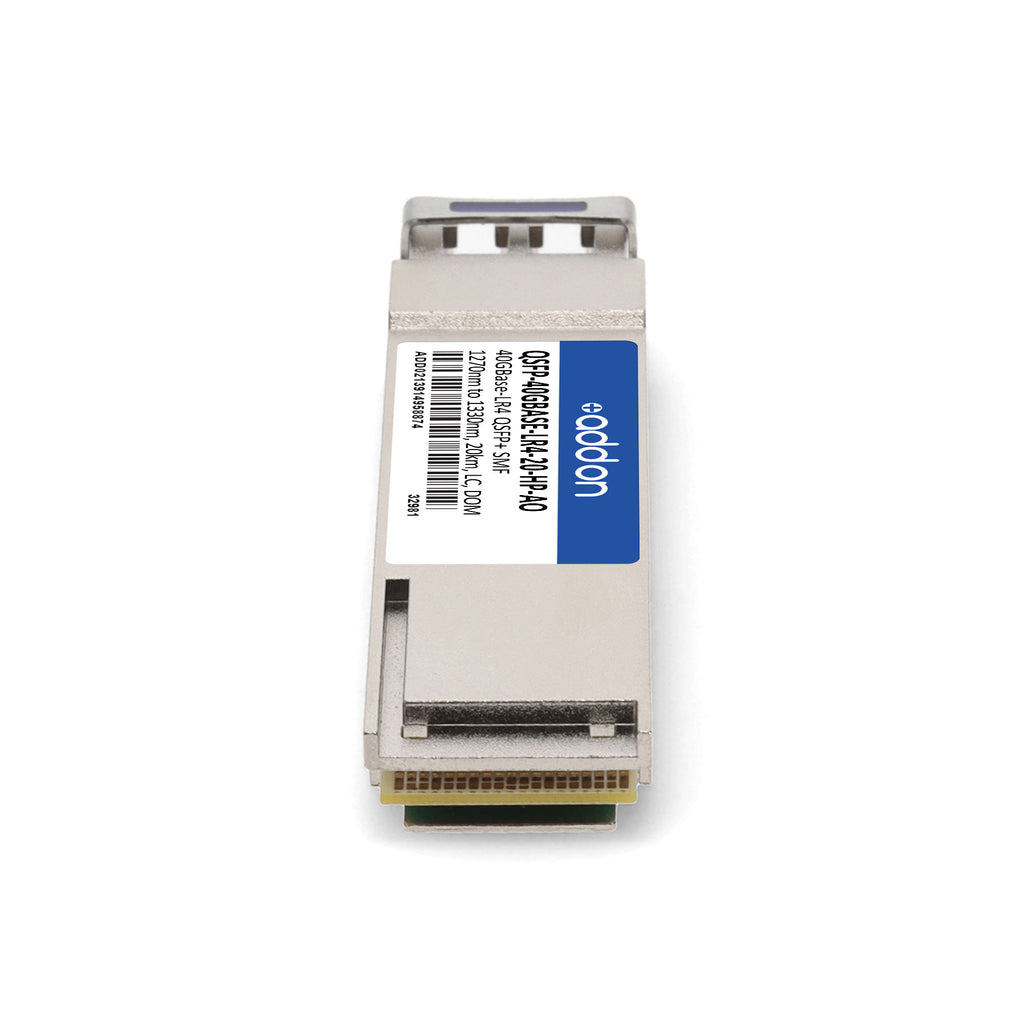

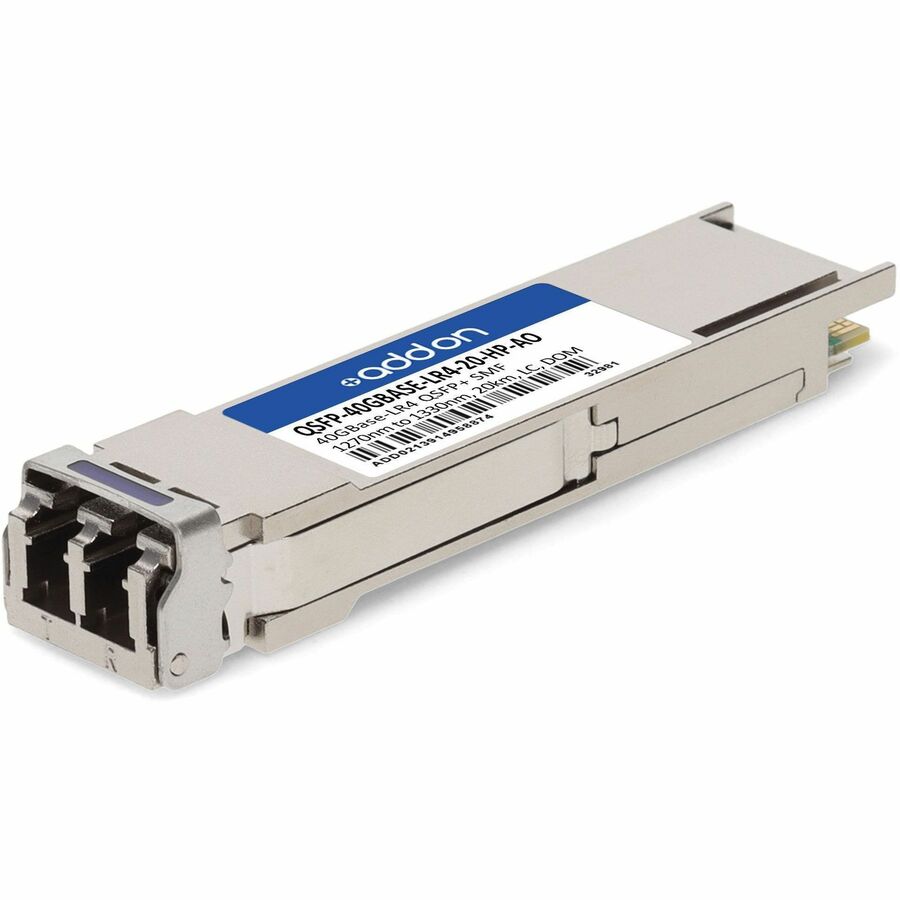

This HP® compatible QSFP+ transceiver provides high-performance 40GBase-LR4 Ethernet connectivity with a reach of up to 20km over single-mode fiber (SMF) using wavelengths from 1270nm to 1330nm via an LC connector. Built to meet or exceed OEM specifications, it is 100% compatible with HP® network equipment and supports seamless integration in existing infrastructures.
The transceiver is hot-swappable and features Digital Optical Monitoring (DOM) for real-time performance diagnostics. It adheres to IEEE 802.3ba, QSFP+ MSA, and SFF-8436 standards and is equipped with 4 CWDM DFB channels, PIN photo detectors, and a 4-lane CWDM mux/demux design. With a maximum per-lane data rate of 11.1Gbps and reliable performance across an operating temperature range of 0°C to 70°C, this TAA-compliant, RoHS-compliant, lead-free transceiver delivers dependable performance for demanding data center, enterprise, and telecom applications.
| Parameter | Specification |
|---|---|
| SKU | QSFP-40GBASE-LR4-20-HP-AO |
| Compatible OEM | HP® |
| Form Factor | QSFP+ |
| Data Rate | Up to 11.1 Gbps per channel (40G aggregate) |
| Wavelength | 1270nm – 1330nm |
| Reach / Distance | Up to 20km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | LC Duplex |
| Channels | 4 CWDM DFB transmitters, 4 CWDM PIN detectors |
| Compliance | IEEE 802.3ba, QSFP+ MSA, SFF-8436 |
| DOM Support | Yes |
| Hot Swappable | Yes |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Dissipation | 3.5 W max |
| Supply Voltage | 3.3 V |
| TAA Compliant | Yes |
| RoHS Compliant | Yes |
| Laser Safety | Class 1 |
| Launch Optical Power (per lane) | -3 dBm to +2.3 dBm |
| Receiver Sensitivity (OMA) | -11.5 dBm |
| Receiver Damage Threshold | +3.3 dBm |
| Extinction Ratio | ≥ 3.5 dB |
| Connector Interface | LC Duplex |
| Warranty | Limited Lifetime Warranty |
