Description

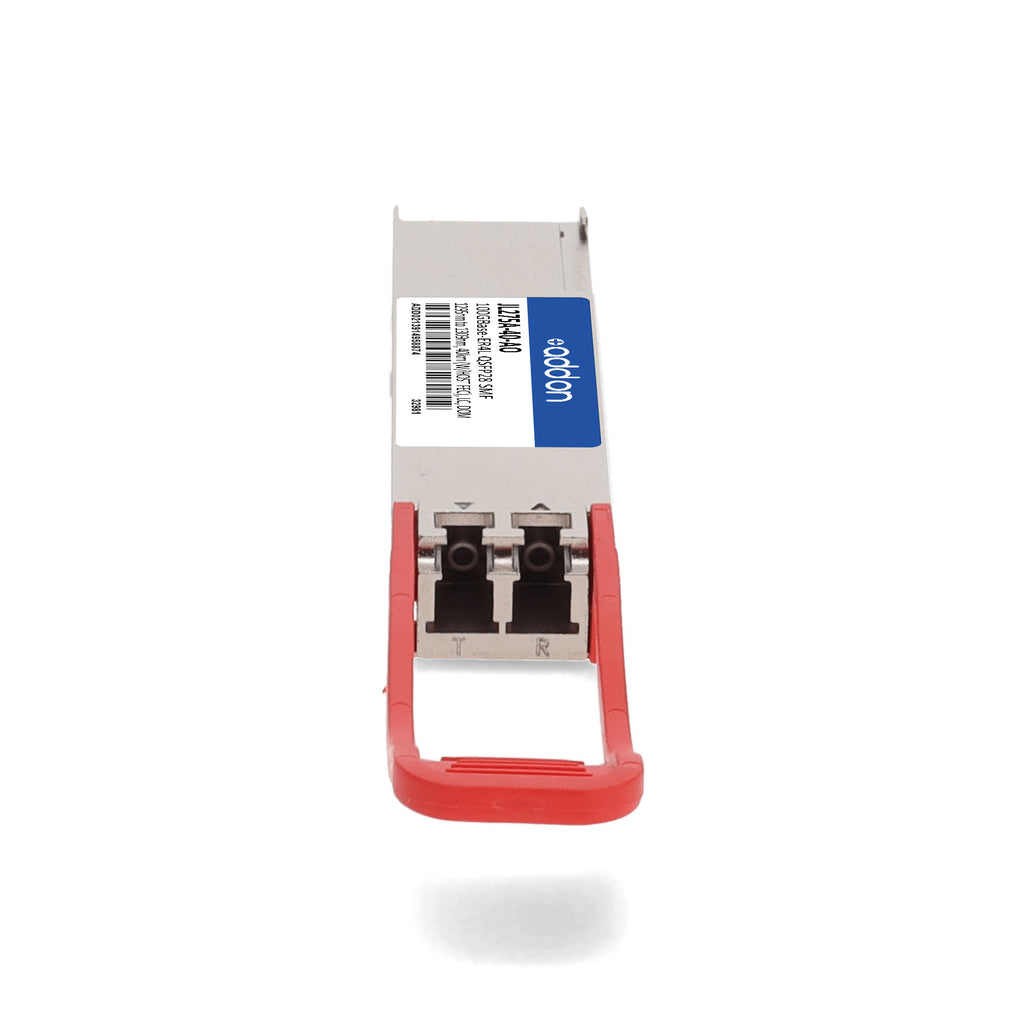

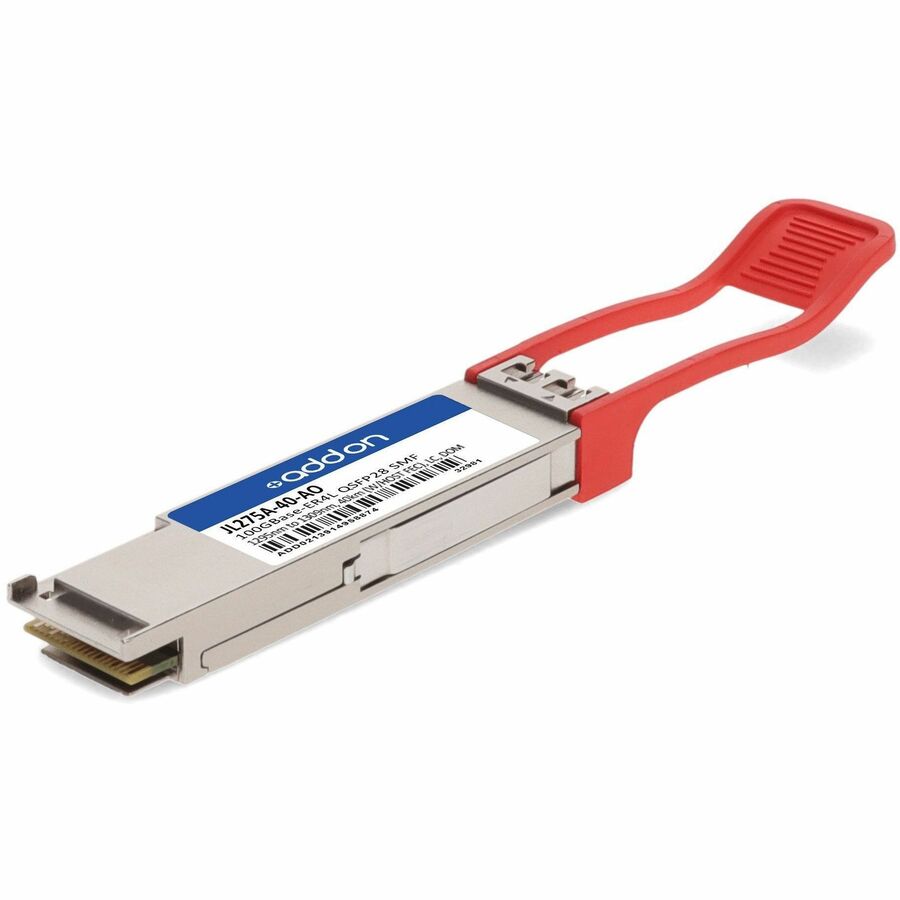

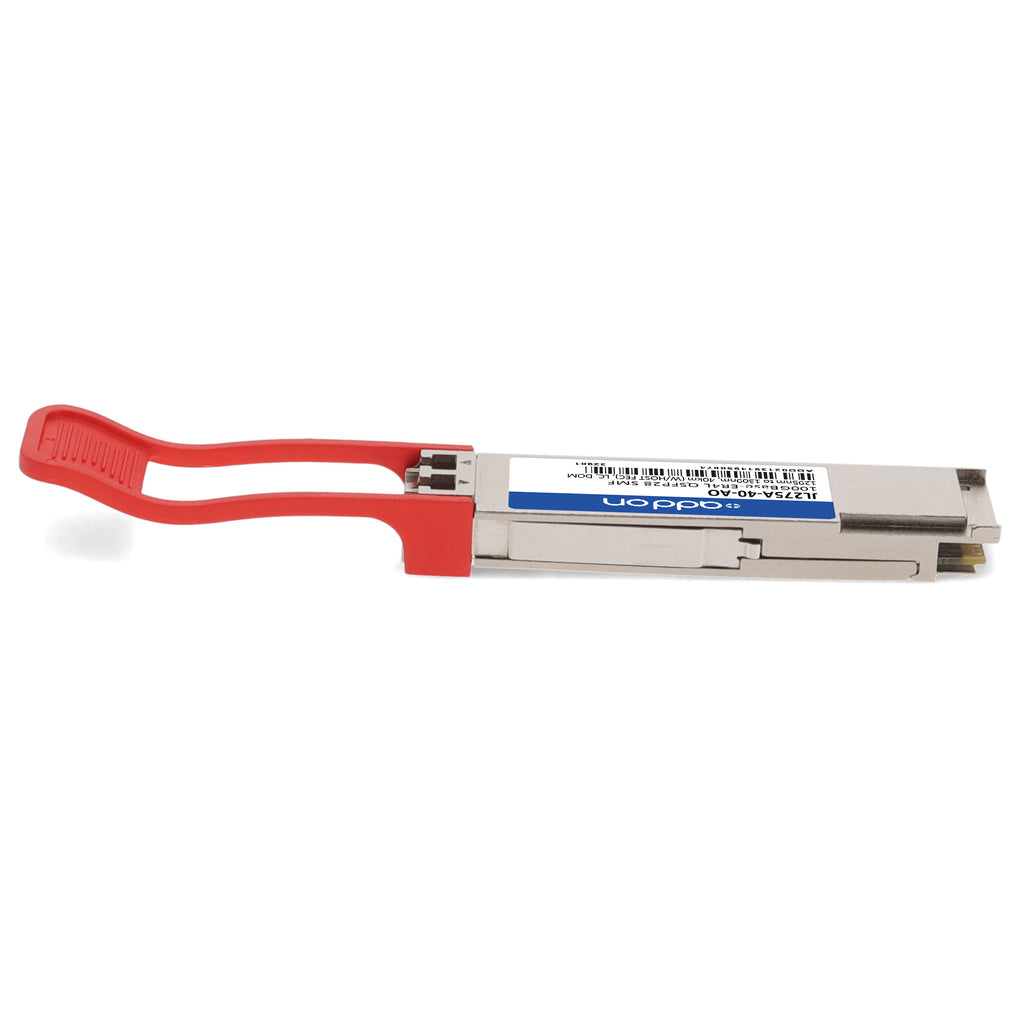

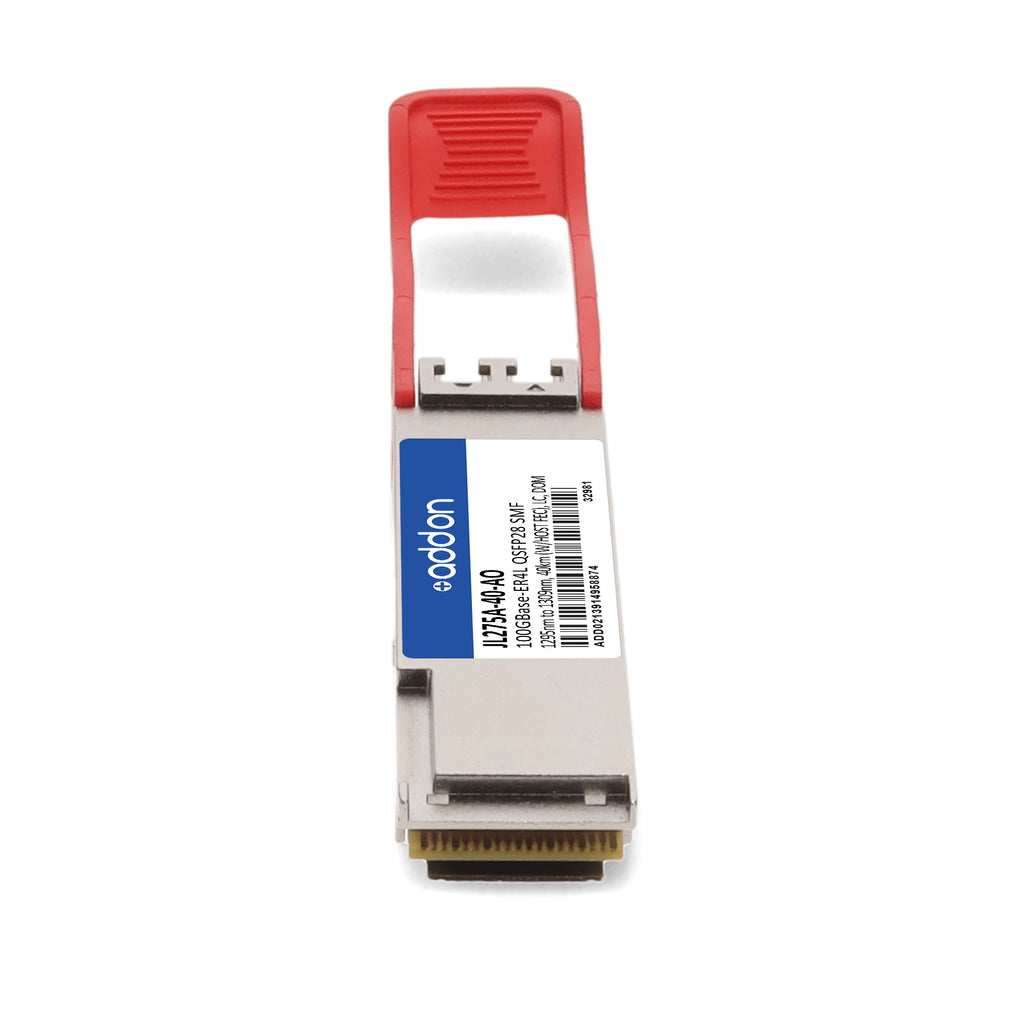

The AddOn HP® JL275A-40 Compatible TAA 100GBase-ER4 QSFP28 Transceiver delivers high-performance 100Gbps Ethernet connectivity over single-mode fiber (SMF) with a maximum reach of 40km (with host FEC). Operating across wavelengths from 1295nm to 1309nm via a duplex LC connector, this hot-swappable, easy-to-install optical module ensures seamless integration and reliable performance in HP networking environments.
Engineered to meet or exceed OEM specifications, each transceiver is programmed, uniquely serialized, and rigorously tested for full data-traffic and application compatibility. It includes Digital Optical Monitoring (DOM) for real-time monitoring of critical operating parameters, ensuring optimized network performance.
Compliant with SFF-8665, RoHS, and TAA standards, this transceiver is ideal for 100G Ethernet, access, and enterprise applications. Built with robust ESD protection, low EMI metal housing, and a commercial temperature range (0 °C to 70 °C), it offers exceptional reliability and longevity backed by AddOn’s limited lifetime warranty.
| Specification | Description |
|---|---|
| SKU | JL275A-40-AO |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-ER4 |
| Wavelength Range | 1295nm – 1309nm |
| Reach / Distance | Up to 40km (with host FEC) |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Digital Optical Monitoring (DOM) | Supported |
| Compliance Standards | SFF-8665, TAA, RoHS 2.0, FCC Part 15 Subpart B, EN55022:2010 |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Power Supply Voltage | 3.135V – 3.465V |
| Power Dissipation | 4.5W (Max) |
| Launch Optical Power (Per Lane) | -2.9 to +2.9 dBm |
| Total Launch Optical Power | +8.9 dBm |
| Receiver Sensitivity (OMA) | -16.6 dBm (no FEC) / -20.5 dBm (with FEC) |
| Extinction Ratio | ≥ 8.0 dB |
| Applications | 100G Ethernet, Access Networks, Enterprise Networks |
| Hot-Pluggable | Yes |
| ESD Protection | MIL-STD-883E Method 3015.4 compliant |
| EMI Shielding | Metal enclosure with low EMI |
| Warranty | Limited Lifetime Warranty |
