Description

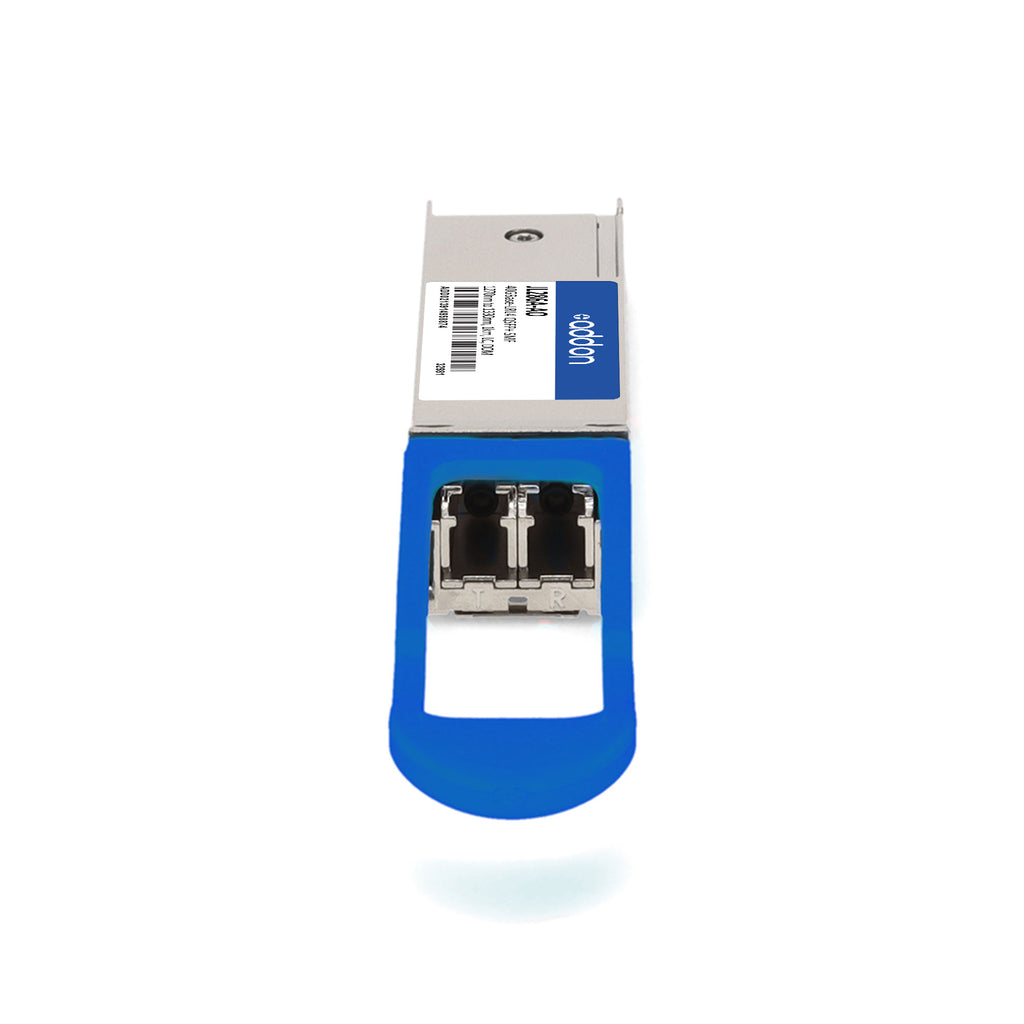

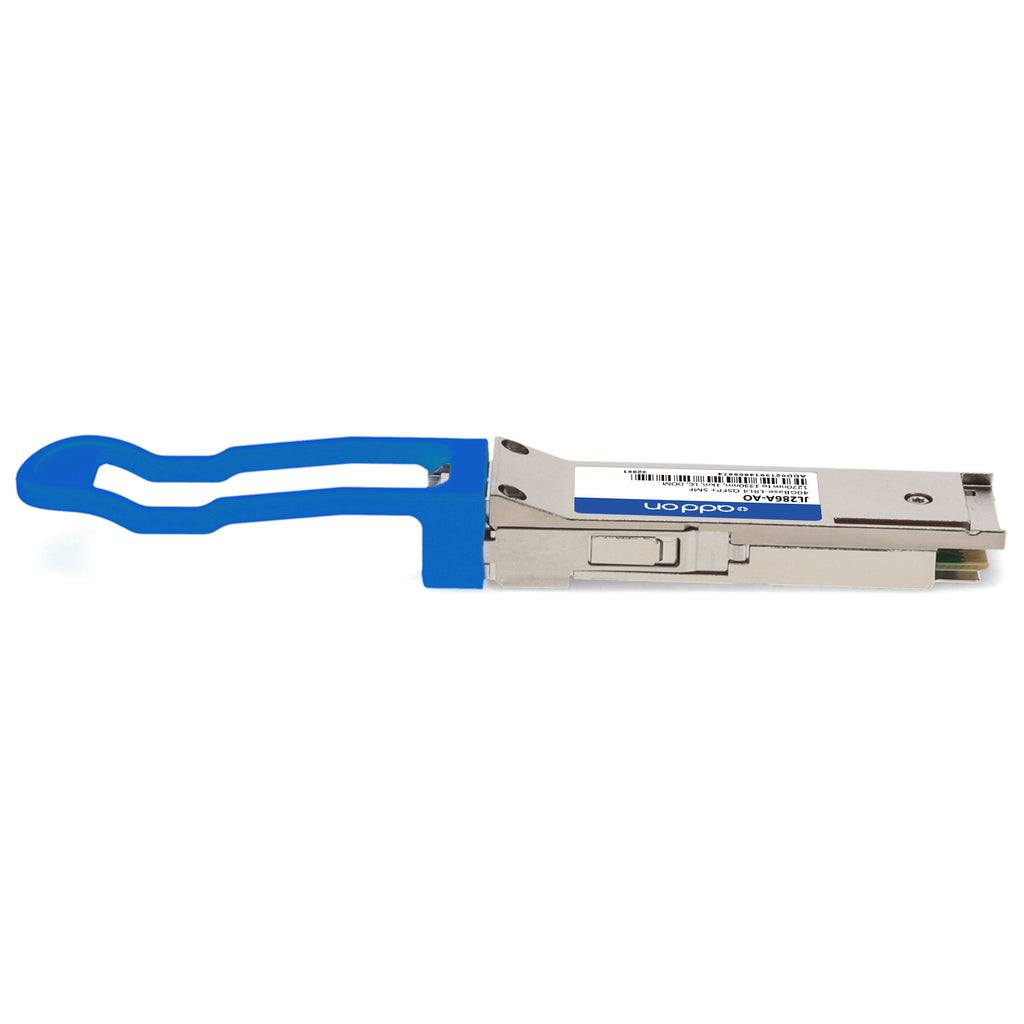

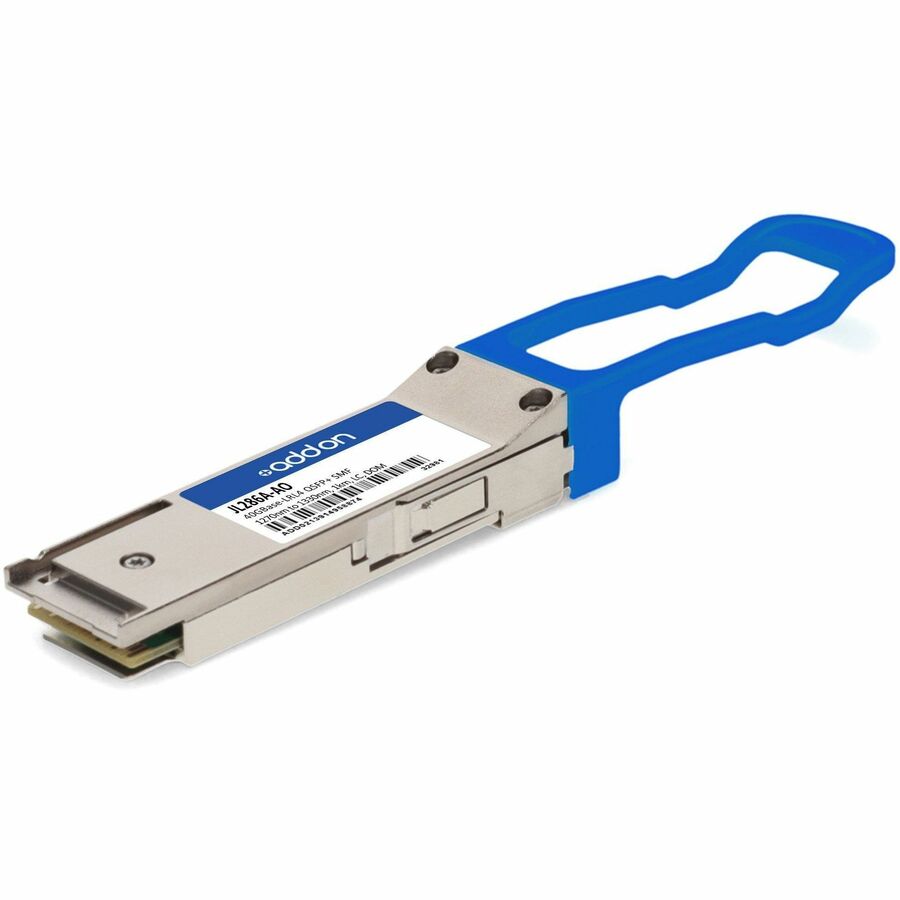

The AddOn HP® JL286A Compatible TAA 40GBase-LRL4 QSFP+ Transceiver delivers high-performance, reliable 40 GbE connectivity for data center, enterprise, and network backbone applications. Designed for seamless interoperability with HP® equipment, this transceiver supports data rates up to 40 Gbps over single-mode fiber (SMF) at distances up to 2 km using wavelengths ranging from 1270 nm to 1330 nm via a duplex LC connector.
Built to SFF-8436 standards, the module is hot-pluggable, RoHS compliant, and Trade Agreements Act (TAA) compliant for government procurement. It also features Digital Optical Monitoring (DOM) for real-time diagnostics of key parameters like temperature, supply voltage, and optical power, ensuring maximum performance and reliability.
Each transceiver is fully tested, uniquely serialized, and guaranteed 100% compatible with the original HP® part. Backed by AddOn’s limited lifetime warranty, it’s the ideal solution for cost-effective, high-speed optical networking.
| Specification | Details |
|---|---|
| Compatible OEM | HP® |
| Compatible Part Number | JL286A |
| Form Factor | QSFP+ |
| Data Rate (Per Lane) | 10.3125 – 11.2 Gbps |
| Aggregate Data Rate | 40 Gbps |
| Wavelength Range | 1270 nm – 1330 nm |
| Distance / Reach | Up to 2 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Compliance | SFF-8436, RoHS, TAA |
| Temperature Range | 0 °C to 70 °C (Commercial) |
| Power Supply Voltage | 3.135 V – 3.465 V |
| Power Consumption | 3.5 W (Typical) |
| Digital Diagnostics (DOM) | Supported |
| Hot-Swappable | Yes |
| EMI Shielding | Metal housing with low EMI |
| Applications | 40GBase Ethernet, Access, Enterprise |
| Warranty | Limited Lifetime |
