Description

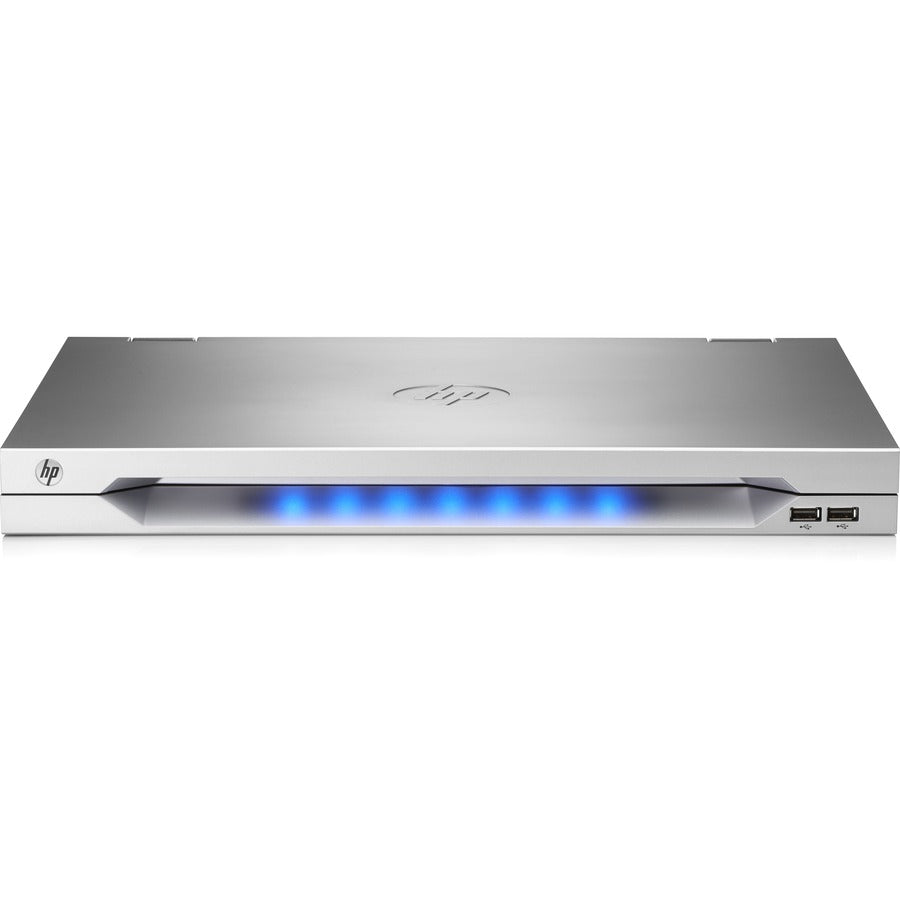

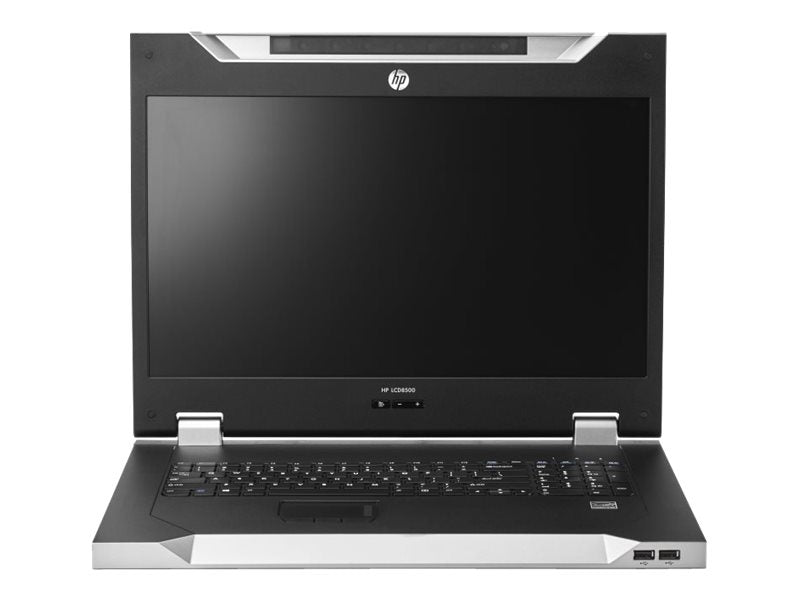

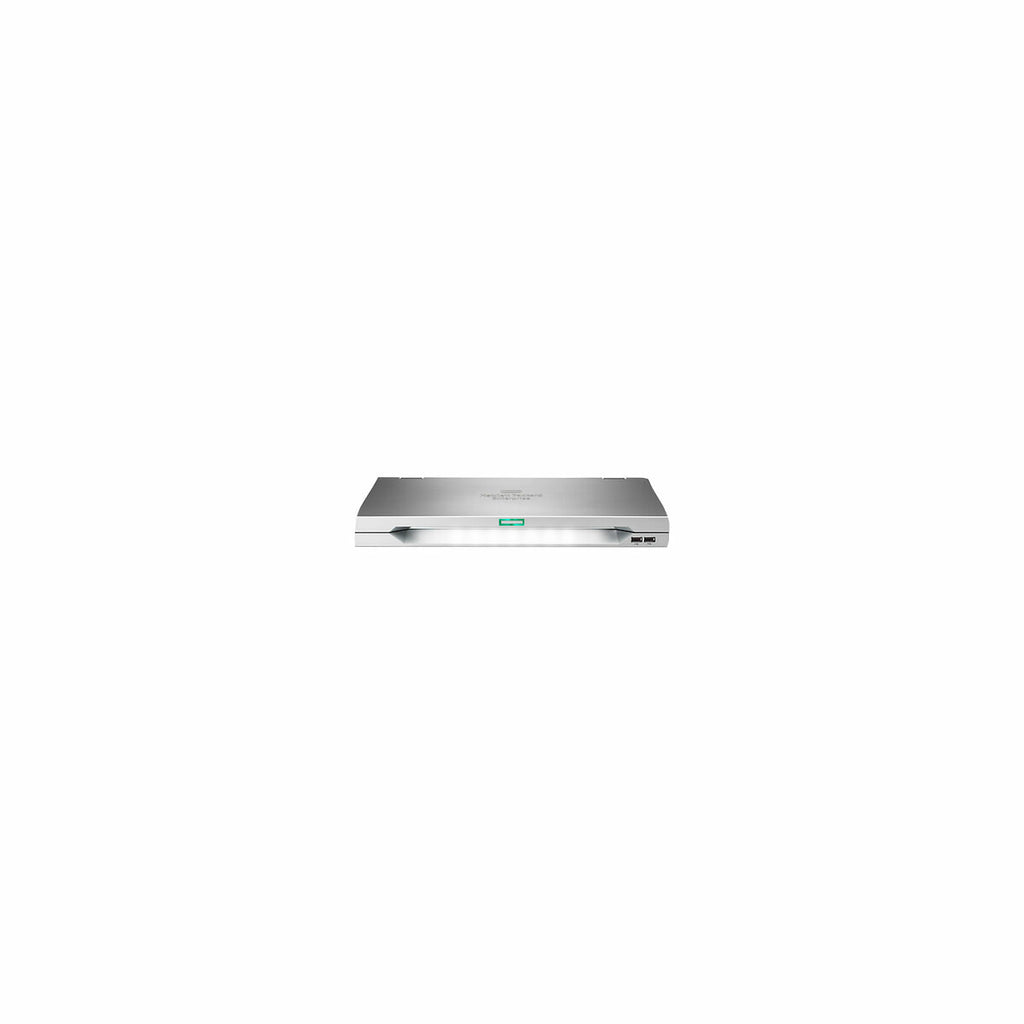

Maximize control and visibility in your server environment with the HPE LCD8500 1U Rackmount Console Kit. Designed for enterprise data centers, this ultra-dense, high-performance KVM console integrates a vibrant 18.5-inch WXGA TFT LCD Brightview display, full keyboard, and touchpad into a sleek 1U rack-mountable form factor. It supports resolutions up to 1600 x 1200 @ 60 Hz and features an ergonomic silver enclosure, making rack identification effortless.
The LCD8500 includes two front-side USB pass-through ports for virtual media use, advanced lid switch power management to extend the life of the panel, and tool-less rail kits for simple installation. Ideal for managing HPE ProLiant and MicroServer systems, the AF630A console is a space-saving solution for IT administrators who need direct access to their rack-mounted servers.
| Specification | Details |
|---|---|
| Model Number | AF630A |
| Form Factor | 1U Rack-Mountable |
| Display Type | 18.5" WXGA TFT LCD Brightview |
| Resolution | 1600 x 1200 @ 60 Hz |
| Brightness | 187 cd/m² |
| Contrast Ratio | 700:1 |
| Response Time | 16 ms |
| Color | Silver |
| Input Interfaces | USB |
| Enclosure Dimensions | 1.66 x 17.17 x 17.05 in (HxWxD) |
| Weight | 11.43 lb (5.19 kg) |
| Power Management | Lid Switch Display Management |
| Front USB Ports | 2 x USB pass-through |
| Compatible Servers | HPE 11000 G2 Series, DL20 Gen9, DL580 Gen9, ML110 Gen9, ML350p Gen8, MicroServer Gen8 |
| Warranty | 3-Year Limited (Parts Only) |
