Description

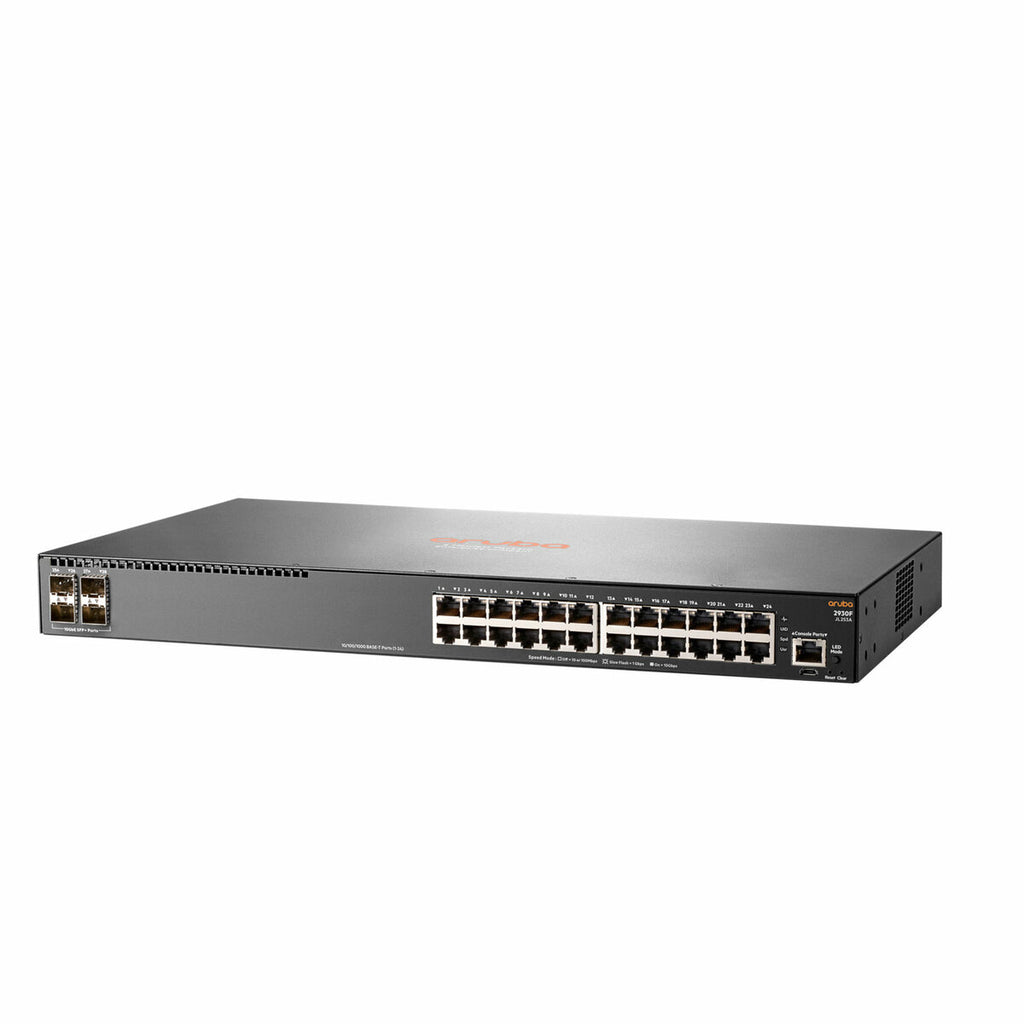

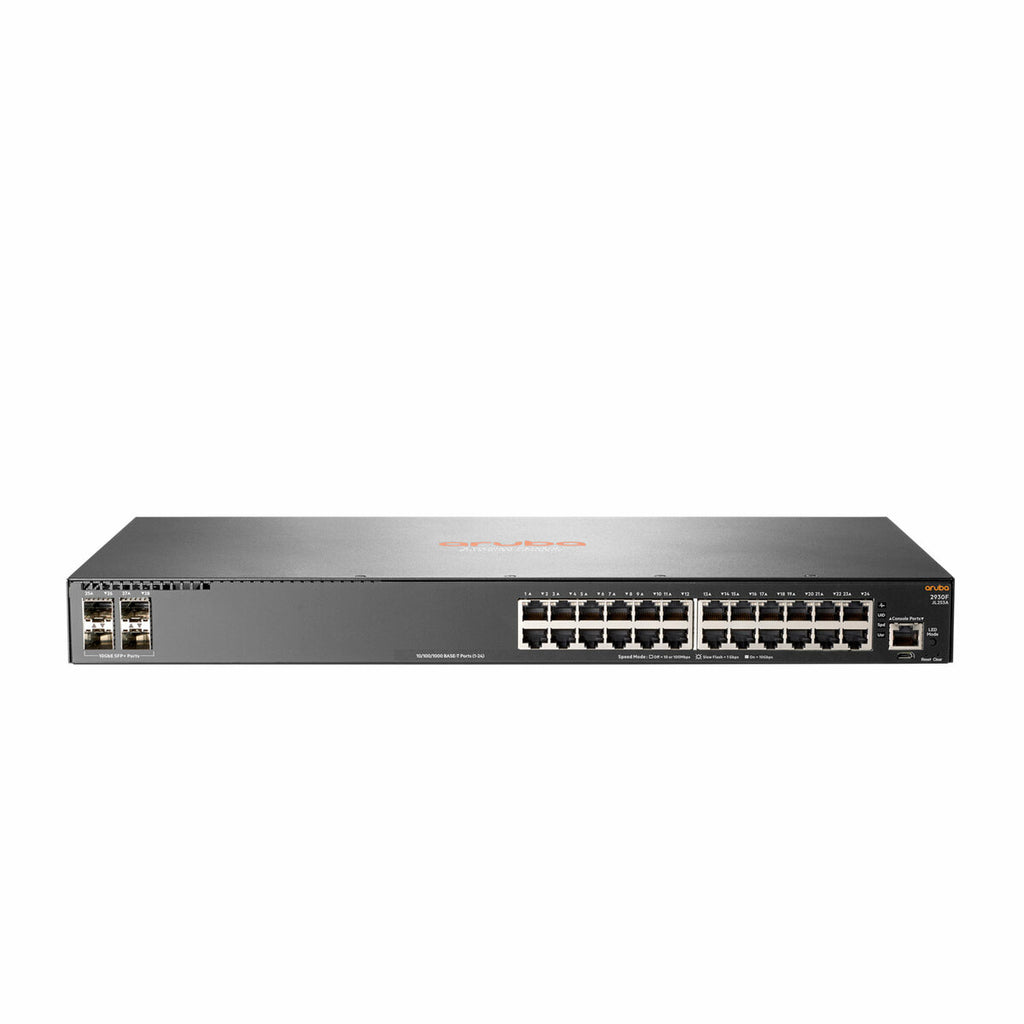

The HPE Aruba Networking 2930F 24G 4SFP Switch (JL259A#ABG) is a high-performance, Layer 3 managed switch purpose-built for enterprise edge, SMB, and branch networks. With 24 Gigabit RJ-45 ports and 4 SFP uplink ports, it offers secure, scalable connectivity with robust features such as advanced QoS, ACLs, RIP routing, and stacking support.
Ideal for digital workplaces, the 2930F switch integrates with Aruba Central, ClearPass Policy Manager, and AirWave for unified network management. Designed with a ProVision ASIC for SDN optimization, it delivers low latency, increased packet buffering, and adaptive power consumption — all without the need for software licensing.
| Specification | Details |
|---|---|
| Model Number | JL259A#ABG |
| Ports | 24 x 10/100/1000 RJ-45 + 4 x Gigabit SFP (uplink) |
| Layer | Layer 3 |
| Switching Capacity | 56 Gbps |
| Throughput | Up to 41.7 Mpps |
| Latency | < 3.8 µs at 1000 Mbps |
| Stacking | Up to 8 switches via Virtual Switching Framework (VSF) |
| Memory & Processor | Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3, 4 GB eMMC |
| Packet Buffer | 12.38 MB total (4.5 MB ingress / 7.875 MB egress) |
| Management | Web GUI, CLI, SNMP, Telnet, AirWave, Central, IMC |
| PoE Support | Not applicable (non-PoE model) |
| Input Voltage | 100–127/200–240 VAC (auto-ranging) |
| Power Consumption | 29.3W max |
| Heat Dissipation | 100 BTU/hr (approx. 105.5 kJ/hr) |
| Form Factor | Rack-mountable (1U) |
| Dimensions (W x D x H) | 17.42 x 7.88 x 1.73 in (44.24 x 20.02 x 4.39 cm) |
| Weight | Approx. 2.86 kg (6.3 lbs) |
| Warranty | Limited Lifetime Warranty |
