Description

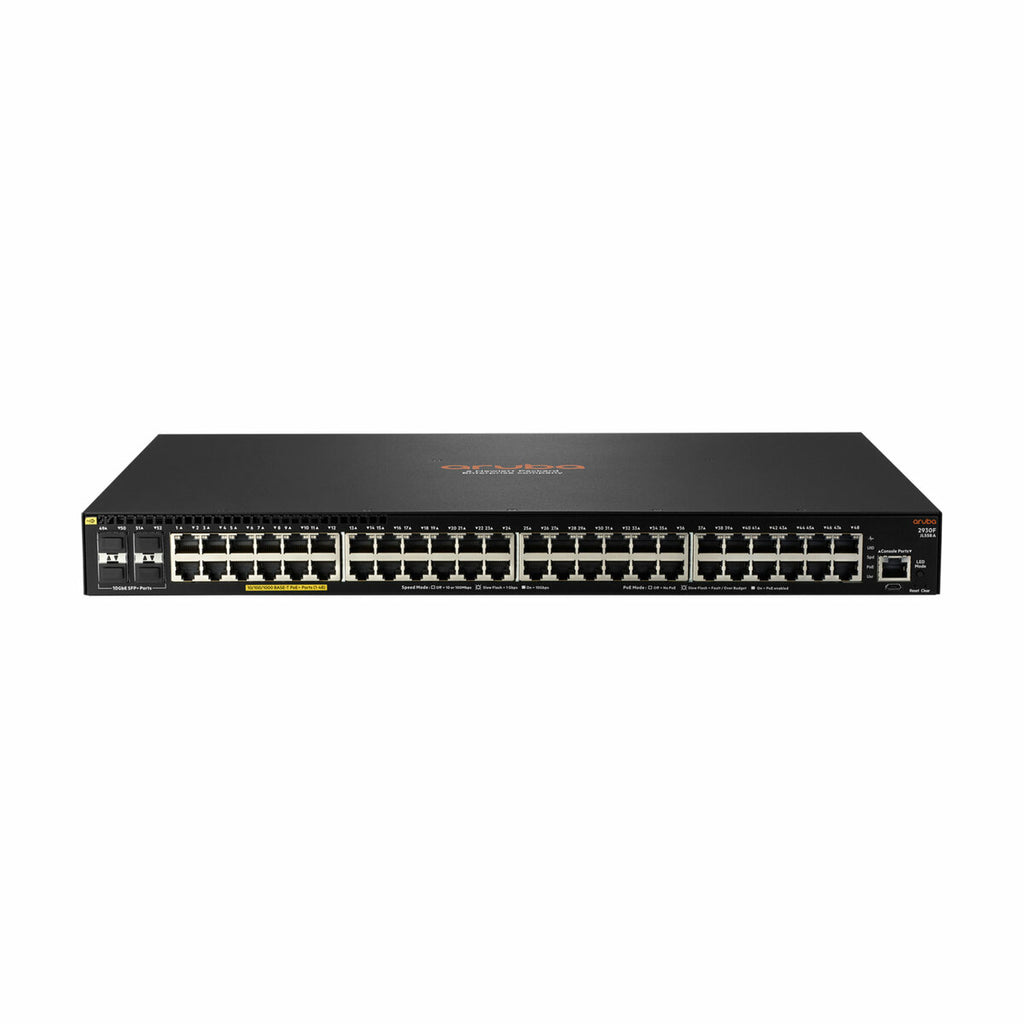

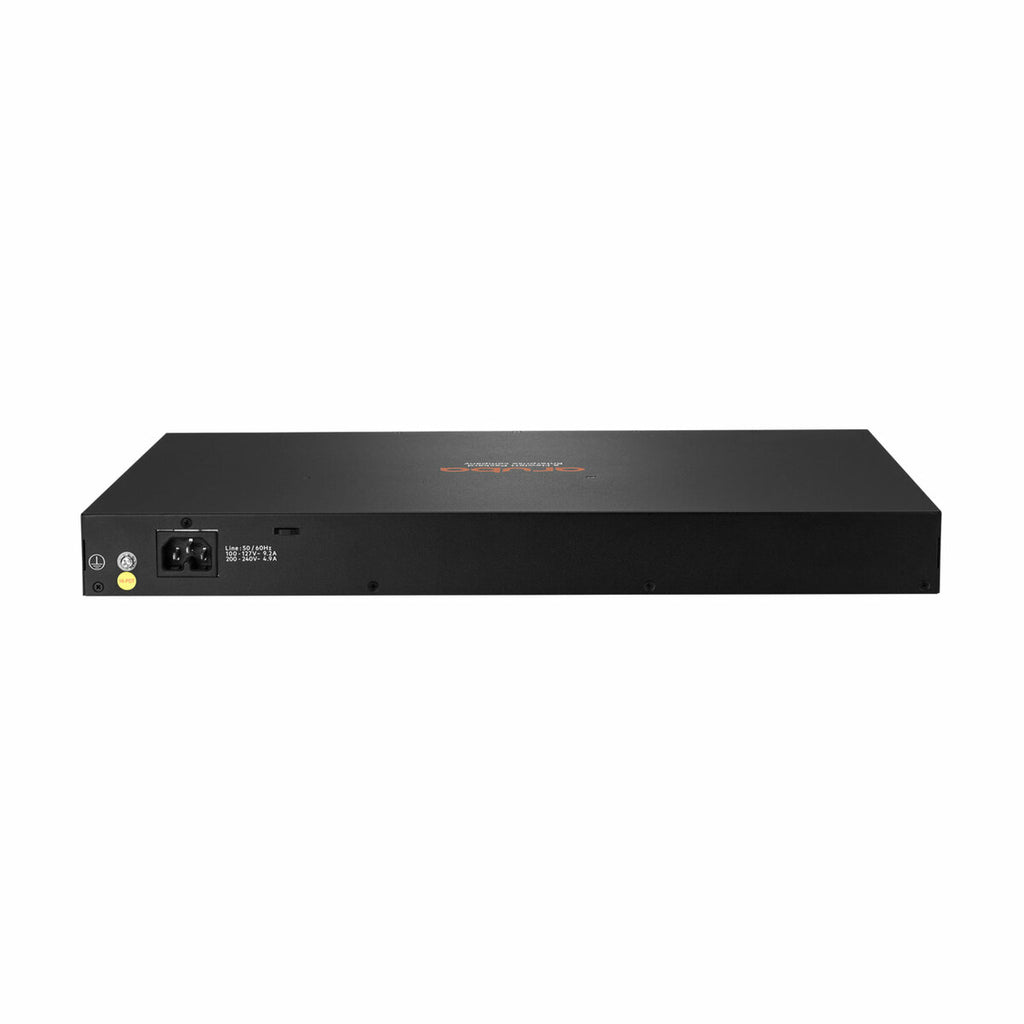

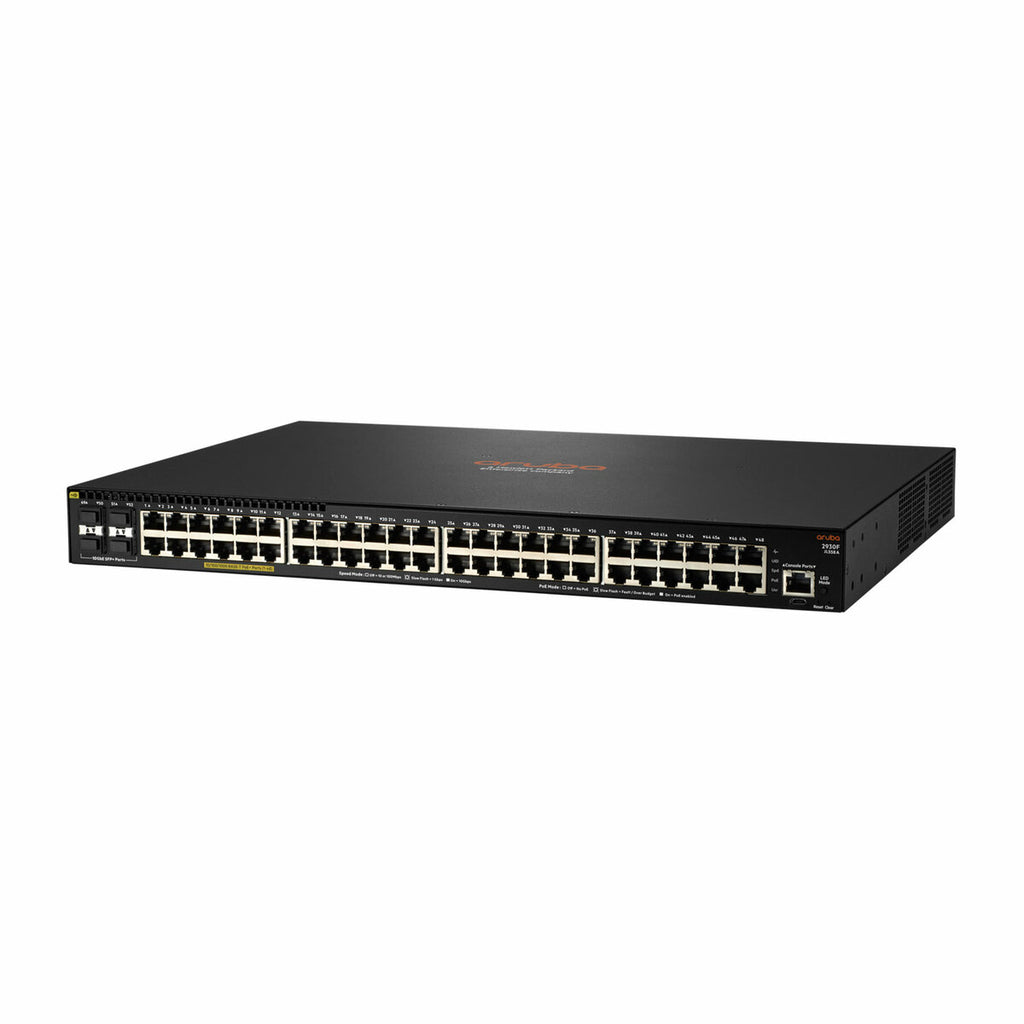

The HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch is a robust Layer 3 stackable switch built to meet the needs of the mobile-first digital workplace. Ideal for enterprise edge, branch, and SMB deployments, it combines simplicity, scalability, and performance. Featuring 48 Gigabit PoE+ ports, 4 10GbE uplinks, and up to 740W of PoE+ power, this switch enables seamless integration of IP phones, wireless access points, and IoT devices. Manage your network with confidence using Aruba Central, AirWave, or ClearPass, while automating operations via REST APIs and VSF stacking.
With support for Access OSPF, RIP, ACLs, sFlow, and robust security protocols like 802.1X and MAC authentication, the 2930F offers the power, flexibility, and security your network demands—with no software licensing required.
| Specification | Details |
|---|---|
| Product SKU | JL558A#B2B |
| Ports | 48 × RJ-45 autosensing 10/100/1000 PoE+ ports, 4 × SFP+ 1/10GbE uplinks |
| PoE Power Budget | Up to 740W PoE+ |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Memory | 1 GB DDR3 SDRAM, 4 GB eMMC storage |
| Packet Buffer Size | 12.38 MB total (4.5 MB ingress / 7.875 MB egress) |
| Switching Capacity | 176 Gbps |
| Throughput | Up to 112 Mpps |
| Latency | < 3.8 µs @ 1GbE, < 1.6 µs @ 10GbE |
| Stacking | Up to 8 members with Virtual Switching Framework (VSF) |
| Management | Aruba Central, AirWave, ClearPass, CLI, SNMP, Web UI, REST APIs |
| Power Input | 100–127/200–240 VAC |
| Power Consumption (Max) | 980W |
| Heat Dissipation | 420.9 BTU/hr |
| Dimensions (WxDxH) | 17.42 x 12.77 x 1.73 in |
| Weight | 10.56 lb (4.79 kg) |
