Description

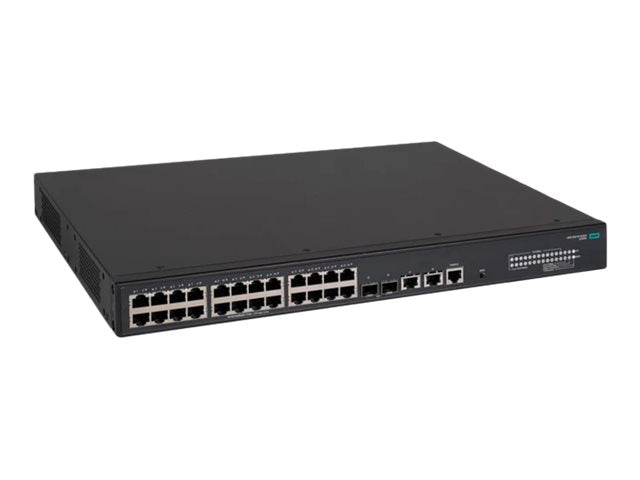

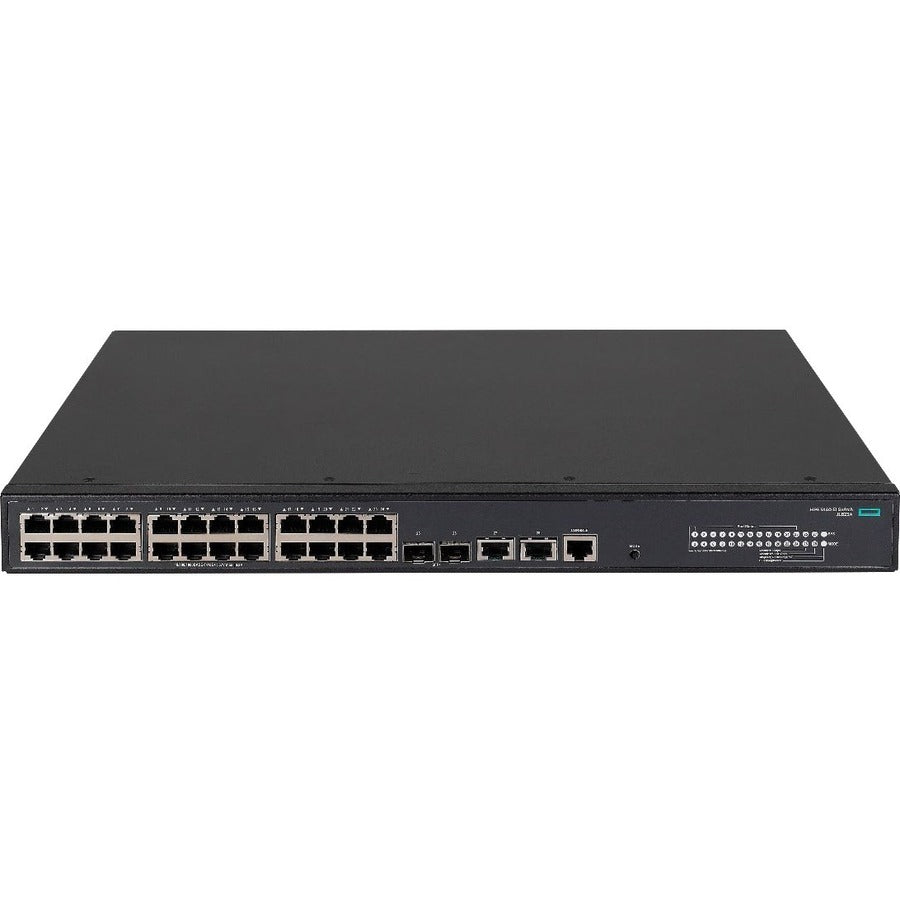

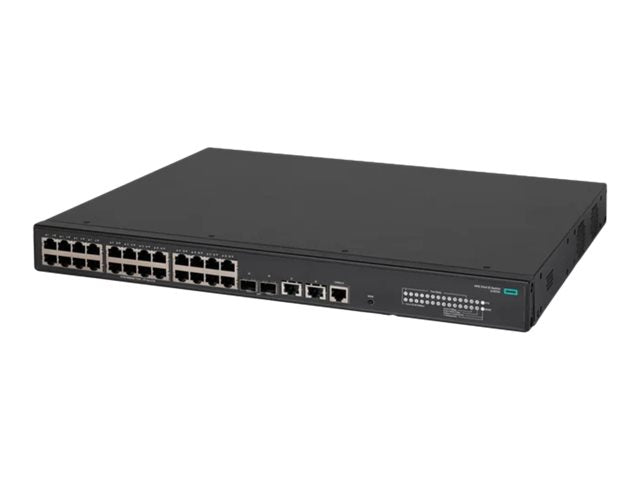

The HPE FlexNetwork 5140 EI 24G PoE+ Switch is a powerful, scalable Layer 3 access switch ideal for mid to large enterprise campus networks. Equipped with 24 Gigabit PoE+ ports, two 10G SFP+ uplinks, and two 10GBASE-T ports, this switch offers high availability, intelligent network resilience, and simplified management with SmartMC and HPE IMC.
It features HPE Intelligent Resilient Framework (IRF) for stacking, enterprise-grade security with dynamic ARP protection and advanced ACLs, and reliable Layer 3 static routing with RIP. With energy-efficient operation and a web-based GUI for centralized control, the 5140 EI Series is built for performance, flexibility, and ease of deployment.
| Specification | Details |
|---|---|
| Part Number | JL823A#ABA |
| Ports | 24 x 10/100/1000 RJ-45 autosensing2 x 10G SFP+ uplinks2 x 10GBASE-T |
| Console Port | 1 x RJ-45 serial |
| PoE Power Budget | Up to 370W (PoE+) |
| Switching Capacity | 128 Gbps |
| Throughput | 95 Mpps |
| Latency | < 5 µs @ 1G; < 3 µs @ 10G |
| MAC Address Table | 16,384 entries |
| Routing Table Size | 1024 entries |
| Stacking | IRF stacking up to 9 switches |
| Memory | 512 MB SDRAM; 256 MB Flash |
| Power Supply | Not included (order separately) |
| Input Voltage | 100 – 240 VAC |
| Power Consumption | Max: 420W; Idle: 24.5W |
| Heat Dissipation | Max: 1433 BTU/hr (approx. 88.2 kJ/hr) |
| Dimensions (WxDxH) | 17.32 x 12.6 x 1.72 in |
| Weight | 9.92 lbs |
| Management | SmartMC, HPE IMC, CLI, Web GUI, SNMP |
| Security Features | ACLs, MAC/802.1X Authentication, SSHv2, SSL, RADIUS/TACACS+, ARP Protection |
| QoS Features | SP, WRR, CAR, WRED, Broadcast Storm Control |
| Energy Efficiency | Energy Efficient Ethernet, idle port shutdown |
| Operating System | HPE Comware |
