Description

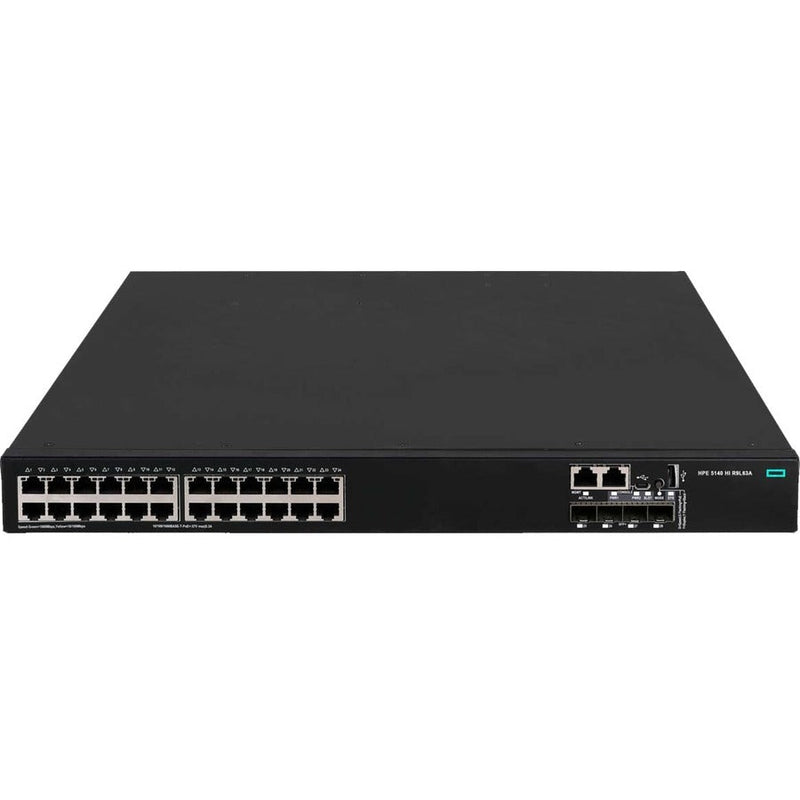

The HPE Networking Comware 5140HI 24G PoE+ Switch (R9L63A) is a high-performance Layer 2/3 access switch built to support medium to large enterprise campus networks. Equipped with 24 Gigabit PoE+ ports and 4 SFP+ 10GbE uplinks, it provides high-density connectivity, flexible expansion, and robust network services.
Ideal for converged environments, this switch supports advanced features like DRNI for resiliency, iNQA for real-time network health analytics, MACsec encryption, and Smart MC for centralized management. With a modular expansion slot and up to 720W PoE power, it's designed to support voice, video, wireless, and IoT deployments — all while ensuring enterprise-grade reliability and energy efficiency.
| Feature | Specification |
|---|---|
| Model Number | R9L63A |
| Switch Series | HPE Networking Comware 5140HI |
| Ports | 24 × 10/100/1000BASE-T PoE+ ports (IEEE 802.3at) |
| Uplinks | 4 × SFP+ 10GbE ports |
| Expansion Slots | 1 × module slot |
| PoE Power Budget | Up to 720W (30W per port max) |
| Switching Capacity | 288 Gbps |
| Throughput | 180 Mpps |
| Latency | <5 µs @1G / <3 µs @10G |
| MAC Address Table | 32K entries |
| Routing Table Size | 8K |
| Power Supply Slots | 2 (1 required, supports redundancy) |
| Idle Power Consumption | 31W |
| Max Power Consumption | 928W (dual AC, full PoE load) |
| Mounting | 1U rack-mountable (EIA 19") |
| Dimensions (WxDxH) | 17.32 x 18.11 x 1.71 in (44.00 x 46.00 x 4.36 cm) |
| Weight | ≤9.2 kg |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Management | Smart MC, CLI, SNMP, Web GUI, IMC compatible |
| Security Features | MACsec, ACLs, 802.1X, DHCP protection, RADIUS, TACACS+ |
| Resiliency | DRNI, IRF, dual redundant power, Smart Link |
| Warranty | Limited Lifetime Warranty |
