Description

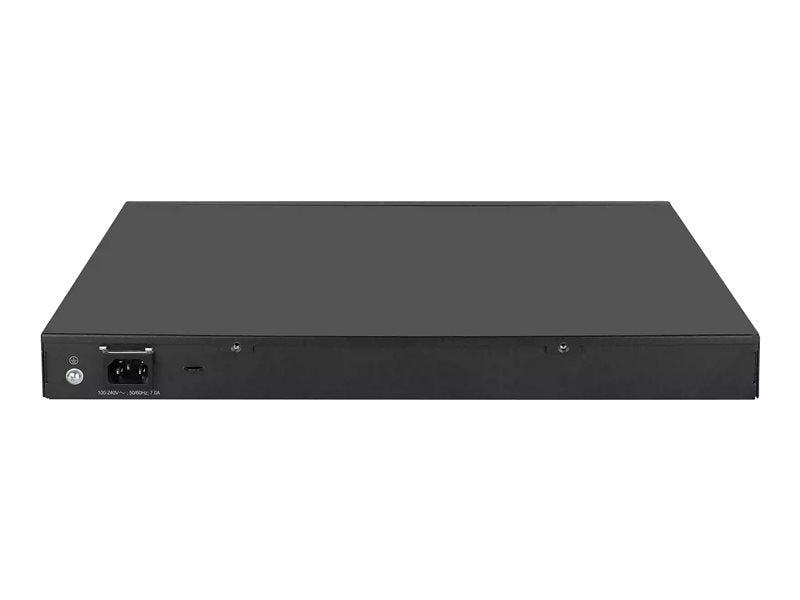

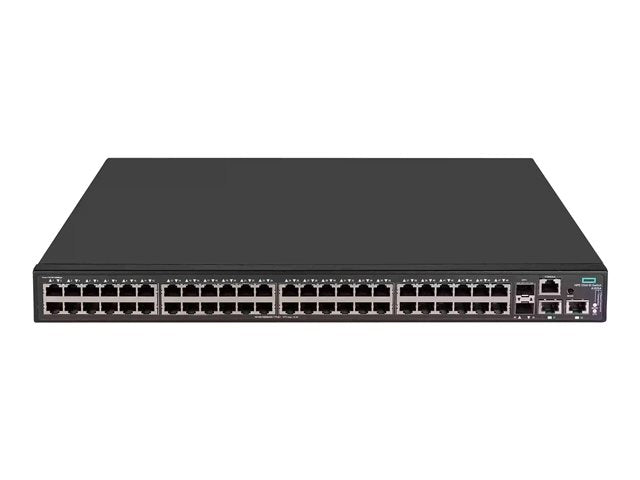

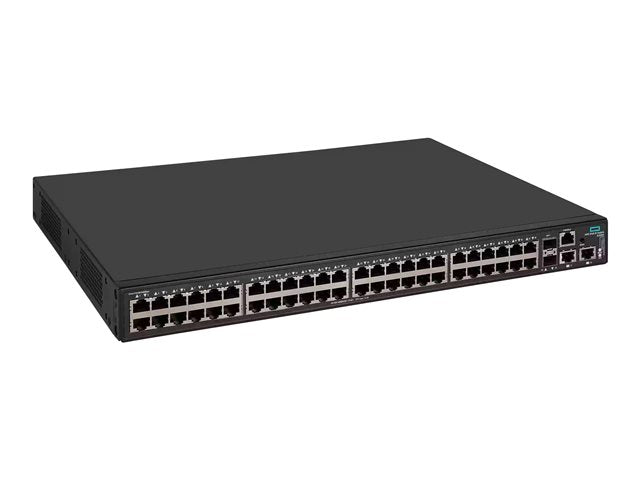

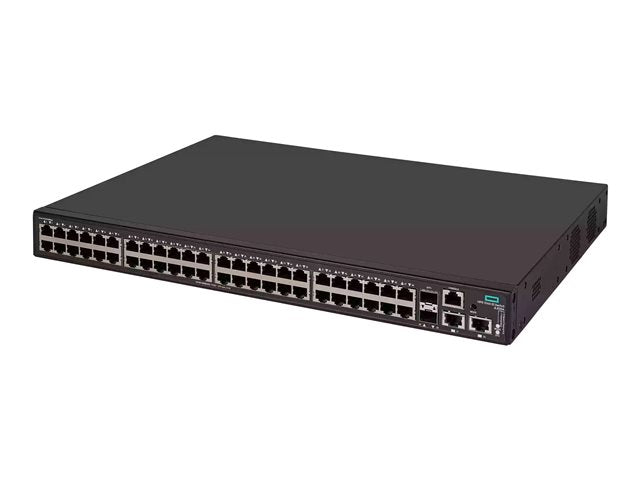

The HPE Networking Comware 5140 EI 48G PoE+ Switch delivers robust performance, scalability, and enterprise-class security features for medium to large campus networks. Designed for simplified operations and intelligent management, this rack-mountable switch features 48 Gigabit PoE+ access ports, two 10GbE SFP+ uplinks, and two 1/2.5/5/10GBASE-T uplink ports.
Equipped with HPE Intelligent Resilient Framework (IRF) stacking technology, SmartMC, and HPE IMC support, the 5140 EI series reduces network complexity while improving fault tolerance and efficiency. Built-in advanced Layer 3 routing, ACLs, IPv6 support, and robust QoS options make it ideal for environments with demanding voice, video, and wireless applications.
Whether you are consolidating your core infrastructure or building high-performance access layers, the HPE 5140 EI Series provides a powerful, secure, and energy-efficient networking solution.
| Specification | Details |
|---|---|
| Product Number | JL825A#ABA |
| Ports | 48 x RJ-45 10/100/1000 PoE+2 x SFP+ 10GbE2 x 1/2.5/5/10GBASE-T |
| Switching Capacity | 176 Gbps |
| Throughput | 131 Mpps |
| Latency | < 5 µs (1 Gbps), < 3 µs (10 Gbps) |
| PoE+ Power Budget | Up to 370W (depending on PSU configuration) |
| Memory | 512 MB SDRAM, 256 MB flash |
| MAC Address Table | 16,384 entries |
| Routing Table Size | 1,024 entries (Static Routing, RIP) |
| Stacking | IRF support for up to 9 switches |
| Security Features | 802.1X, MAC Auth, ACLs, SSHv2, RADIUS, IP Source Guard, DHCP Protection |
| QoS | Layer 2–4 QoS, SP/WRR/WRED queues, CAR, Traffic Policing |
| Management Tools | SmartMC (Web GUI), CLI, SNMP, HPE Aruba IMC |
| Power Consumption | 430W max / 34.5W idle |
| Heat Dissipation | Max: 117.7–1467 BTU/hr |
| Power Supply | External (not included) – AC 100–240V input |
| Form Factor | Rack-mountable 1U |
| Dimensions (W x D x H) | 17.32 x 12.6 x 1.72 in (440 x 320 x 43.6 mm) |
| Weight | 13.23 lbs (6 kg) |
