Description

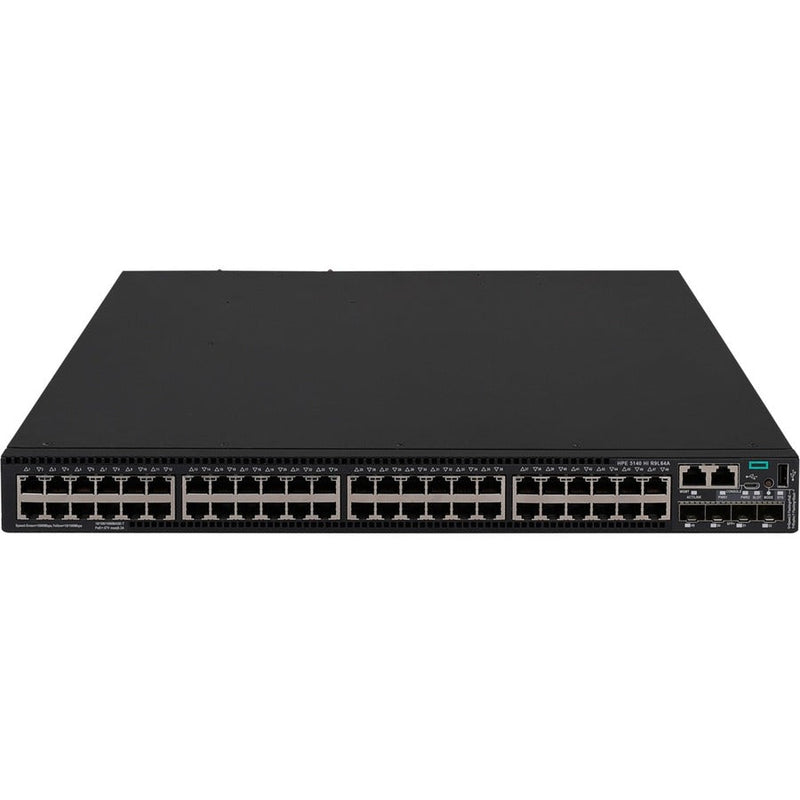

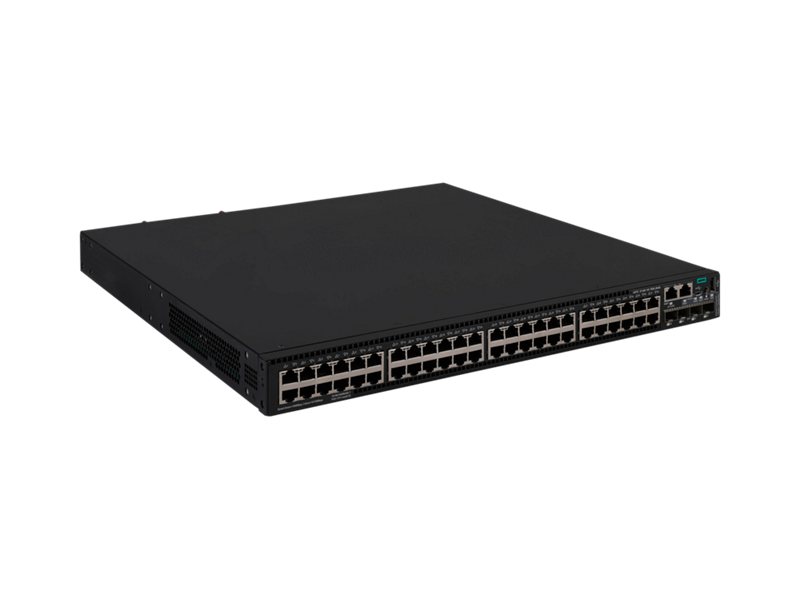

The HPE Networking Comware 5140HI Switch (R9L64A) is a high-performance Gigabit Ethernet access switch built for medium to large enterprise campus networks. With 48 PoE+ RJ-45 ports, 4 SFP+ uplinks, and a modular expansion slot, it provides scalable and resilient connectivity ideal for voice, video, wireless, and IoT applications.
This switch supports DRNI and IRF for high availability, MACsec AES-256 encryption for end-to-end security, and iNQA for real-time network health insights. It includes SmartMC for embedded management and works seamlessly with HPE IMC for centralized visibility and automation. Energy-efficient and highly secure, the 5140HI helps reduce operational costs without compromising performance.
| Feature | Details |
|---|---|
| Model | HPE FlexNetwork 5140 48G PoE+ 4SFP+ 1-slot HI Switch (R9L64A) |
| Ports | 48 x 10/100/1000BASE-T PoE+ ports, 4 x SFP+ 10GbE uplinks |
| Expansion Slots | 1 module slot |
| Console Ports | 1 x RJ-45/mini-USB (dual personality) serial, 1 x RJ-45 OOB, 1 x USB 2.0 |
| PoE Power Budget | Up to 1440W (30W max per port) |
| Switching Capacity | 336 Gbps |
| Throughput | 180 Mpps |
| MAC Address Table | 32K entries |
| Memory | 2 GB SDRAM, 512 MB flash, 4 MB packet buffer |
| Latency | <5 µs (1 Gbps), <3 µs (10 Gbps) |
| Power Supplies | 2 slots (1 minimum required); redundant supported |
| Mounting | 1U, rack-mountable (hardware included) |
| Dimensions (WxDxH) | 44.00 x 46.00 x 4.36 cm (17.32 x 18.11 x 1.71 in.) |
| Weight | ≤ 9.6 kg |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Humidity (Operating/Storage) | 5% to 95% non-condensing |
| Idle Power Consumption | 40 W (dual AC) |
| Max Power Consumption | 1742 W (dual AC) |
| Certifications | UL, EN, FCC, RoHS, ISO 7779, IEC, CISPR Class A |
| Software Features | Layer 2/3 Routing, DRNI, IRF, MACsec, ISSU, iNQA, SmartMC, IMC integration |
| Warranty | Limited Lifetime Warranty |
