Description

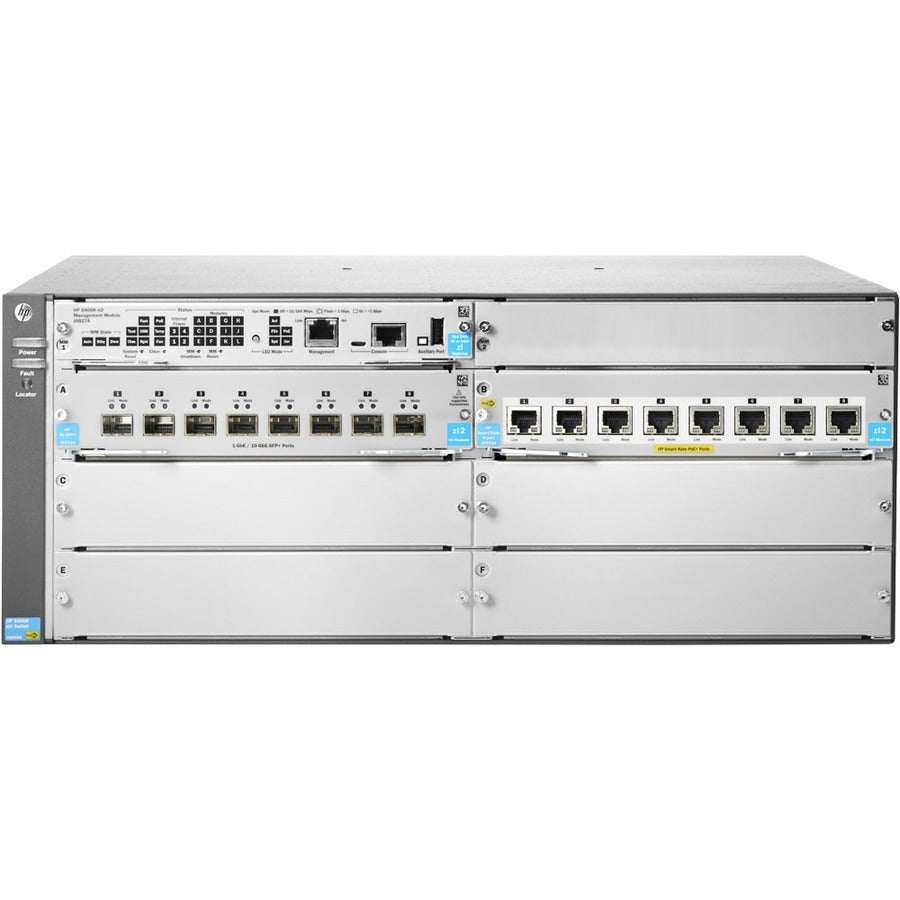

The HPE Aruba 5406R v3 zl2 Switch (JL002A) is a next-generation modular Layer 3 switch designed for mobile-first campuses and digital workplaces. It features 8 HPE Smart Rate multi-gigabit PoE+ ports (1/2.5/5/10GBASE-T) and 8 open 10GbE SFP+ ports, delivering high-performance wired access to support 802.11ac/ax wireless infrastructure.
Powered by the sixth-generation ProVision ASIC, this switch supports Virtual Switching Framework (VSF), hitless failover, Fast Software Upgrade, and dynamic segmentation. It’s a resilient and scalable solution perfect for converged wired and wireless environments with enhanced security, automation, and cloud-ready management through Aruba Central and ClearPass Policy Manager.
Note: Power supply sold separately.
| Specification | Details |
|---|---|
| Product Number | JL002A |
| Form Factor | 4U Modular Chassis |
| Included Modules | - 1x 8-port 1/2.5/5/10GBASE-T PoE+ MACsec v3 zl2 (J9995A)- 1x 8-port 1G/10GbE SFP+ MACsec v3 zl2 (J9993A)- 1x 5400R zl2 Management Module (J9827A)- 1x 5406R zl2 Fan Tray (J9831A) |
| Ports | 8x RJ‑45 Smart Rate (100M/1/2.5/5/10GBASE‑T)8x 10GbE SFP+ transceiver slots |
| Chassis Capacity | Up to 144 10/100/1000 portsUp to 48 SFP+ ports or 48 Smart Rate portsUp to 12x 40GbE ports |
| Switch Fabric Speed | 1015 Gbps |
| Throughput | 571.4 Mpps |
| Latency | < 2.8 µs @1GbE, < 1.8 µs @10GbE, < 1.5 µs @40GbE |
| PoE Capability | Yes, PoE+ supported |
| Power Supply | 2 slots (min. 1 required, not included) |
| Input Voltage | 110–127/200–240 VAC (based on power supply) |
| Heat Dissipation | 2450 BTU/hr (non-PoE), 3700 BTU/hr (with PoE) |
| Management | Aruba Central, AirWave, ClearPass, CLI, Web GUI, SNMP, IMC |
| Dimensions (WxDxH) | 44.45 x 45.09 x 17.53 cm |
| Weight | 12.75 kg |
