Description

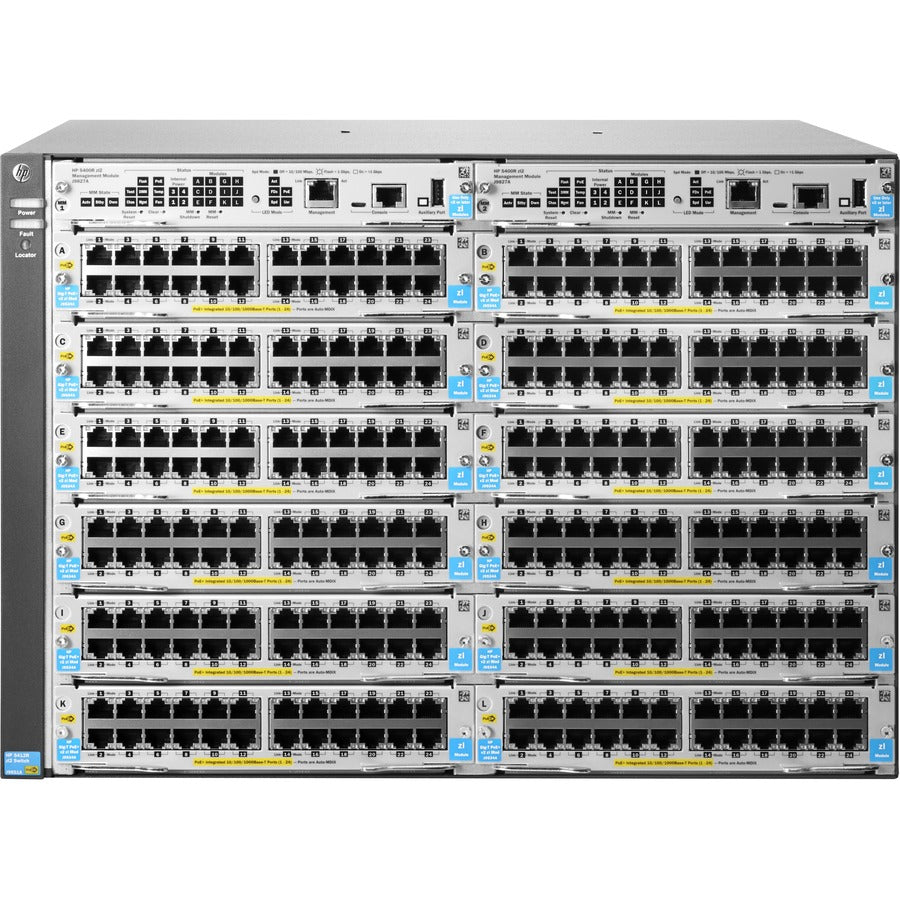

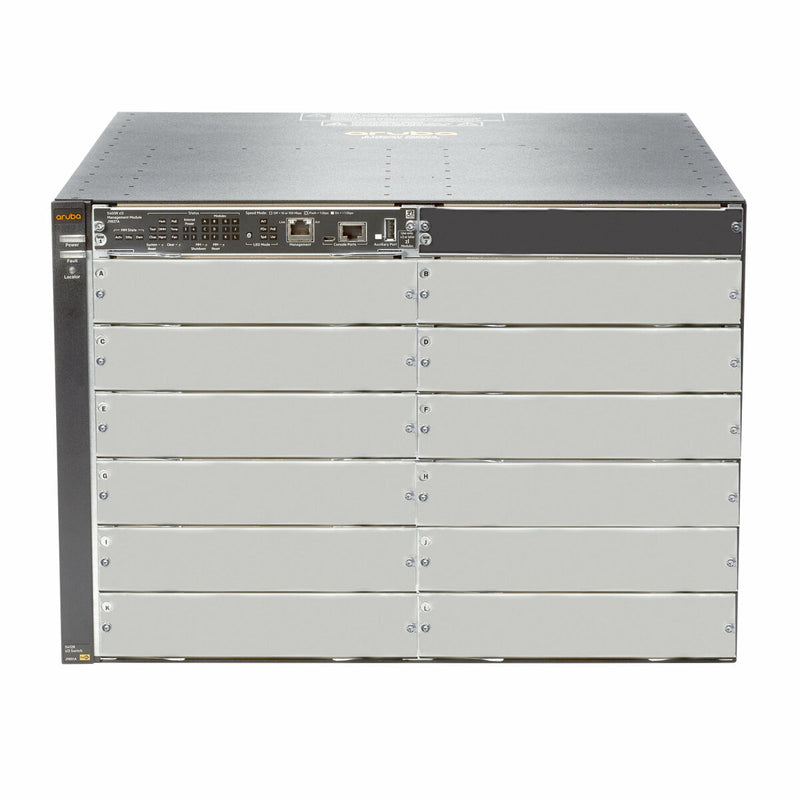

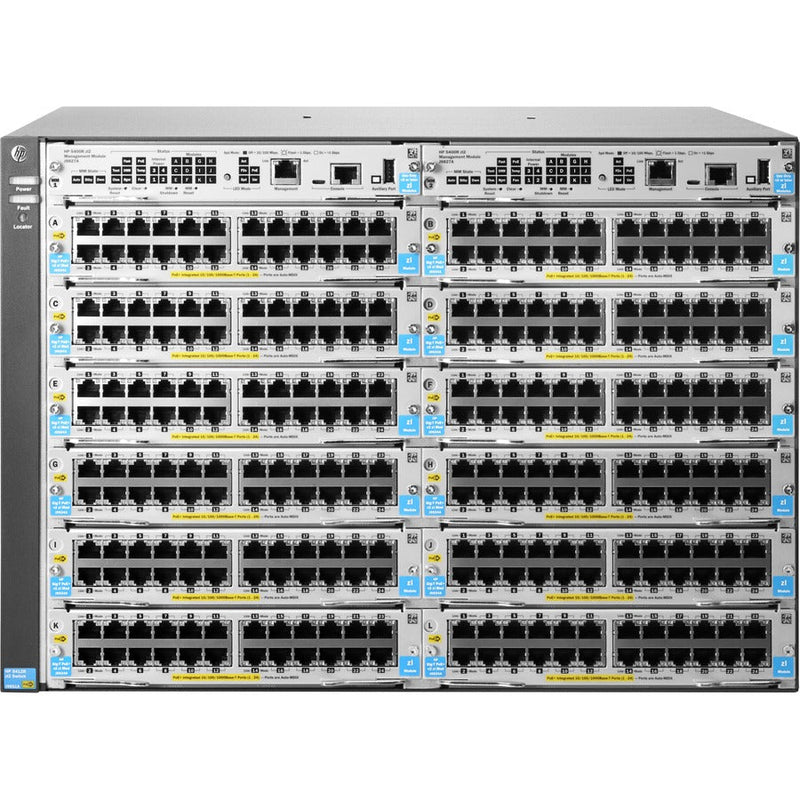

The HPE Aruba Networking 5412R zl2 Switch is a high-performance, highly available, modular Layer 3 switch built for mobile-first campus networks. Designed with flexibility and scalability in mind, this 12-slot chassis offers enterprise-class resiliency with support for HPE Smart Rate multi-gigabit ports, up to 288 ports, and full Layer 2 and Layer 3 feature sets — all without additional licensing.
Powered by the sixth-generation ProVision ASIC, it ensures low-latency switching, advanced security enforcement, and hitless failover for continuous network operations. With support for VSF stacking, 40GbE uplinks, and tools like HPE Aruba Central and ClearPass, it simplifies wired/wireless management and enables policy-based segmentation for high-security environments.
Perfect for growing enterprise networks, the 5412R zl2 adapts to future requirements with hot-swappable components and advanced monitoring capabilities, making it ideal for digital workplace infrastructure.
| Feature | Specification |
|---|---|
| Model Number | J9822A |
| Form Factor | 12-slot modular chassis, rack-mountable |
| Ports Supported | Up to 288 autosensing 10/100/1000 ports, 96 SFP+, 96 HPE Smart Rate, or 24 x 40GbE |
| Switch Fabric Speed | 2.03 Tbps |
| Throughput | 1142.8 Mpps |
| Latency | <2.8 µs (1GbE), <1.8 µs (10GbE), <1.5 µs (40GbE) |
| Routing/Switching Capacity | 1920 Gbps |
| CPU & Memory | Dual ARM Cortex A9 (1 GHz) / Freescale P2020 (1.2 GHz), 4 GB DDR3 SODIMM, 16 MB flash |
| Packet Buffer Size | Up to 18 MB internal |
| PoE Capability | Not supported by default |
| Management Features | HPE Aruba Central, IMC, CLI, Web UI, SNMP, Out-of-band RJ-45, RS-232C, micro USB |
| Power Supply Slots | 4 (2 required minimum; ordered separately) |
| Input Voltage | 100–127V / 200–240V AC |
| Software Features | Layer 2/3 routing, IPv6, BGP, OSPF, PBR, VRRP, ACLs, MACsec, Tunnel Node, REST APIs |
| Stacking | VSF (Virtual Switching Framework) |
| Security Features | 802.1X, MACsec, ClearPass integration, DHCP snooping, RADIUS/TACACS+ |
| Monitoring | RMON, XRMON, sFlow |
| Dimensions (HxWxD) | Depends on chassis configuration |
| Weight | Chassis only: ~10.5 kg (without modules or power) |
