Description

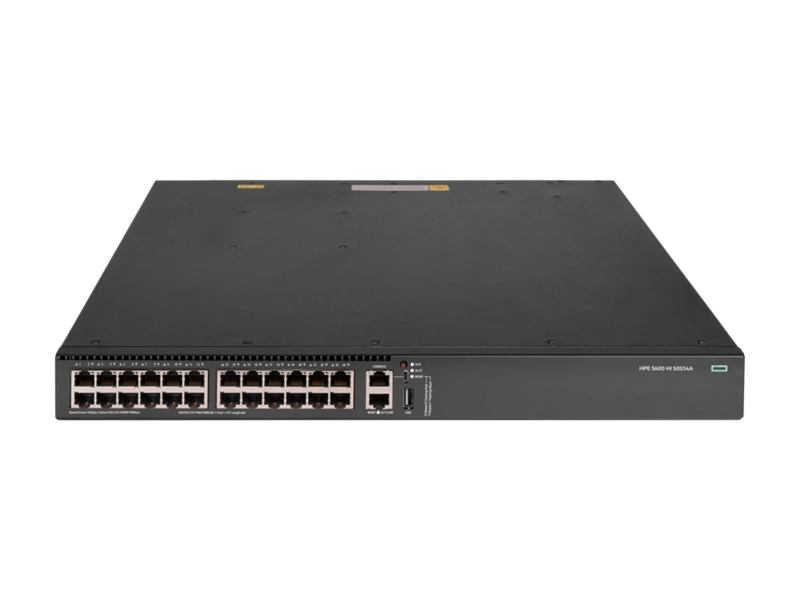

The HPE FlexNetwork 5600HI 24-Port Multigigabit Switch (S0S34A) is an enterprise-grade access layer solution designed for medium and large campus networks. This switch supports 100M/1G/2.5G/5G/10GBase-T UPoE on 24 ports and features advanced security, resiliency, and performance capabilities.
Powered by HPE's Comware software and equipped with Smart Management Center (SmartMC) and HPE IMC for centralized control, the 5600HI offers robust capabilities like DRNI, IRF, hardware-based MACsec, and advanced QoS. The 1 expansion slot allows for future upgrades, while dual hot-pluggable power supplies ensure high availability.
Built to meet the demands of modern enterprise networks and digital transformation workloads such as IoT, VDI, and cloud services, this switch delivers flexible connectivity, seamless management, and superior network visibility.
| Feature | Details |
|---|---|
| Model Number | S0S34A |
| Ports | 24 x 100M/1G/2.5G/5G/10GBase-T (PoE8) |
| Expansion Slots | 1 port expansion module slot |
| Power Supply Slots | 2 (1+1 dual hot-pluggable) |
| Fan Trays | Includes 2 |
| Form Factor | 1U Rack-mountable |
| Dimensions (H x W x D) | 43.6 x 440 x 460 mm |
| Weight | 5.5 kg |
| Memory | 2 GB SDRAM, 3 MB packet buffer, 1 GB flash |
| MAC Address Table Size | Max 32K (Recommended 16K) |
| Switching Capacity | 640 Gbps |
| Throughput | 240 Mpps |
| Latency | < 5 μs (1G), < 3 μs (10G), < 1.2 μs (40G) |
| PoE Power per Port | 90W (UPoE) |
| Idle Power Consumption | 39.3W |
| Max Power Rating | 2385W (dual AC) |
| Operating Temperature | –5°C to 45°C (23°F to 113°F) |
| Storage Temperature | –40°C to 70°C (–40°F to 158°F) |
| Humidity (Operating/Storage) | 5%–95%, noncondensing |
| Acoustic Level | Low: 48.1 dB, High: 60.7 dB |
| Power Input | AC: 90–264V, DC: –36 to –72V |
| Management | HPE IMC, SmartMC, CLI, SNMP, Web GUI |
| Key Features | DRNI, IRF, MACsec, iNQA, VXLAN, EVPN, ISSU, Advanced QoS |
| Compliance | RoHS, UL 60950-1, FCC Class A, EN 61000 series, IEC 62368-1 |
