Description

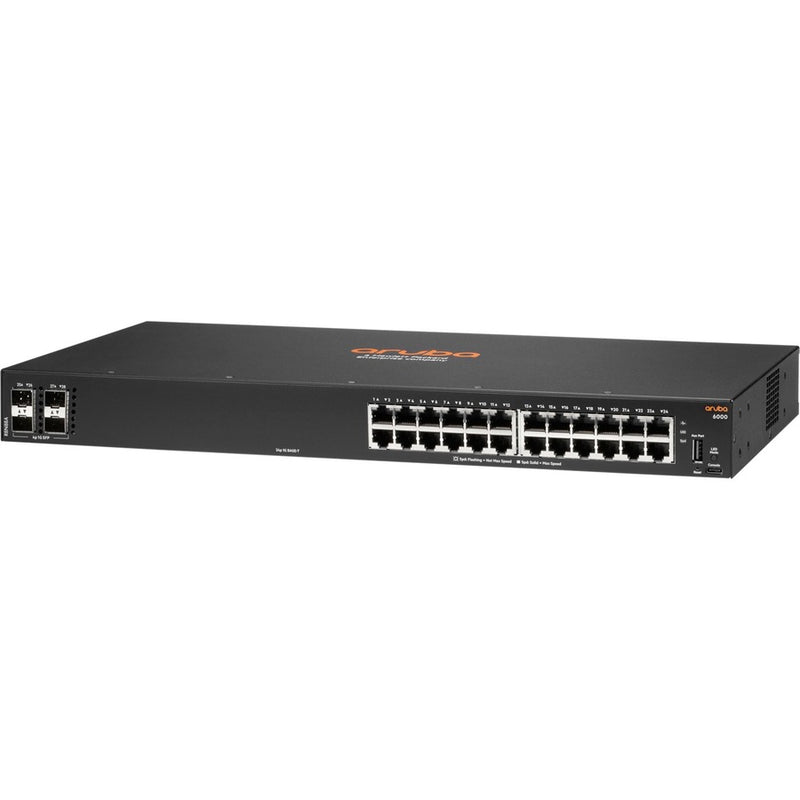

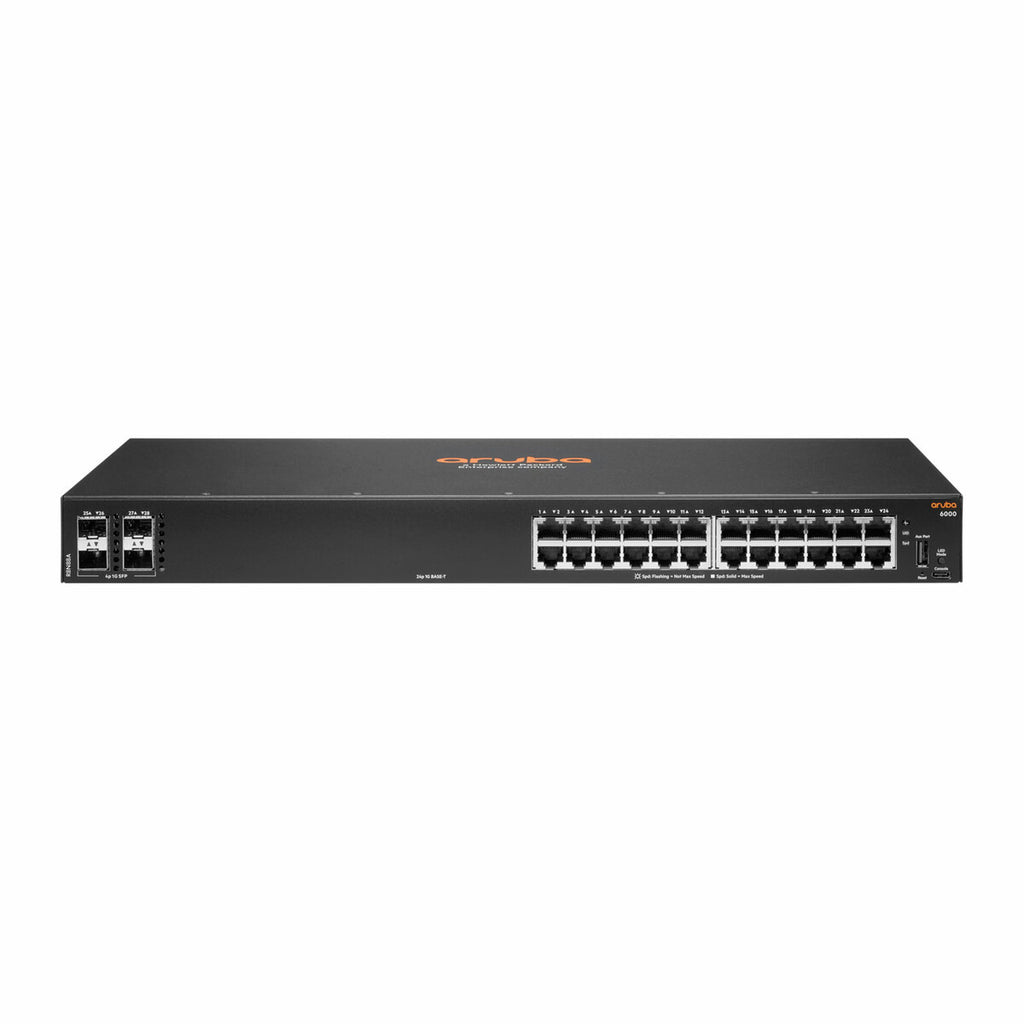

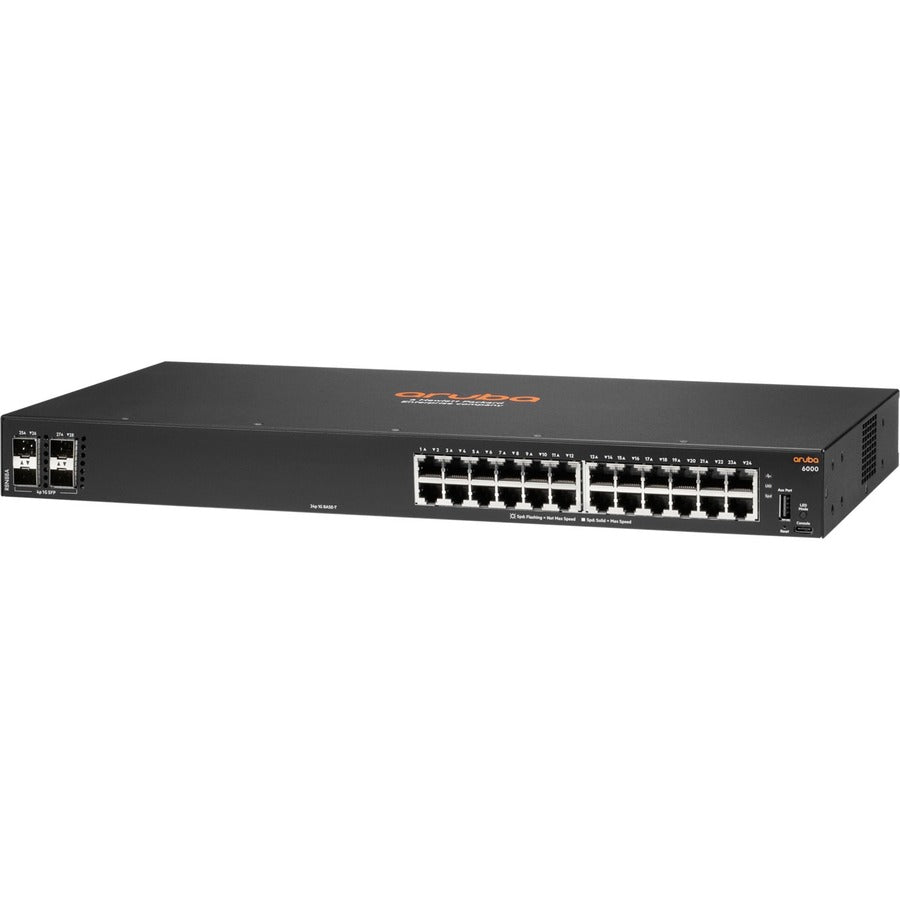

The HPE Aruba Networking CX 6000 24G 4SFP Switch is a reliable, fully managed Layer 2 Ethernet switch designed for small to midsize businesses and branch offices. Featuring 24 Gigabit ports and 4 dedicated 1G SFP uplinks, it enables secure and cost-effective network access for today's mobile-first, IoT-driven environments. Powered by the AOS-CX operating system and built with a high-performance ASIC, it offers low latency, enhanced QoS, and static routing. With side-to-side airflow and rack-mountable design, this switch is built for enterprise-grade deployments with simplified configuration options via CLI, GUI, or Aruba Central.
| Specification | Details |
|---|---|
| Model Number | R8N88A#ABA |
| Product Series | HPE Aruba Networking CX 6000 Series |
| Switch Type | Layer 2 Managed Switch |
| Ports | 24x 10/100/1000BASE-T + 4x 1G SFP |
| Airflow | Side-to-side |
| Form Factor | 1U Rack-mountable |
| Memory | 8 GB DDR3 RAM, 16 GB eMMC |
| Processor | Dual-Core ARM Cortex A9 @ 1016 MHz |
| Switching Capacity | 56 Gbps |
| Throughput | 41.6 Mpps |
| Latency | 1 Gbps: 1.5 Ī¼s |
| PoE Support | No (Non-PoE Model) |
| Routing Capabilities | Static Routing |
| Management Options | Web GUI, CLI, Aruba Central, REST APIs |
| Input Voltage | 100-127V AC / 200-240V AC |
| Max Power Consumption | 33W (without PoE) |
| Operating System | ArubaOS-CX |
| Dimensions (HxWxD) | 1.73 x 17.4 x 7.92 in (4.4 x 44.2 x 20.1 cm) |
