Description

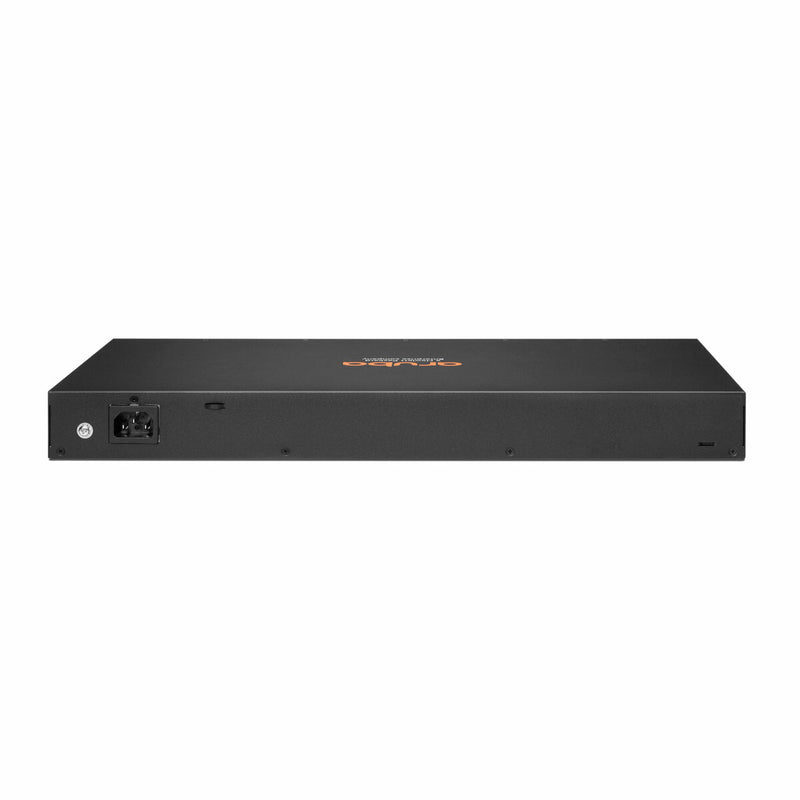

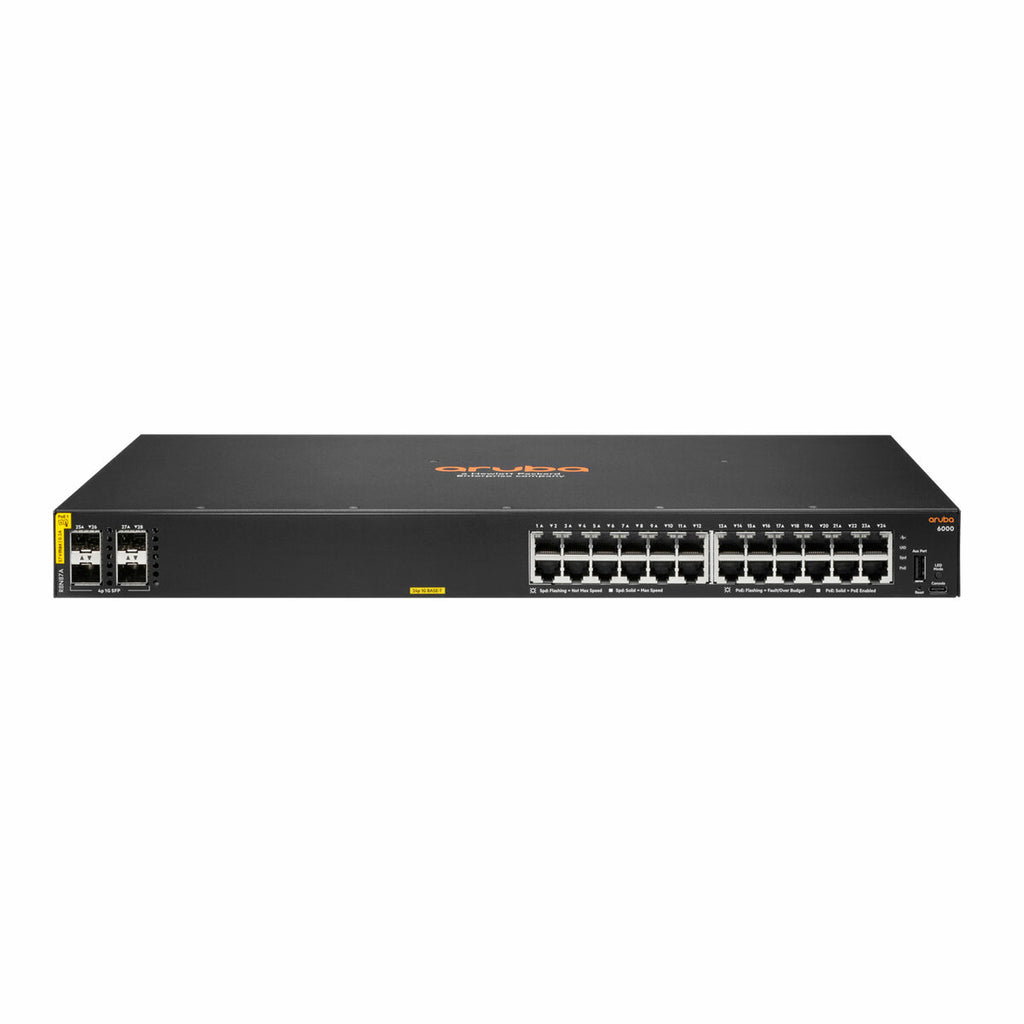

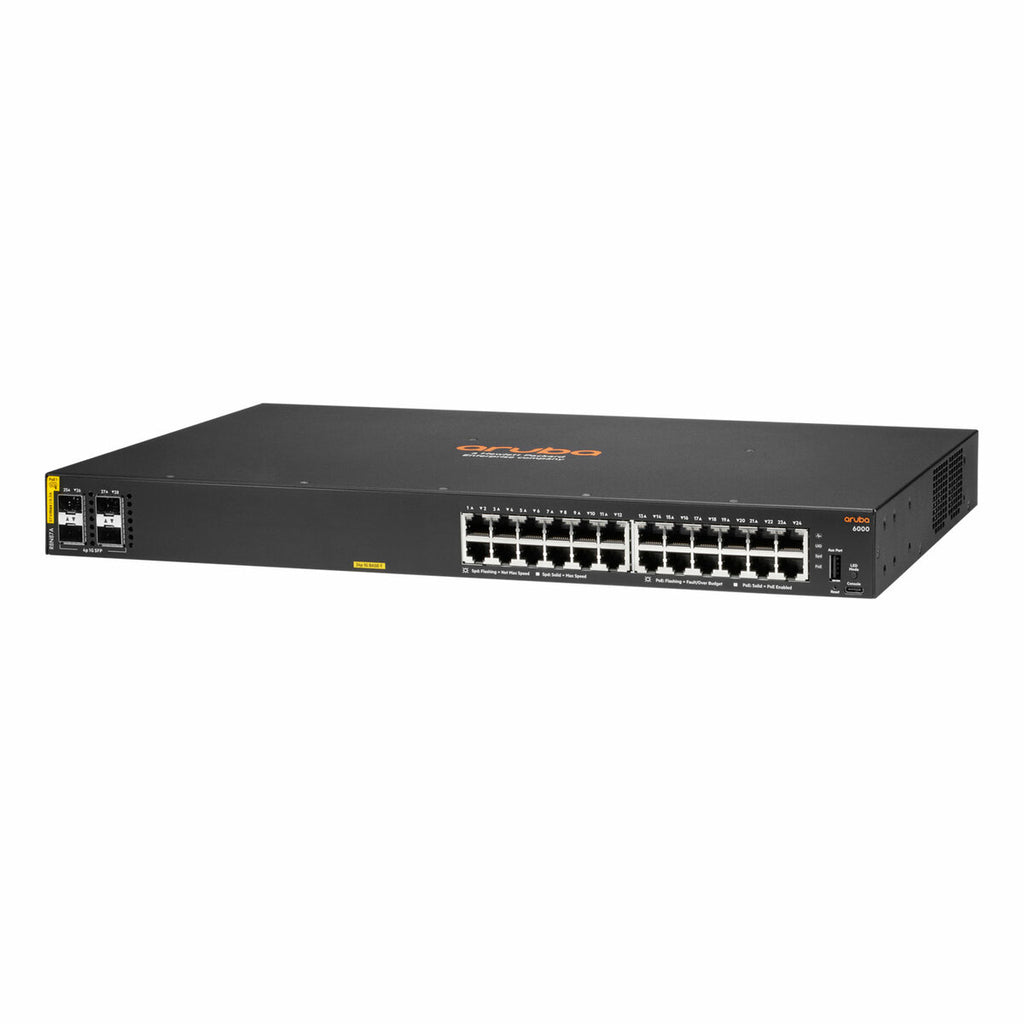

The HPE Aruba Networking CX 6000 24G Class4 PoE 4SFP 370W Switch (R8N87A#ABA) is a fully managed Layer 2 switch built for modern network access at the edge. It offers 24 Gigabit PoE+ ports and 4 SFP uplinks, delivering up to 370W of IEEE 802.3at Class 4 PoE power for wireless APs, IP phones, and IoT devices.
Optimized for simplicity, performance, and scalability, this switch features the HPE Aruba Networking AOS-CX operating system, robust static routing, QoS, ACLs, and centralized management support via Aruba Central. With a switching capacity of 56 Gbps and low latency of 1.5 ΞΌSec, it's ideal for small to midsize businesses seeking reliable and secure network access.
| Specification | Details |
|---|---|
| Model Number | R8N87A#ABA |
| Series | Aruba Networking CX 6000 Series |
| Ports | 24x 10/100/1000BASE-T (PoE+) + 4x 1G SFP uplinks |
| PoE Budget | 370W (Class 4 PoE, IEEE 802.3at) |
| Switching Capacity | 56 Gbps |
| Throughput | 41.6 Mpps |
| Latency (1Gbps) | 1.5 ΞΌSec |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Memory | 8 GB DDR3 |
| Flash Storage | 16 GB eMMC |
| Layer Support | Layer 2 (Static Routing, ACL, QoS, IPv6) |
| Airflow | Side-to-side |
| Management | Web GUI, CLI, Aruba Central, REST APIs |
| Power Supply | Internal (100β240VAC) |
| Power Consumption | Max (no PoE): 32.7W / Max (with PoE): 455W |
| Mounting | Rack-mountable (1U) |
| Dimensions (H x W x D) | 1.73 x 17.4 x 10.56 in (4.4 x 44.2 x 26.8 cm) |
