Description

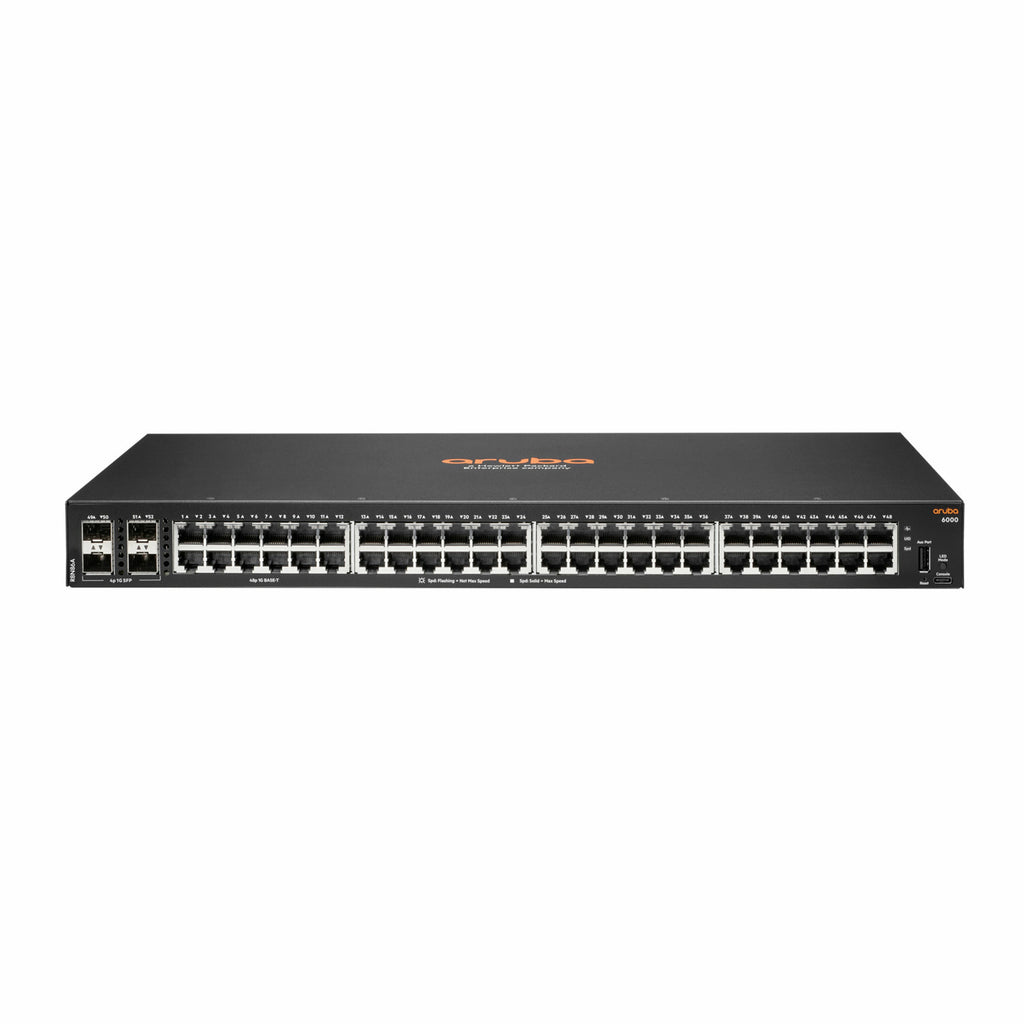

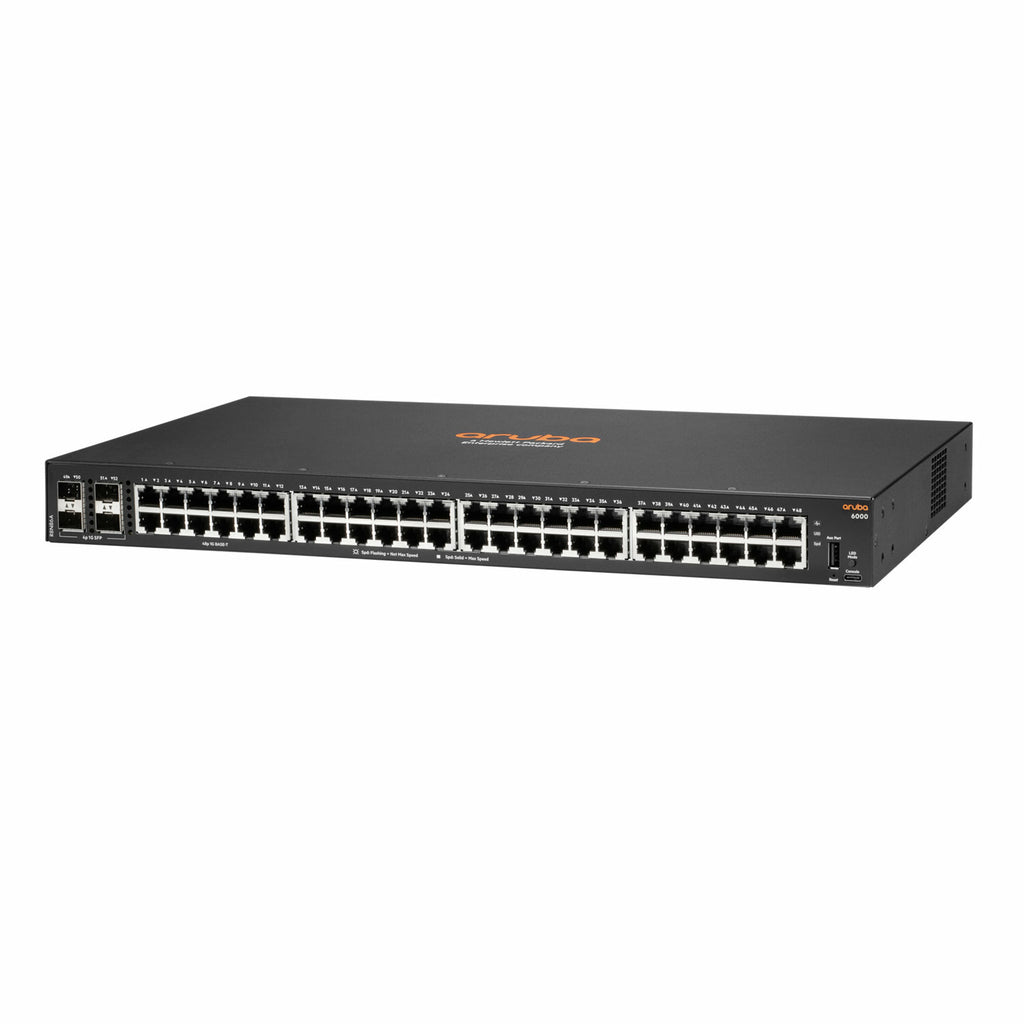

The HPE Aruba Networking CX 6000 48G 4SFP Switch is a modern, entry-level Layer 2 access switch designed for small and midsize enterprises, branch offices, and SMBs needing reliable, secure, and simple wired access. Equipped with 48 Gigabit Ethernet ports and 4 SFP uplinks, this fully managed switch delivers robust performance and flexibility with side-to-side airflow and rack-mountable design.
With a non-PoE design and built-in redundancy features, the CX 6000 series leverages the powerful AOS-CX operating system and supports flexible management options via Aruba Central, Web GUI, or CLI. Ideal for high-density environments, it enables efficient operation, low latency, and simplified deployments — all factory integrated and ready to scale.
| Specification | Details |
|---|---|
| Model Number | R8N86A#ABA |
| Product Series | Aruba Networking CX 6000 |
| Port Configuration | 48 x 10/100/1000BASE-T + 4 x SFP 1G |
| Switch Type | Fully Managed Layer 2 |
| Airflow Direction | Side-to-side airflow |
| Mounting Options | Rack-mountable |
| Power Input | 100–127V / 200–240V AC |
| Max Power Consumption | 44.2W |
| PoE Support | No (Non-PoE Model) |
| Latency (1 Gbps) | 1.9 µs |
| Switching Capacity | 104 Gbps |
| Throughput | 77.3 Mpps |
| Memory | 8 GB DDR3 |
| Storage | 16 GB eMMC |
| Processor | Dual-Core ARM Cortex A9 @ 1016 MHz |
| Dimensions (W x D x H) | 17.4 x 9.74 x 1.73 in (44.2 x 24.74 x 4.4 cm) |
| Software Platform | HPE Aruba Networking AOS-CX |
| Routing Capability | Static Routing |
| Factory Integrated | Yes |
