Description

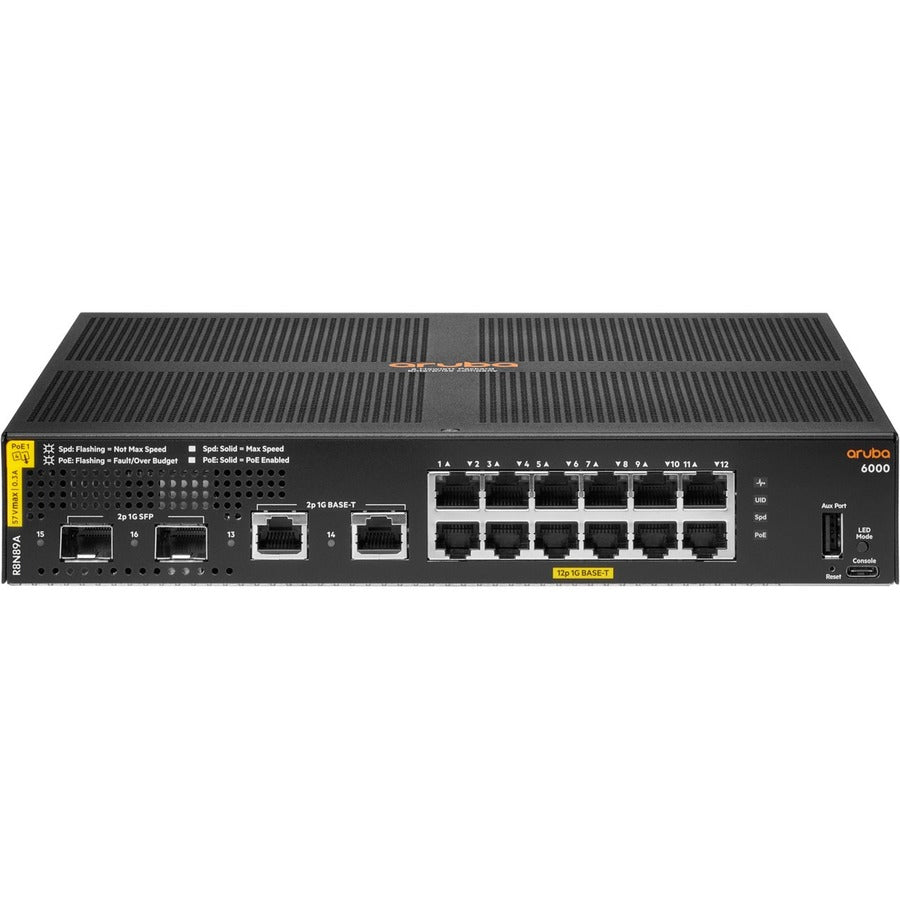

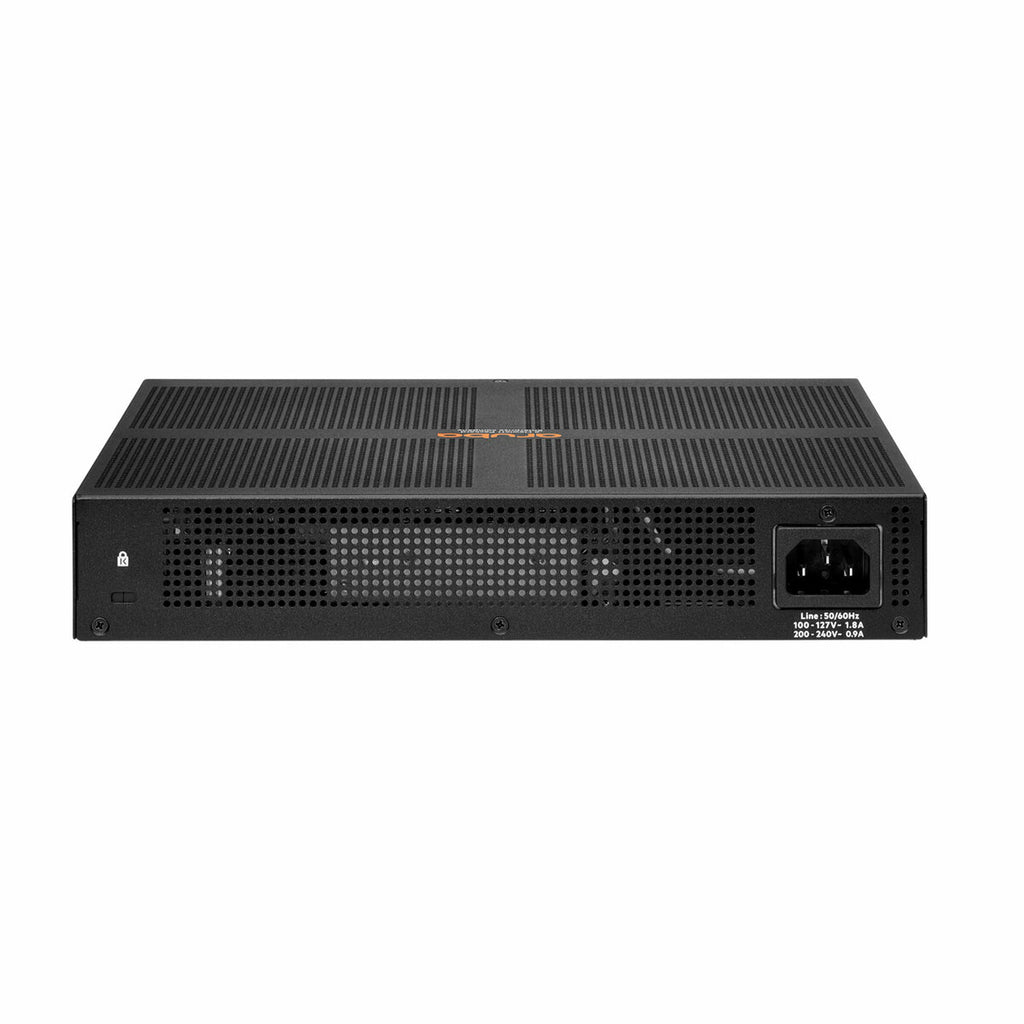

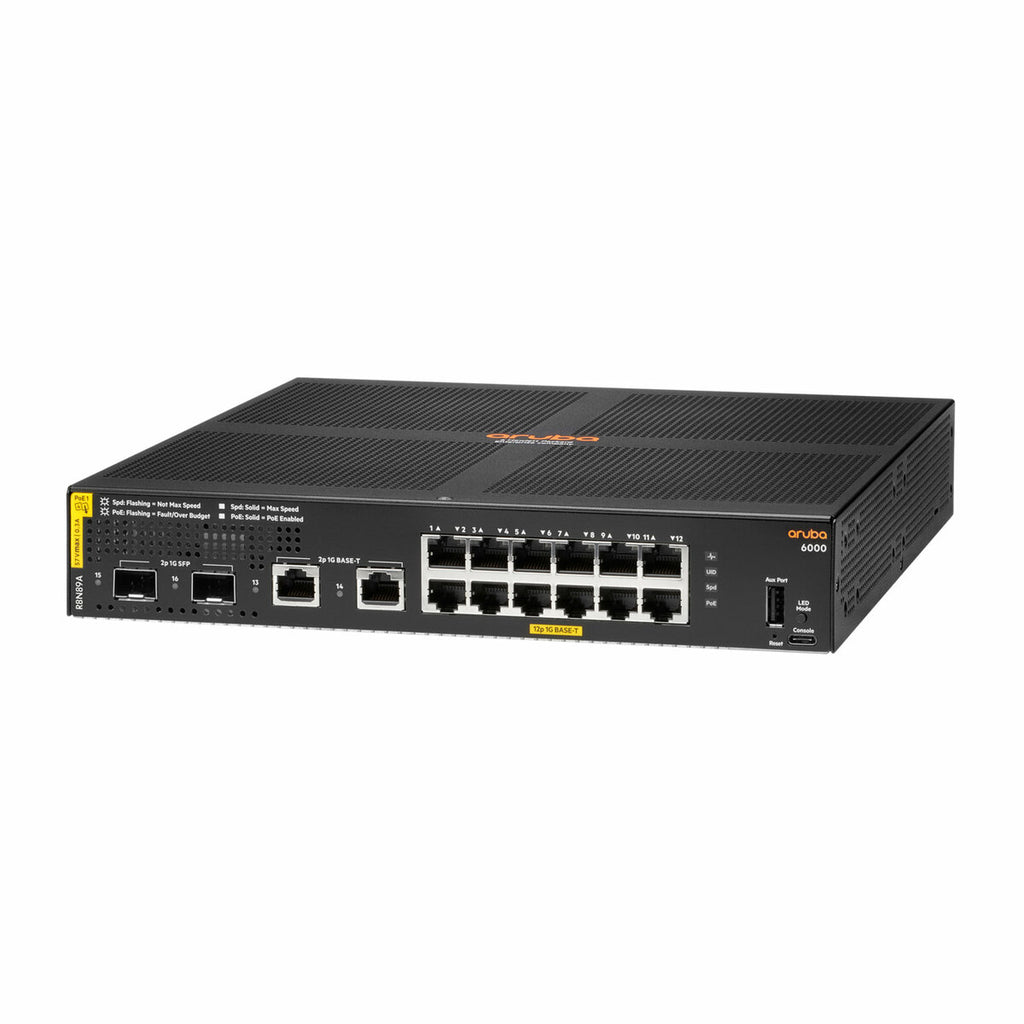

The HPE Aruba Networking CX 6000 12G Class4 PoE 2G/2SFP 139W Switch is a compact, fanless, Layer 2 access switch purpose-built for small businesses, branch offices, and midsize enterprises seeking secure, reliable, and simple wired connectivity. It features 12x 1G PoE+ ports, 2x Gigabit SFP uplinks, and 2x 1GbE uplink ports, offering flexible deployment in space-constrained environments. Powered by the Aruba AOS-CX operating system and a robust ASIC architecture, it delivers low-latency performance, static routing, and up to 139W of PoE power for IoT and wireless devices. With support for Web GUI, CLI, Aruba Central, and REST APIs, it ensures easy management and future-ready scalability.
| Specification | Details |
|---|---|
| Product Number | R8N89A#ABA |
| Switch Type | Layer 2 Managed Access Switch |
| Ports | 12x 10/100/1000BASE-T (PoE+) |
| 2x 1GbE SFP | |
| 2x 1GbE Copper Uplink Ports | |
| PoE Power Budget | 139W IEEE 802.3at Class 4 PoE (up to 30W/port) |
| Switching Capacity | 32 Gbps |
| Throughput | 23.8 Mpps |
| Latency | 2.3 µs (1 Gbps) |
| Routing | Static Routing |
| Memory | 8 GB DDR3 |
| Storage | 16 GB eMMC |
| Processor | Dual-Core ARM Cortex A9 @ 1016 MHz |
| Power Input | 100-127 VAC / 200-240 VAC |
| Max Power Consumption | 21.9W (w/o PoE), 170W (with PoE) |
| Form Factor | Rack-mountable 1U |
| Dimensions (HxWxD) | 1.73 x 10.0 x 10.4 in (4.4 x 25.4 x 26.4 cm) |
| Fanless | Yes |
| Mounting Options | Rack-mountable, compact deployment |
| Operating System | ArubaOS-CX |
| Management Options | Web GUI, CLI, Aruba Central, REST API |
