Description

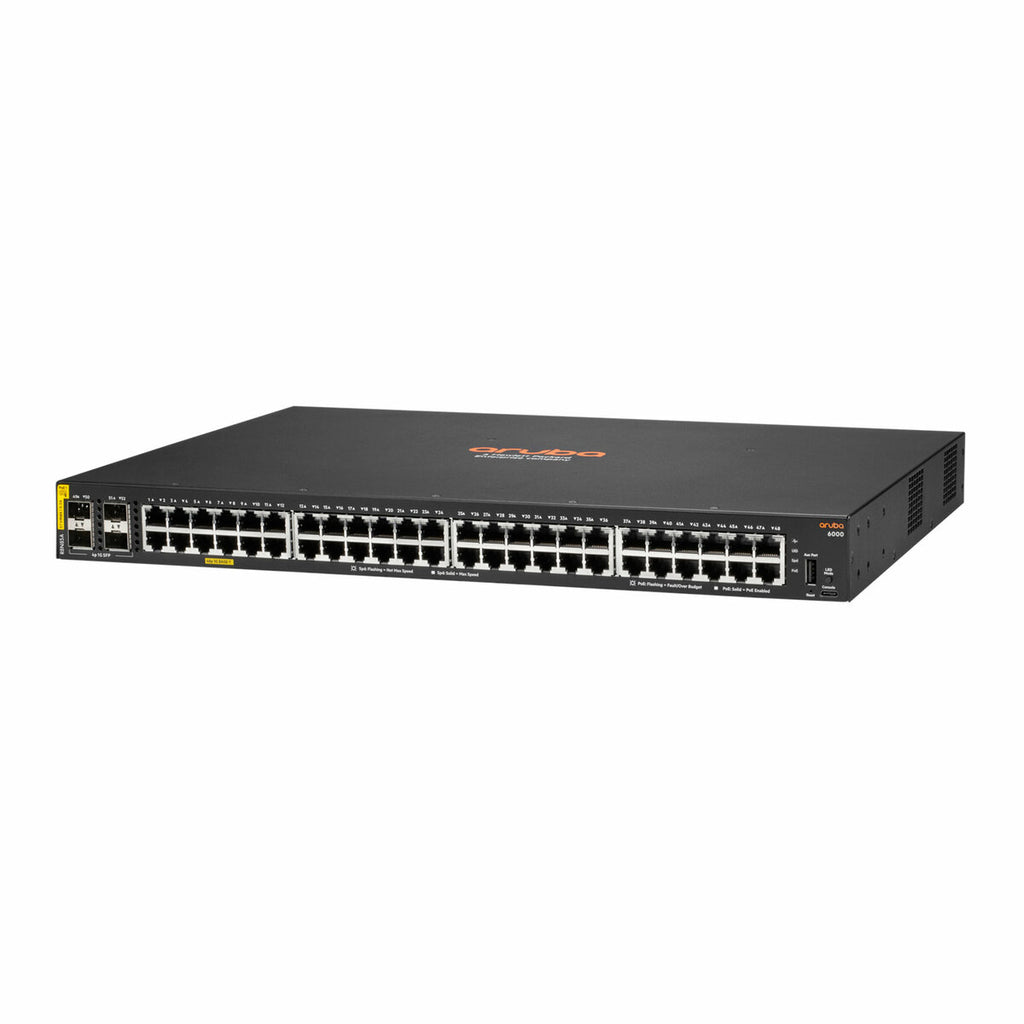

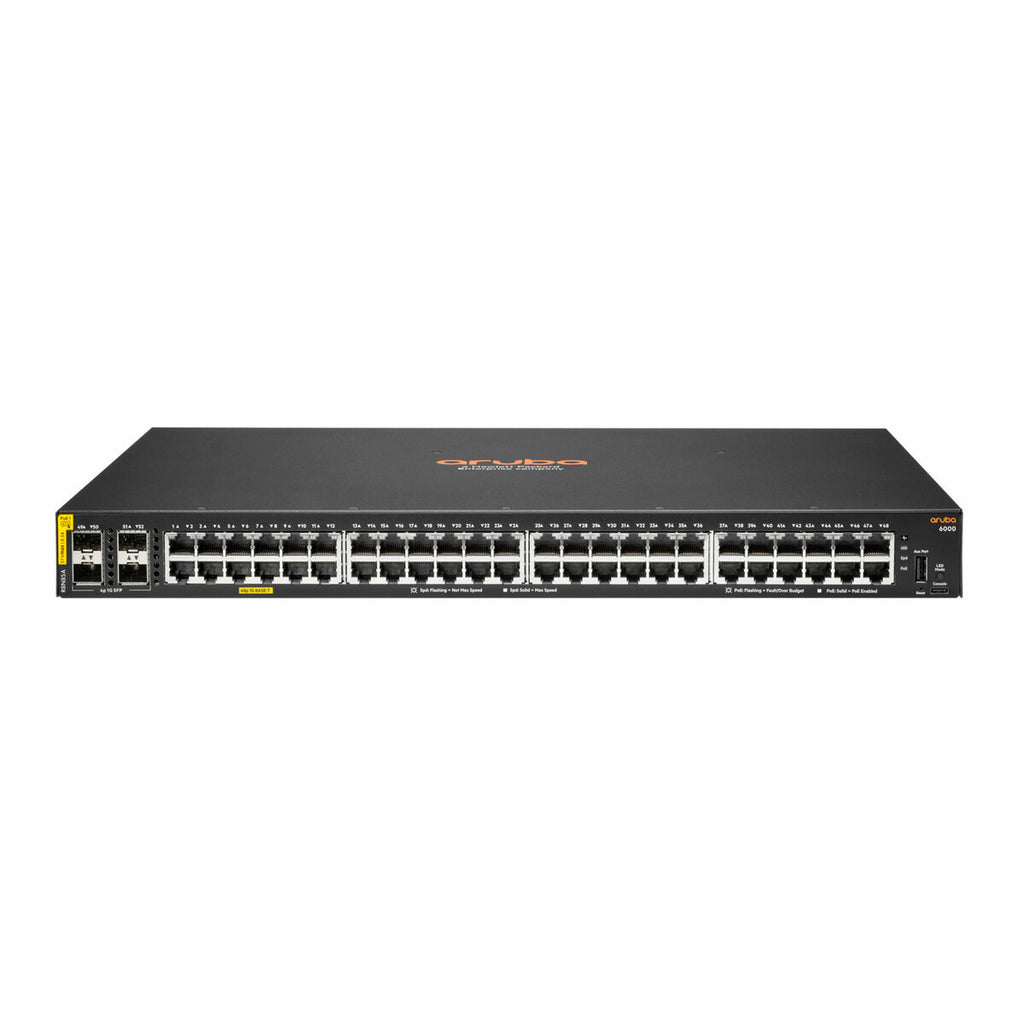

The HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch is an enterprise-grade Layer 2 access switch designed for branch offices, midsize businesses, and SMB networks. Featuring 48 Gigabit PoE+ ports and 4 Gigabit SFP uplinks, this managed switch offers reliable, secure, and cost-effective wired access for demanding environments.
Powered by the HPE Aruba Networking CX Operating System (AOS-CX), it delivers consistent performance, advanced management flexibility via Web GUI, CLI, Aruba Central, and REST APIs, and supports 370W Class 4 PoE to power IoT devices, access points, and more. With side-to-side airflow and rack-mountable design, it’s built for simplified deployment and scalability.
| Category | Details |
|---|---|
| Model Number | R8N85A#ABA |
| Switch Type | Layer 2 Managed Switch |
| Ports | 48 x 10/100/1000BASE-T PoE+ ports |
| 4 x 1G SFP uplink ports | |
| PoE Power Budget | 370W (Class 4 PoE / IEEE 802.3at) |
| Switching Capacity | 104 Gbps |
| Throughput | 77.3 Mpps |
| Latency | 1.9 µs @ 1 Gbps |
| Memory | 8 GB DDR3 |
| Storage | 16 GB eMMC |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Routing Capabilities | Static routing |
| Airflow | Side-to-side airflow |
| Mounting | Rack-mountable (1U) |
| Power Supply Input | 100–127 VAC / 200–240 VAC |
| Power Consumption | Max 45W (w/o PoE), 480W (w/ PoE) |
| Dimensions (WxDxH) | 17.4 x 12.0 x 1.73 in (44.2 x 30.5 x 4.4 cm) |
| Management Options | Web GUI, CLI, Aruba Central, REST API, Multi-Edit Software |
| Operating System | HPE Aruba Networking AOS-CX |
| Ideal Use Case | SMBs, branch offices, IoT and wireless device connectivity |
