Description

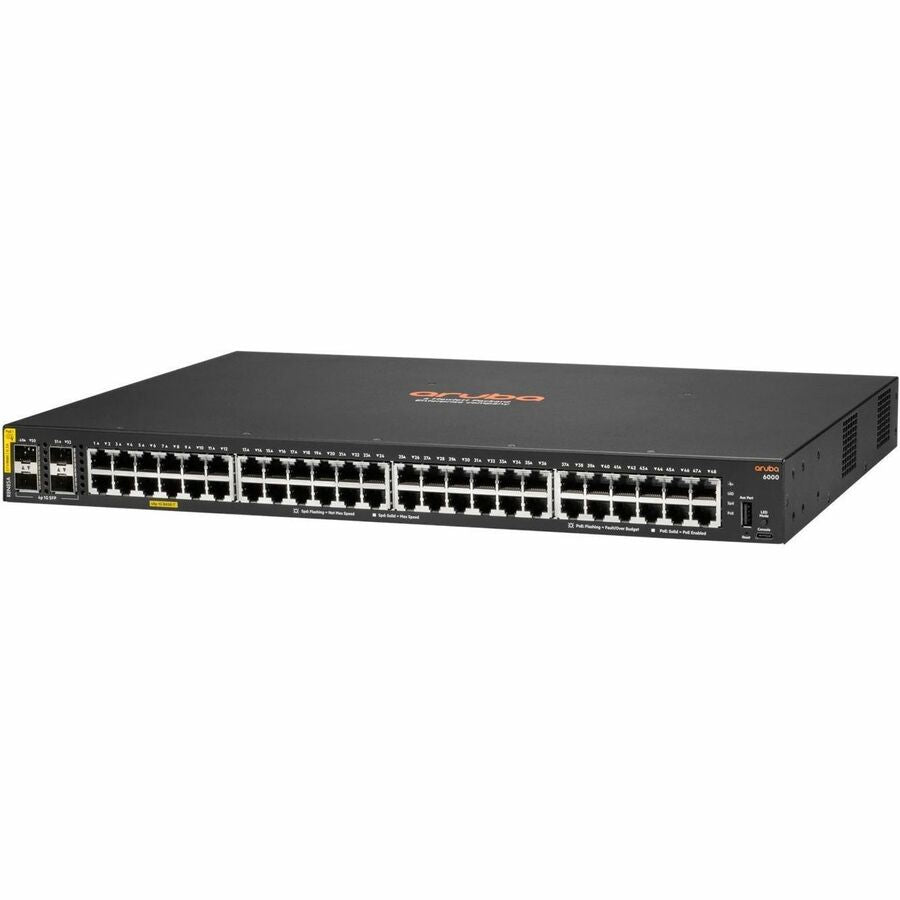

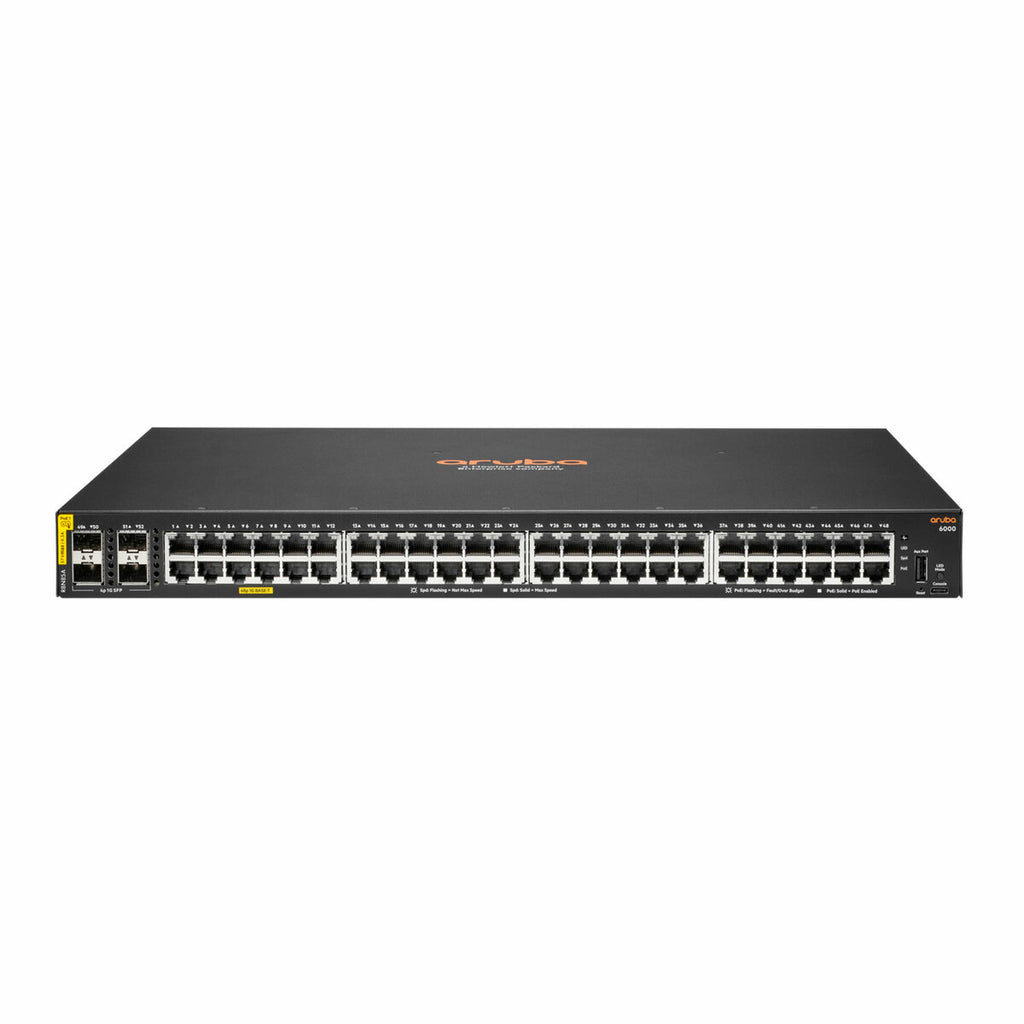

The HPE Aruba Networking CX 6000 48G Class4 PoE+ 4SFP 370W Switch is part of the CX 6000 Switch Series—a cost-effective, reliable, and secure Layer 2 access switch built for enterprise branches, SMBs, and midsize networks. With 48 PoE+ Gigabit ports and 4 built-in SFP uplinks, it delivers simplified, high-performance connectivity to support access points, IP phones, and IoT devices.
Engineered with the Aruba AOS-CX operating system and a powerful Aruba ASIC, this fully managed switch enhances operational efficiency and supports modern cloud-managed and CLI-based management. It includes 370W Class 4 PoE power, static routing, robust QoS, and fanless side-to-side airflow design for rack-mount deployment.
| Feature | Details |
|---|---|
| Model Number | R8N85A#ACD |
| Switch Type | Managed Layer 2 Access Switch |
| Ports | 48x 10/100/1000BASE-T (PoE+), 4x 1G SFP |
| PoE Power Budget | 370W IEEE 802.3at Class 4 |
| Switching Capacity | 104 Gbps |
| Throughput | 77.3 Mpps |
| Latency | 1.9 µs @ 1 Gbps |
| Routing | Static routing |
| Airflow | Side-to-side |
| Memory | 8 GB DDR3 RAM, 16 GB eMMC |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Power Supply | 100–127 VAC / 200–240 VAC |
| Power Consumption | Max 45W (without PoE), Max 480W (with PoE) |
| Form Factor | Rack-mountable |
| Dimensions (W x D x H) | 17.4 x 12.0 x 1.73 in |
| Management Options | Aruba Central, Web GUI, CLI, Multi-Edit, REST APIs |
