Description

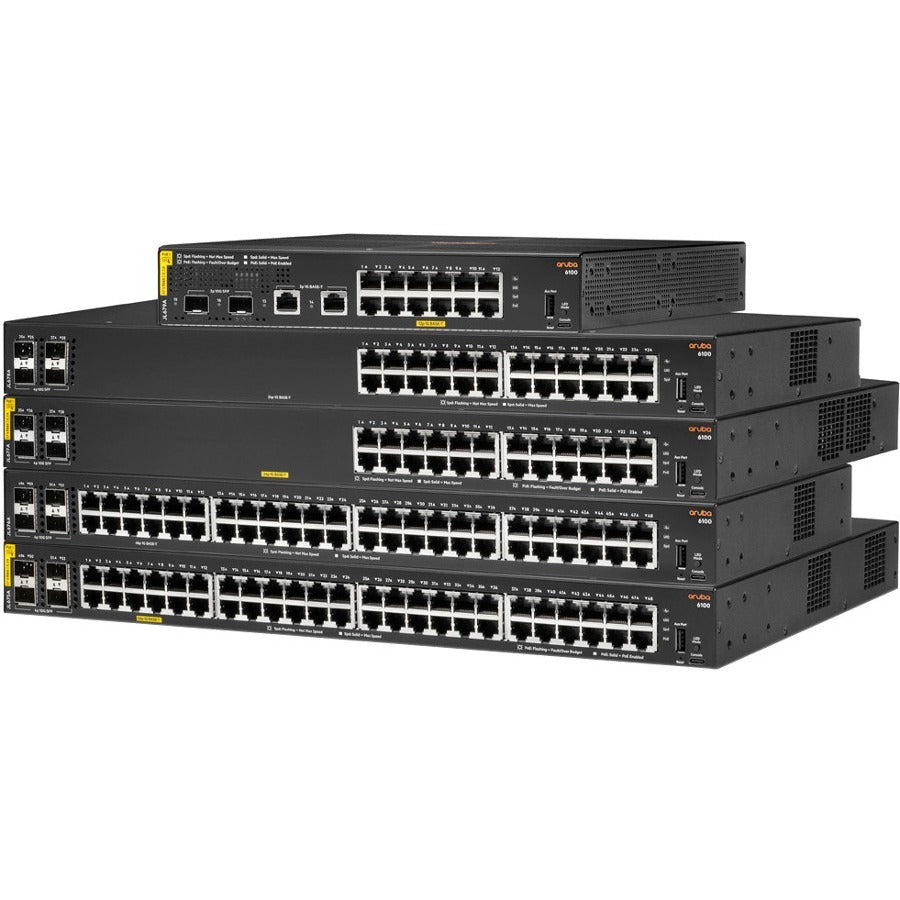

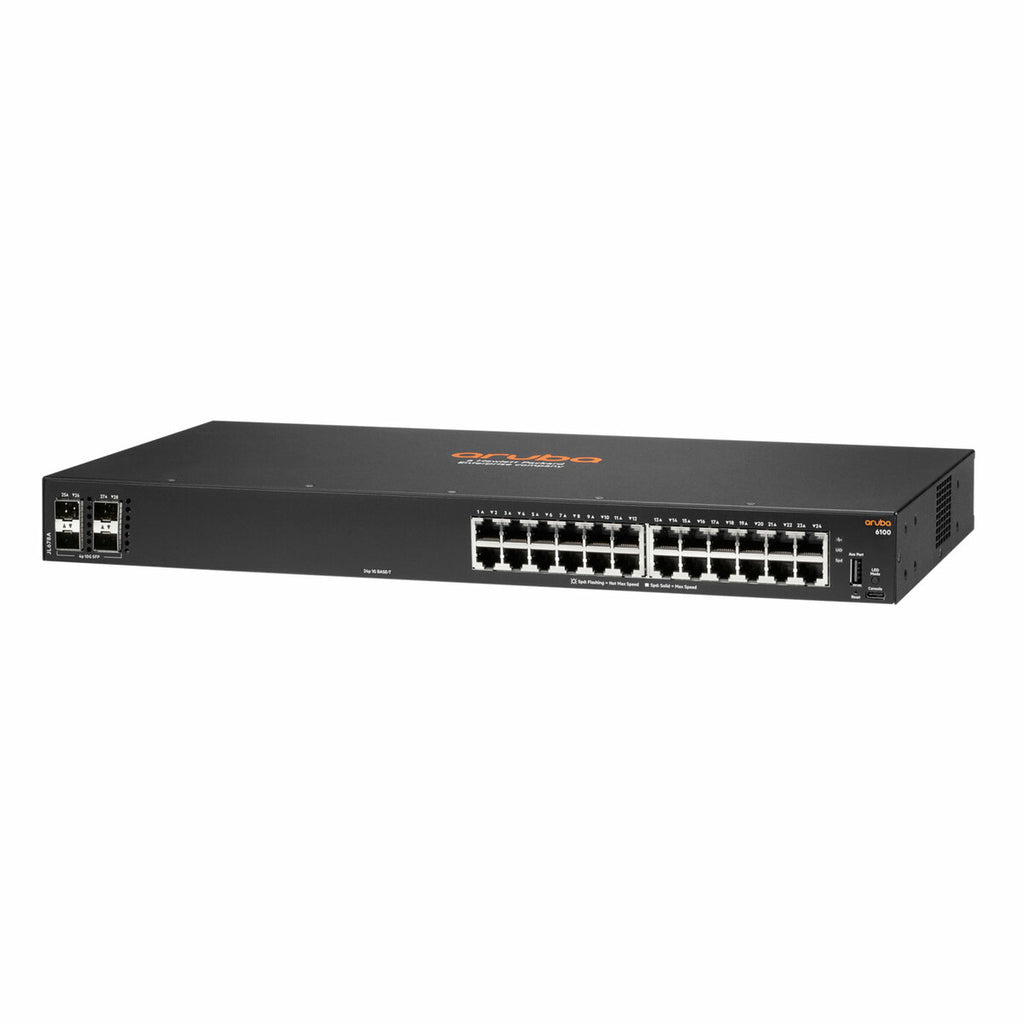

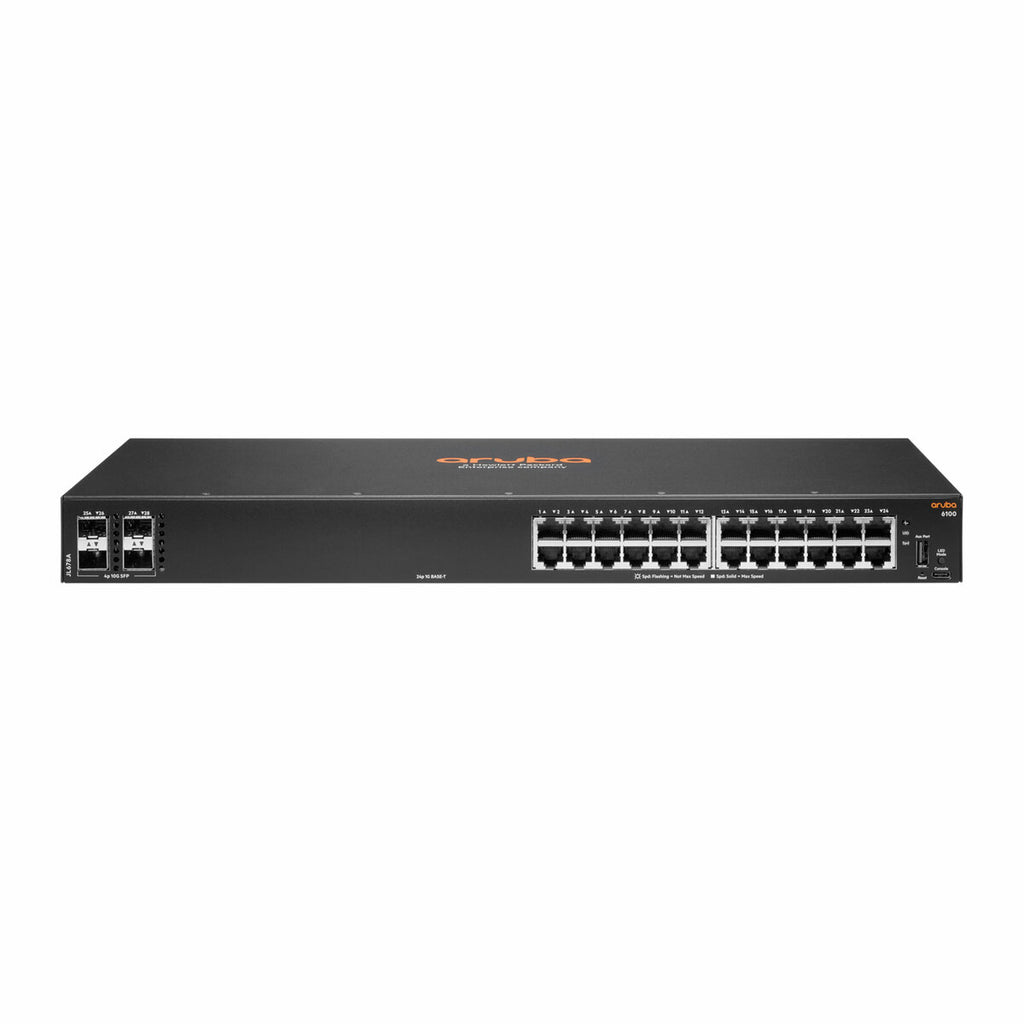

The HPE Aruba Networking CX 6100 24G 4SFP+ Switch (JL678A#B2B) is part of Aruba’s next-gen entry-level Layer 2 switch series, built to deliver reliable wired access for enterprise branch offices, small businesses, and mid-market networks. With 24 Gigabit Ethernet ports and 4 high-speed 1/10GbE SFP+ uplinks, this managed switch ensures smooth connectivity and scalability.
It features a compact, rack-mountable design with side-to-side airflow and supports silent operation, ideal for office deployments. Powered by Aruba’s AOS-CX software and Gen7 ASIC architecture, this switch provides robust performance, simplified management, and enhanced network visibility. Perfect for supporting mobile, cloud, and IoT applications, with no additional licensing required.
| Specification | Details |
|---|---|
| Model Number | JL678A#B2B |
| Switch Type | Managed Layer 2 Switch |
| Ports | 24x 10/100/1000BASE-T + 4x 1G/10G SFP+ |
| Switching Capacity | 128 Gbps |
| Throughput | 95.2 Mpps |
| Latency | 1G: 1.5 µs, 10G: 1.8 µs |
| Airflow | Side-to-side |
| Mounting | Rack-mountable |
| PoE Support | Up to 370W, IEEE 802.3at Class 4 PoE (model-dependent) |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Memory | 4 GB DDR3, 16 GB eMMC |
| Power Consumption (Max) | 33W (without PoE) |
| Input Voltage | 100-127 VAC / 200-240 VAC |
| Dimensions | 1.73 x 17.4 x 7.92 in |
| Weight | 5.78 lbs |
