Description

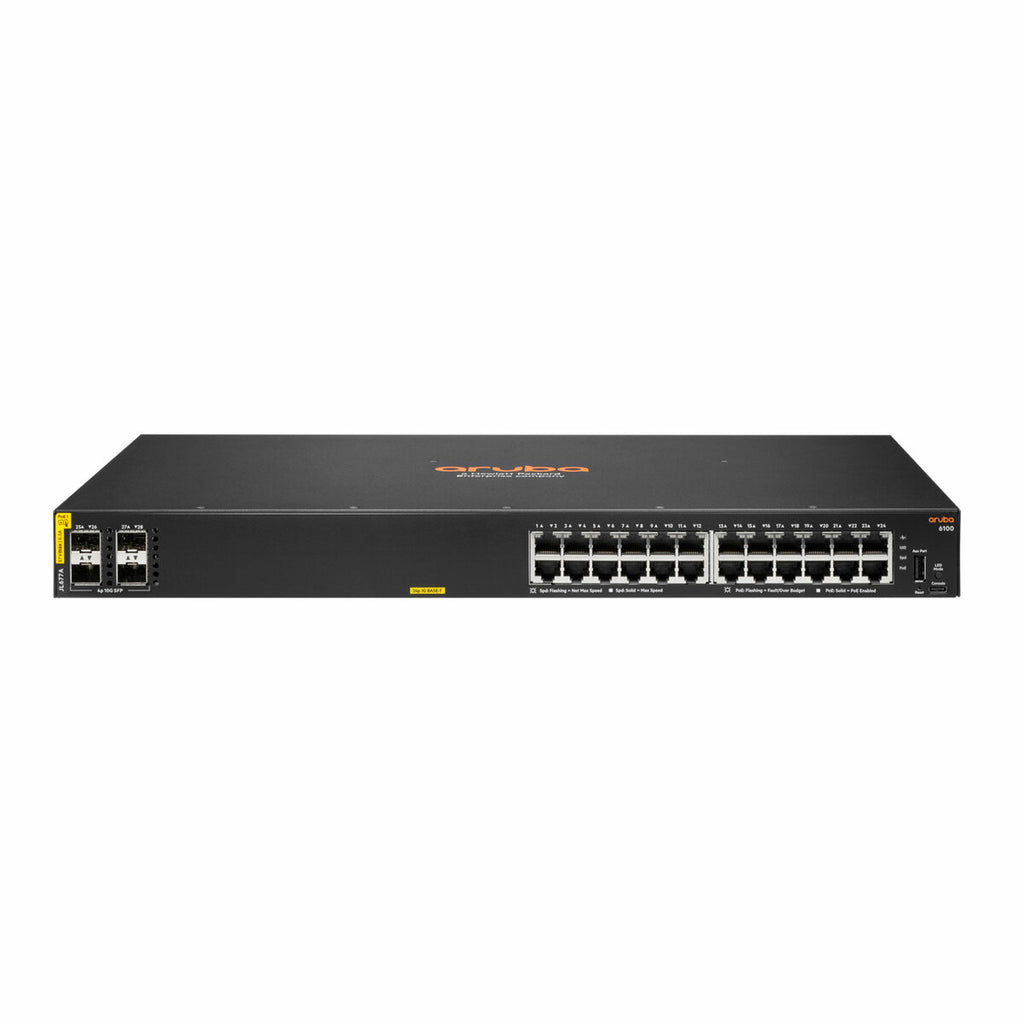

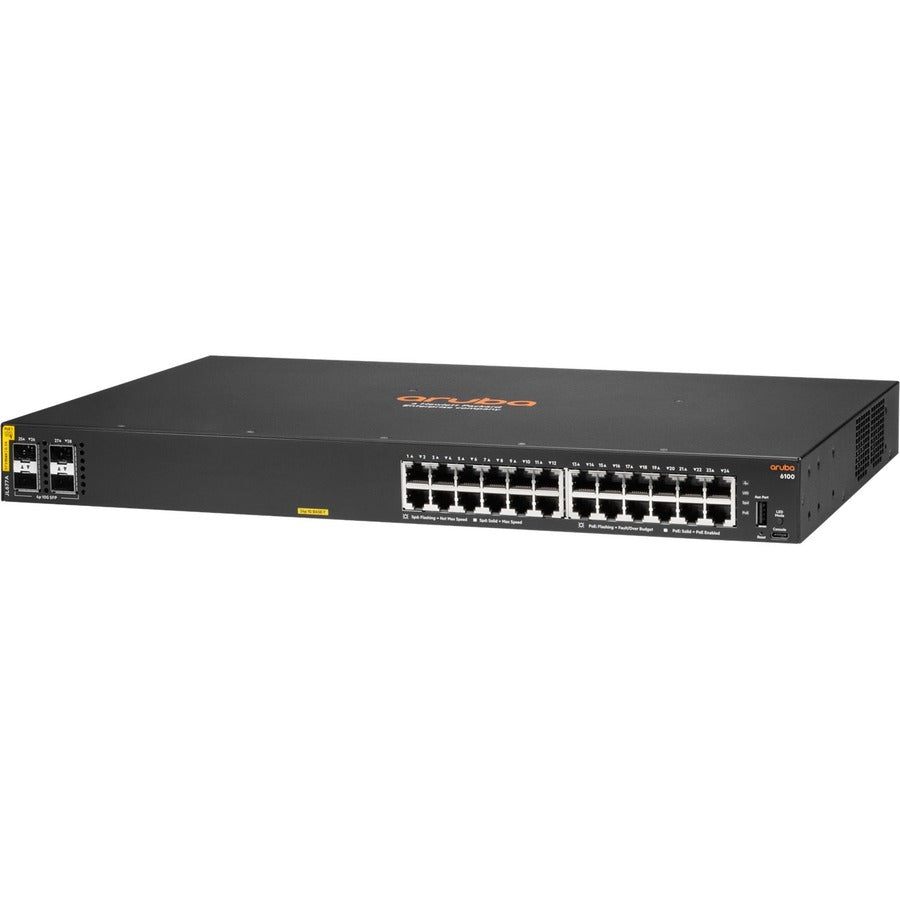

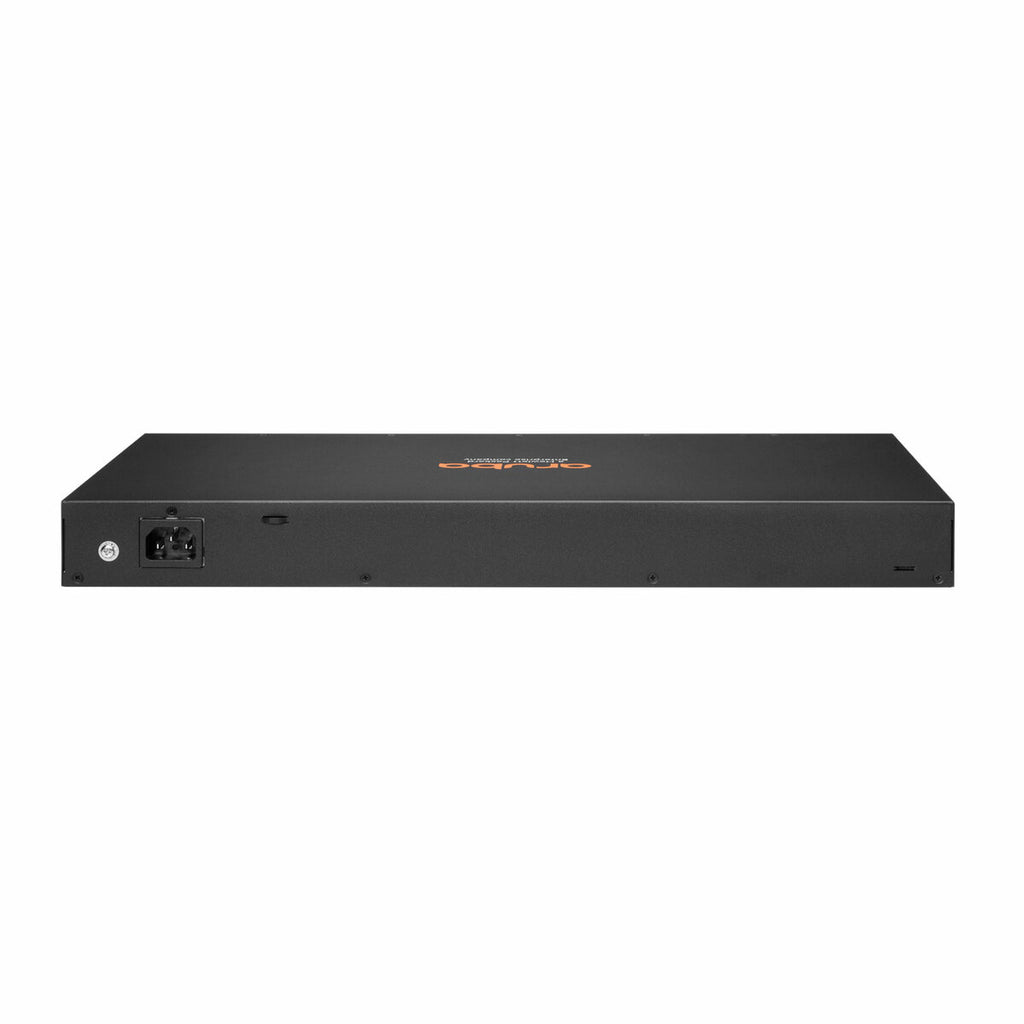

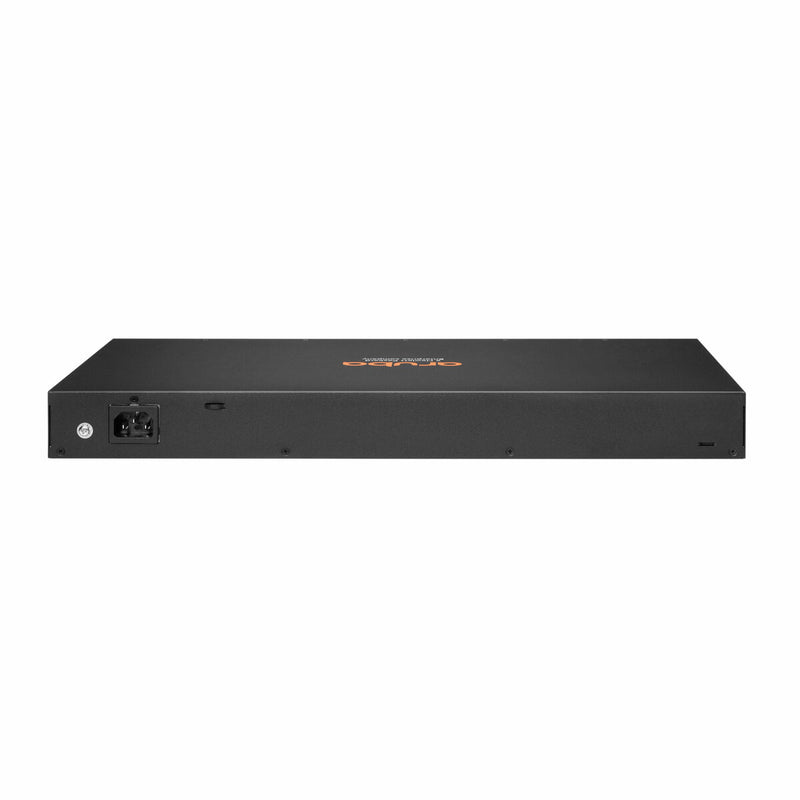

The HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch is an enterprise-grade Layer 2 access switch designed for reliable wired connectivity in SMB, branch, and mid-market networks. This fully managed switch delivers 24 gigabit Ethernet ports with Class 4 PoE+ support and 4 high-speed 1/10GbE SFP+ uplinks, ensuring flexibility and performance for modern IoT, mobile, and cloud-based applications.
With support for advanced QoS, static routing, and IPv6, and powered by Aruba’s AOS-CX operating system, this model provides a consistent and simplified network management experience. It includes 370W of PoE+ power to support APs, security cameras, and other PoE devices, and integrates seamlessly with Aruba Central for unified cloud-based or on-premises management.
| Feature | Details |
|---|---|
| Product Code | JL677A#ABB |
| Model Series | HPE Aruba Networking CX 6100 Series |
| Switch Type | Layer 2 Managed Switch |
| Ports | 24 x 10/100/1000BASE-T (PoE+) |
| Uplink Ports | 4 x 1G/10G SFP+ |
| PoE Budget | 370W (IEEE 802.3at Class 4 PoE+) |
| Airflow | Side-to-side |
| Rack Mountable | Yes (1U) |
| Switching Capacity | 128 Gbps |
| Throughput | 95.2 Mpps |
| Latency | 1.5 µs (1G), 1.8 µs (10G) |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Memory | 4 GB DDR3 |
| Storage | 16 GB eMMC |
| Power Input | 100-127 VAC / 200-240 VAC |
| Max Power Consumption | 455W (with PoE), 32.7W (without PoE) |
| Dimensions (H x W x D) | 1.73 x 17.4 x 10.56 in (4.4 x 44.2 x 26.8 cm) |
| Weight | 9.24 lbs (4.19 kg) |
| Software | Aruba AOS-CX, no license required |
| Management | Web GUI, CLI, Aruba Central, REST API |
| Mounting Options | Rack-mountable with side-to-side airflow |
