Description

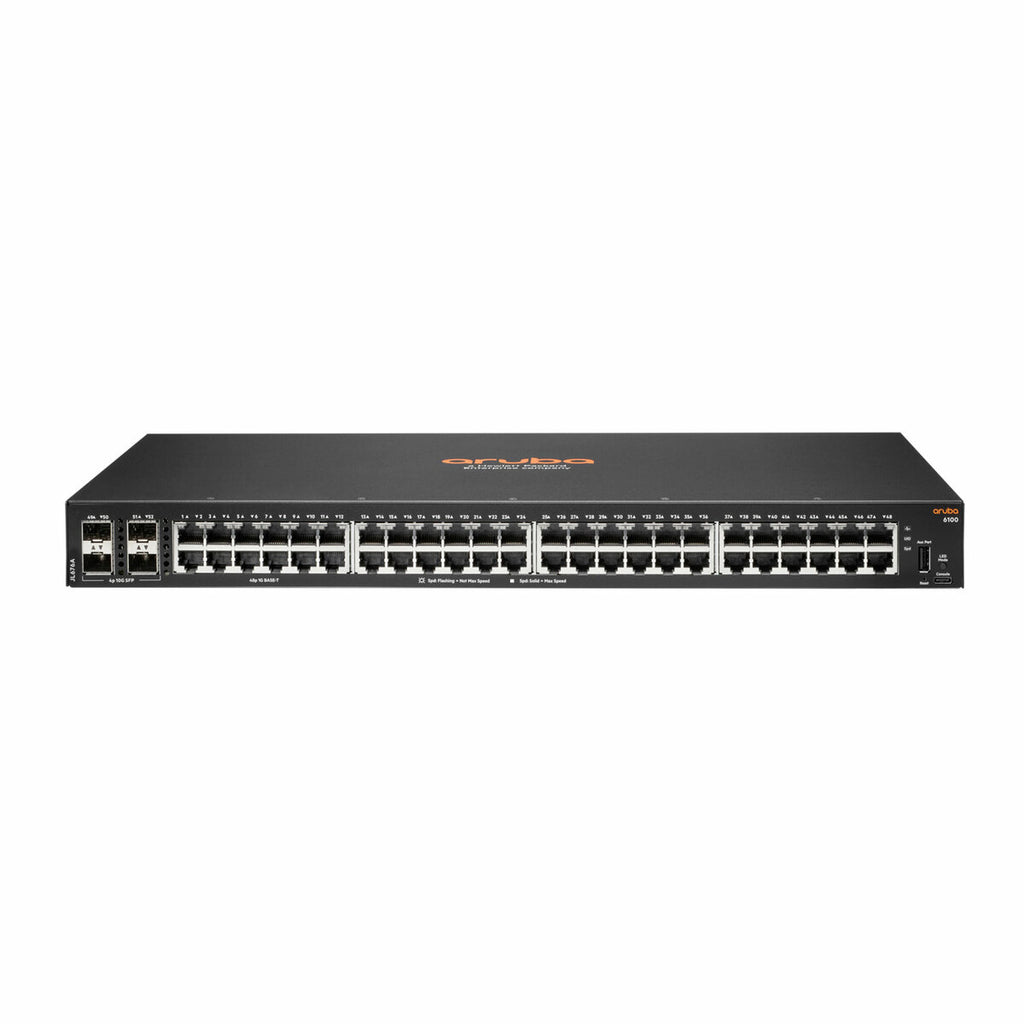

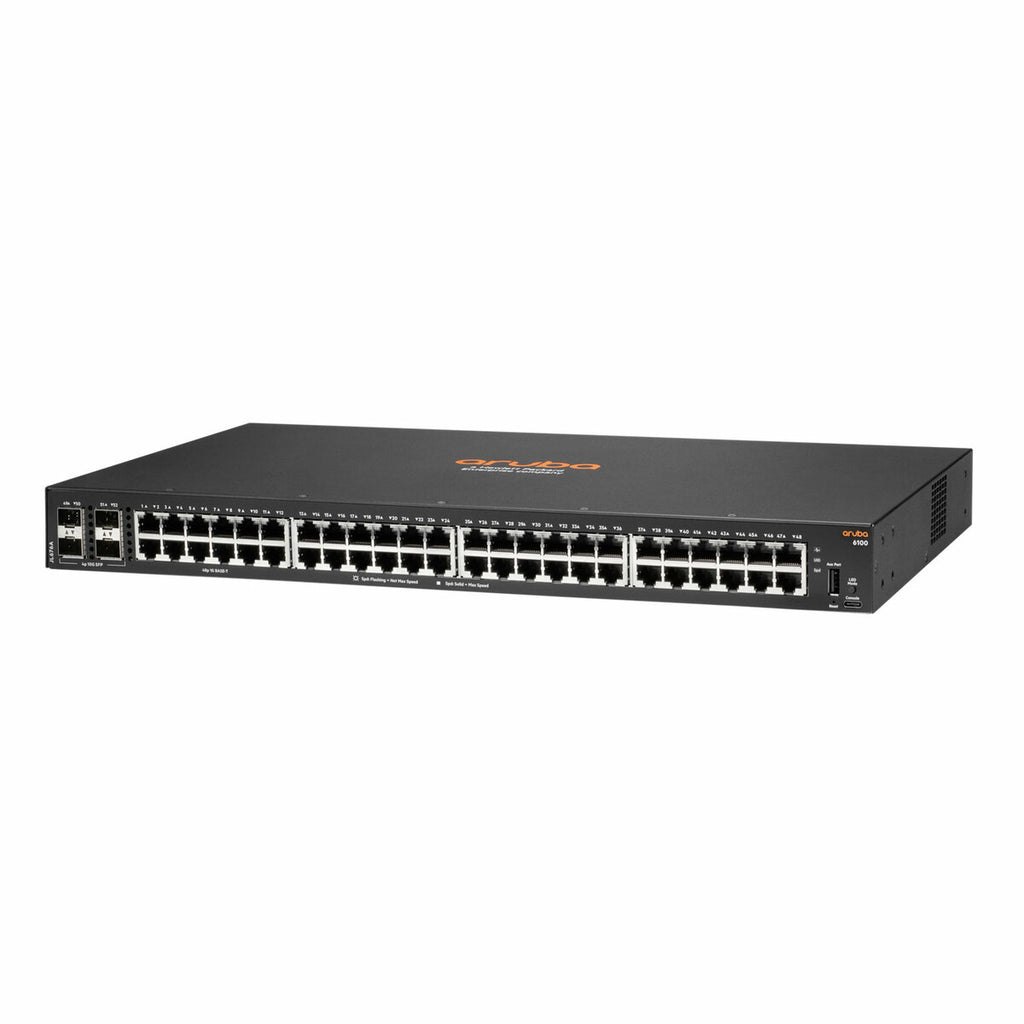

The HPE Aruba Networking CX 6100 48G 4SFP+ Switch is an entry-level, fully managed Layer 2 switch built for enterprise branch offices, SMBs, and mid-market networks. Designed to deliver reliable, simple, and secure wired access, it supports today’s connectivity demands for IoT, mobile devices, and cloud-based apps.
This model features 48x 1GbE ports and 4x 1/10GbE SFP+ uplinks, ensuring high-speed data throughput and seamless network performance. The programmable AOS-CX operating system and a powerful Aruba ASIC enable consistent operation with minimal latency.
It simplifies deployment and management with support for Aruba Central, Multi-Edit Software, a Web GUI, and CLI, making it a solid solution for future-ready wired access. With robust QoS, static routing, and no software licensing required, it provides excellent value and operational ease.
| Specification | Details |
|---|---|
| SKU | JL676A#ABA |
| Product Type | Layer 2 Managed Switch |
| Ports | 48 × 10/100/1000BASE-T, 4 × 1/10GbE SFP+ |
| Switching Capacity | 176 Gbps |
| Throughput | 98.6 Mpps |
| Latency | 1 Gbps: 1.9 μSec, 10 Gbps: 1.8 μSec |
| Memory | 4 GB DDR3 |
| Storage | 16 GB eMMC |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| PoE Capability | Up to 370W (Model Dependent) |
| Airflow Direction | Side-to-side |
| Management Options | Web GUI, CLI, Aruba Central, REST API |
| Power Input | 100–127 VAC / 200–240 VAC |
| Max Power Consumption | 44.2W |
| Form Factor | Rack-mountable 1U |
| Dimensions (WxDxH) | 17.4 x 9.74 x 1.73 in (44.2 x 24.7 x 4.4 cm) |
| Weight | 7.54 lbs (3.42 kg) |
| Software Licensing | None required |
| QoS / Features | Static routing, ACLs, sFlow, IPv6, colorless ports |
