Description

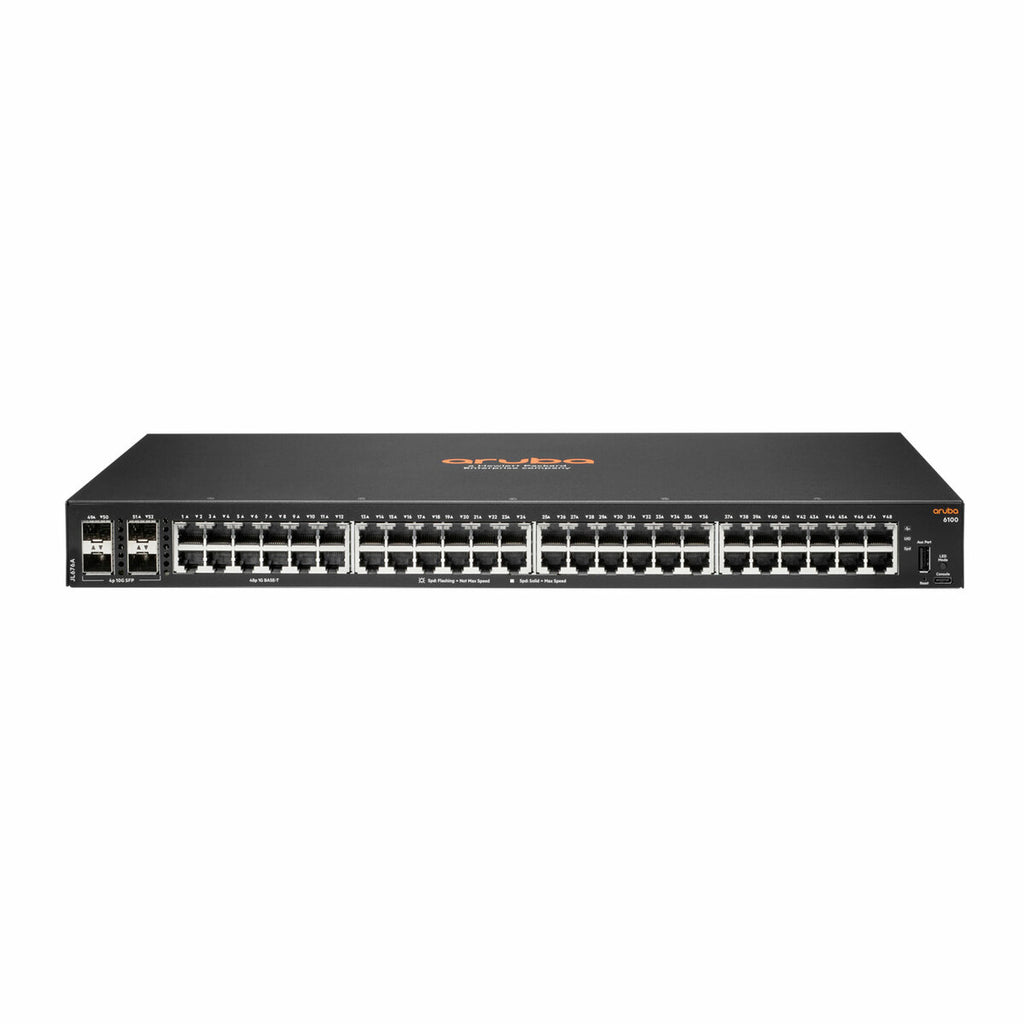

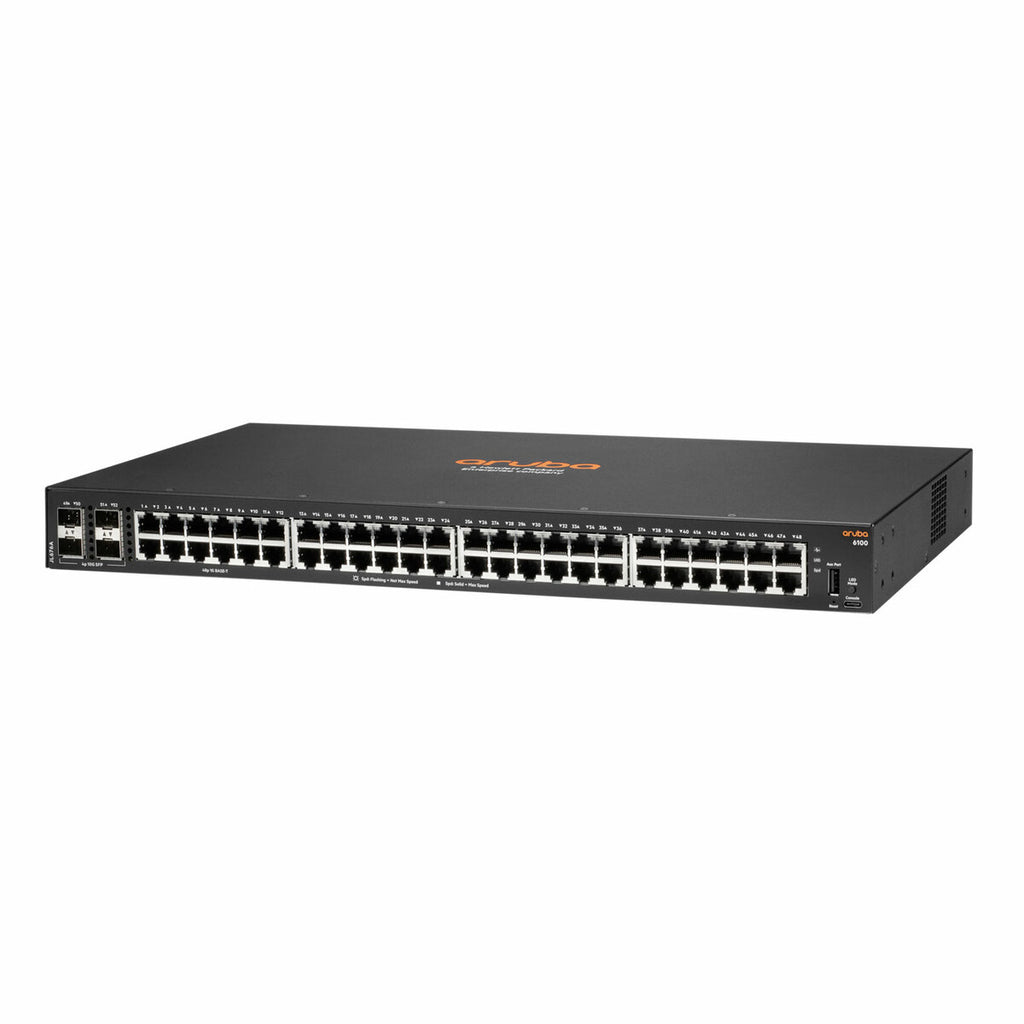

The HPE Aruba Networking CX 6100 48G 4SFP+ Switch (JL676A#B2B) is part of a modern, fully managed Layer 2 switch series designed to meet the growing demands of SMBs, branch offices, and enterprise edge environments. With 48 Gigabit Ethernet ports and 4 high-speed 1/10GbE SFP+ uplinks, it delivers reliable wired access for IoT, cloud, and mobile-ready networks.
Powered by the HPE Aruba Networking AOS-CX operating system, this switch provides a consistent and simplified operator experience with enhanced visibility and automation. It supports static routing, ACLs, QoS, IPv6, and optional Power over Ethernet (PoE) capabilities, all without the need for additional licensing.
Built with enterprise-grade hardware and side-to-side airflow, it supports rack-mountable deployments and offers low-latency performance, centralized management options, and future-ready programmability via REST APIs.
| Specification | Details |
|---|---|
| Product Number | JL676A#B2B |
| Switch Type | Managed Layer 2 Switch |
| Ports | 48x 10/100/1000BASE-T, 4x 1G/10G SFP+ uplinks |
| Airflow Direction | Side-to-side |
| Mounting | Rack-mountable (1U) |
| Latency | 1 Gbps: 1.9 µs, 10 Gbps: 1.8 µs |
| Throughput | 98.6 Mpps |
| Switching Capacity | 176 Gbps |
| Processor | Dual-Core ARM Cortex-A9 @ 1016 MHz |
| Memory | 4 GB DDR3 RAM, 16 GB eMMC storage |
| PoE Capability | Not applicable (non-PoE model) |
| Power Consumption | Max: 44.2W |
| Input Voltage | 100–127 VAC / 200–240 VAC |
| Dimensions (W x D x H) | 17.4 x 9.74 x 1.73 in (44.2 x 24.7 x 4.4 cm) |
| Weight | 7.54 lbs (3.42 kg) |
